FlexGain PLEX - V.35 interface

User’s manual FlexGain Plex, V2
Version 1.3
98 from 99

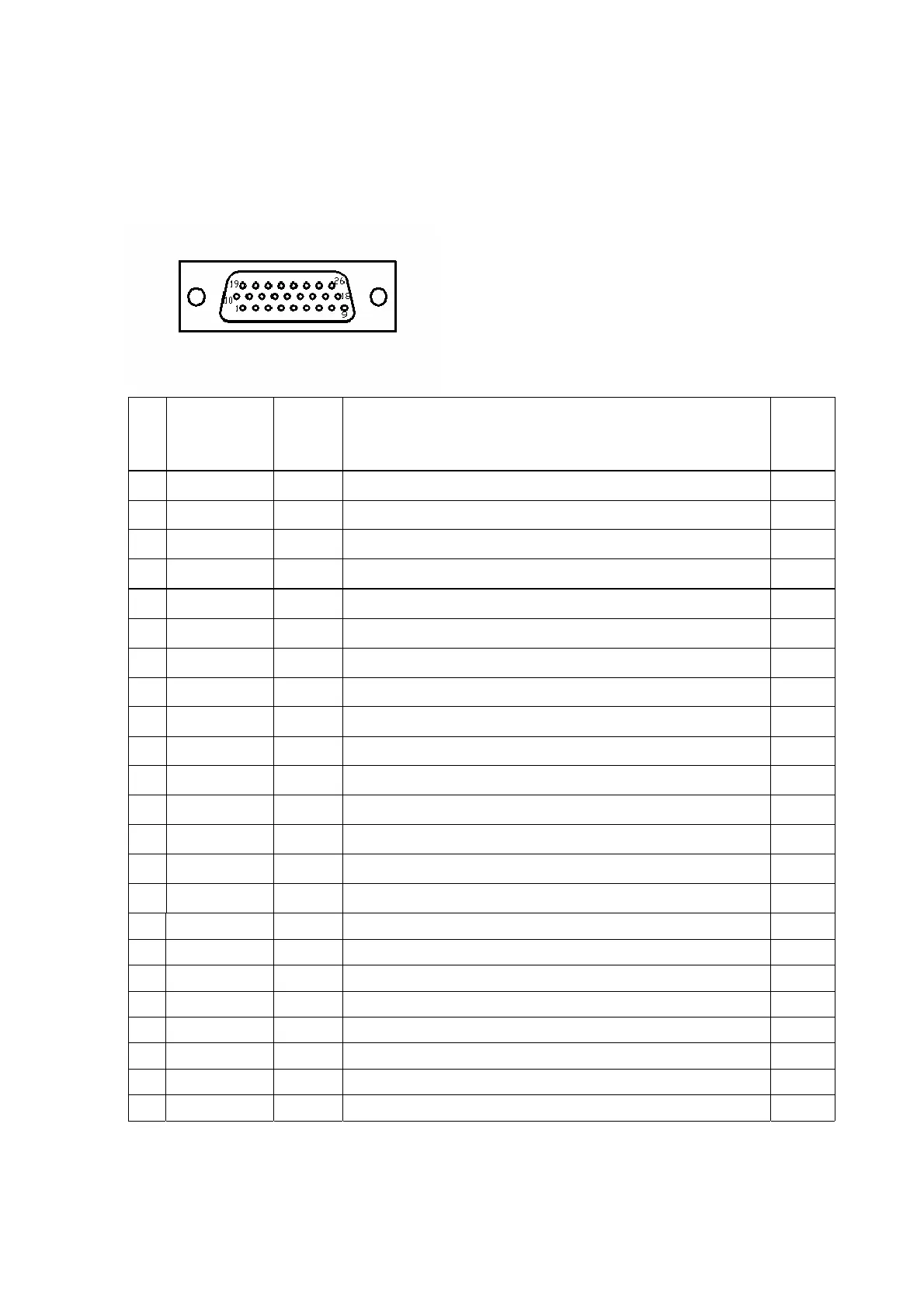

V.35 interface.
Type: DB-26 (female). Available in all models.
Pin Signal
Circuit
number
Description
Notation
accordi
ng to
M34
1 CTS 106 CLEAR TO SEND D
2 RTS 105 REQUEST TO SEND C
3 RDL 140 REMOTE DIGITAL LOOPBACK N
4 TD 103A TRANSMIT DATA (A) P
5 TD
103B
TRANSMIT DATA (B) S
6 EXC
113B TERMINAL TIMING (B) W
7 EXC
113A TERMINAL TIMING (A) U
8 RD
104A RECEIVE DATA (A) R
9 RD
104B RECEIVE DATA (B) T
10 DSR
107 DATA SET READY E
11 TEST
142 TEST MODE NN
12 DTR
108 DATA TERMINAL READY H
13 LL
141 LOCAL LOOPBACK L
14 NC
- Not used -
15 NC
- Not used -
16 NC - Not used -
17 NC - Not used -
18 NC - Not used -
19 DCD 109 DATA CARRIER DETECT F
20 GND 102 SIGNAL GROUND B
21 GND 102 SIGNAL GROUND B
22 GND 102 SIGNAL GROUND B
23 RC 115A RECEIVE CLOCK (A) V
