FLUXUS WD100, WD200 6 Installation of the Transmitter
26 UMFLUXUS_F5WDV1-1EN, 2016-04-08

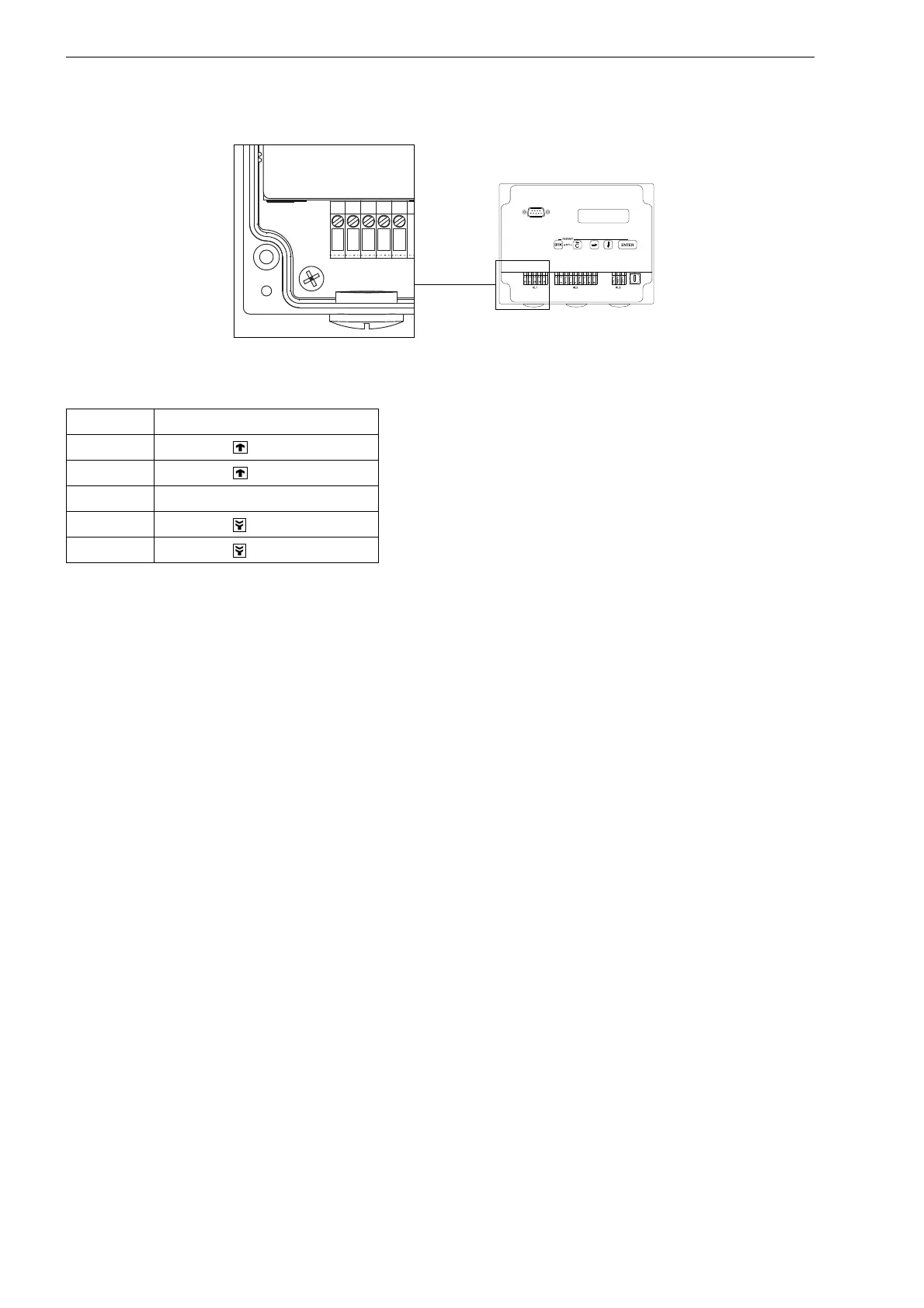

Fig. 6.6: Terminals of the transmitter
Tab. 6.1: Terminal assignment of FLUXUS WD100, WD200
terminal connection
10 transducer (core)
11 transducer (inner shield)
12 not connected
13 transducer (internal shield)
14 transducer (core)
1 0 1 1 1 2 1 3 1 4
