7 Installation of the Transducers FLUXUS WD100, WD200
UMFLUXUS_F5WDV1-1EN, 2016-04-08 37
• Position the metal spring (if mounted), the ratchet clasp and the tension strap clamp:
– On a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible.
– Mount the metal spring (if necessary) on the opposite side of the tension strap clamp.
• Insert the long end of the tension strap into part 3 of the ratchet clasp (see Fig. 7.14).
• Tighten the tension strap.
• Cut off the protruding tension strap (see Fig. 7.15).
• Tighten the screw of the ratchet clasp.
• Repeat the steps for the second tension strap.
• Put the rail on the tension strap clamps (see Fig. 7.16).
• Fix the rail to the tension strap clamps with the screws.
• Tighten the screws.

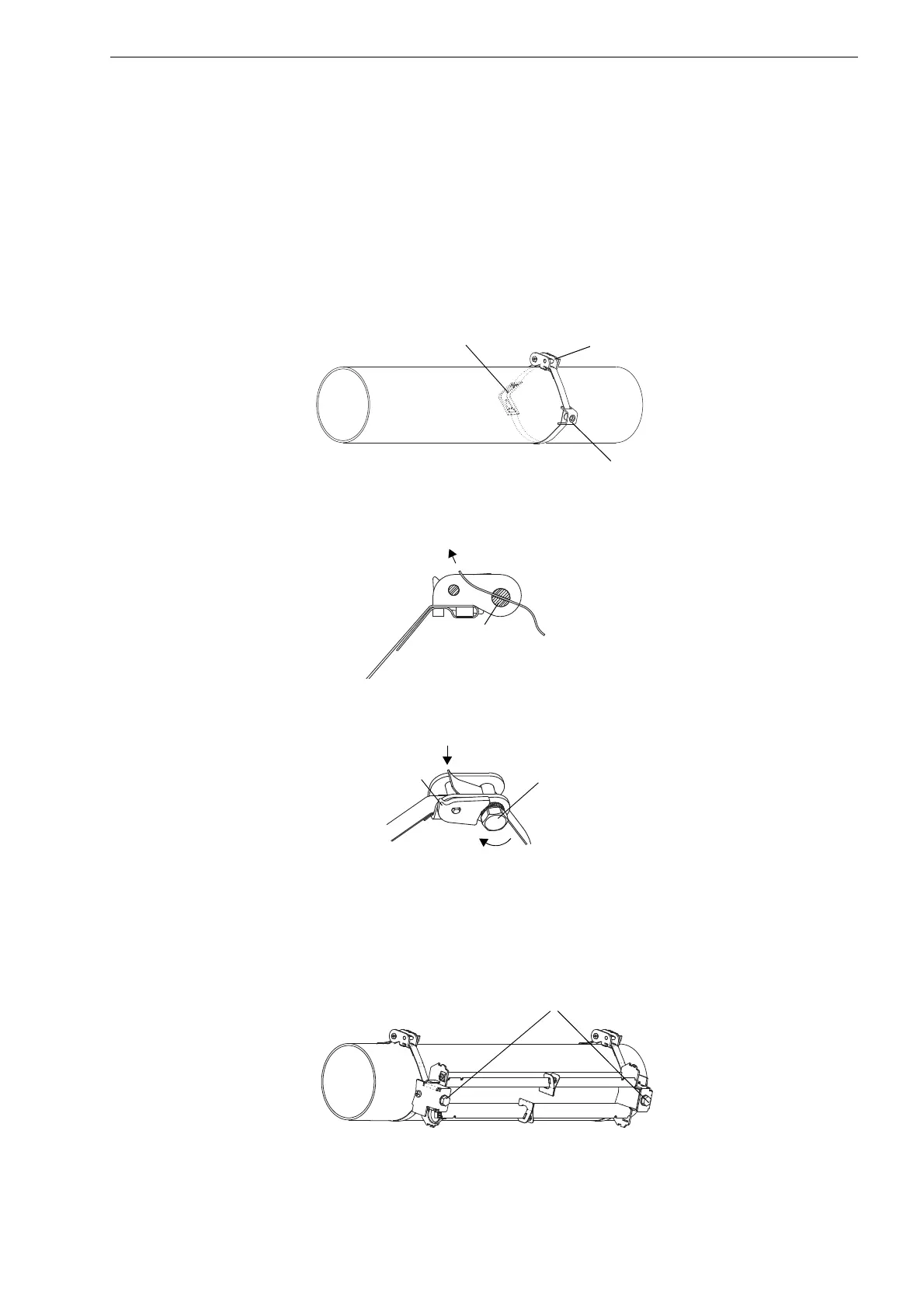

Fig. 7.13: Tension strap with the metal spring, the ratchet clasp and the tension strap clamp on the pipe
Fig. 7.14: Ratchet clasp with tension strap
Fig. 7.15: Ratchet clasp with tension strap
Fig. 7.16: Rail on the pipe
tension strap clamp
metal spring
ratchet clasp
3
lever
sense of rotation
cut
screw of the clasp
screws
