PIOX S70x 13 Data Logger and Transmission of Data
126 UMPIOX_S7V4-6-3EN, 2018-10-10
13.2.8 Structure of the Data
The header is transmitted at the beginning of the measurement. The first 4 lines contain general information about the
transmitter and the measurement. The following lines contain the parameters of each channel.
Stop of the transmission of data

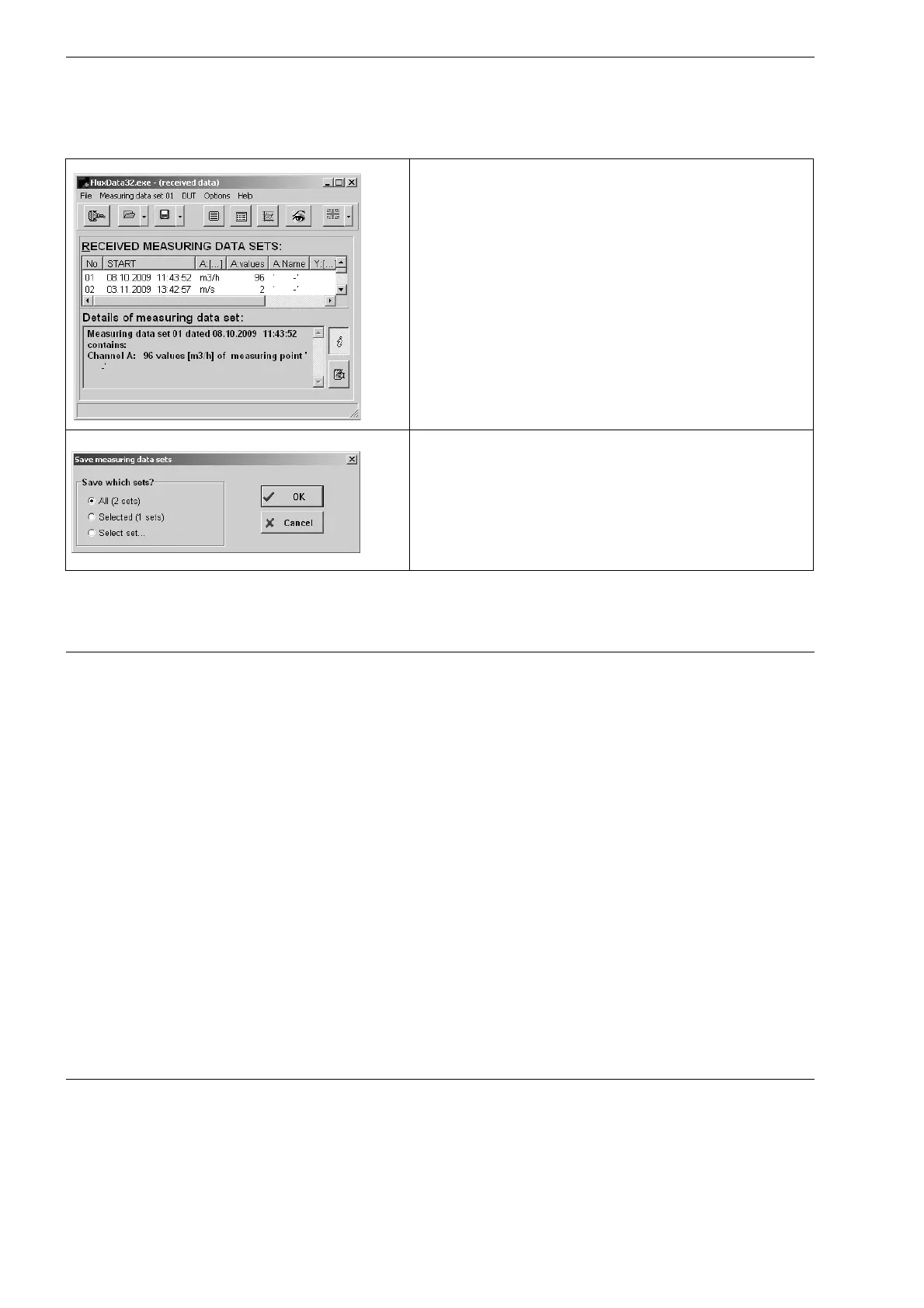

Select the menu: File > Save.
Select the series of measurement to be stored. Click on OK.
Select the path on which the data should be stored. Enter the
file name. Click on Save.
The file will be stored with the file extension .flx.
Example: \DEVICE : S70X -XXXXXXXX
\MODE : ONLINE
DATE : 2011-01-09
TIME : 19:56:52
Par.Record
Meas.Point No.: : A:F5050
Pipe
Outer Diameter : 60.3 mm
Wall Thickness : 5.5 mm
Roughness : 0.1 mm
Pipe Material : Carbon Steel
Lining : WITHOUT LINING
Medium : Water
Medium Temperat. : 38 C
Fluid pressure : 1.00 bar
Transducer Type : xxx
Sound Path : 3 NUM
Transd. Distance : -15.6 mm
Damping : 20 s
Full-Scale Val. : 4.50 m3/h
Physic. Quant. : Volume flow
Unit Of Measure : [m3/h]/[m3]
Numb.Of Meas.Val : 100
