6 Installation PIOX S70x
UMPIOX_S7V4-6-3EN, 2018-10-10 37
Put the covers with the transducers on the rail.
Correct the transducer distance, if necessary (see section 9.6.1 and 9.6.2).
Tighten the screws of the cover (see Fig. 6.35).
6.4.4 Mounting with Variofix C
When measuring in reflection arrangement, one transducer mounting fixture is mounted on the side of the pipe (see Fig.
6.36).
When measuring in diagonal arrangement, two transducer mounting fixtures are mounted on the opposite sides of the
pipe (see Fig. 6.37).
In the following, the mounting of one transducer mounting fixture is described (transducers in reflection arrangement).

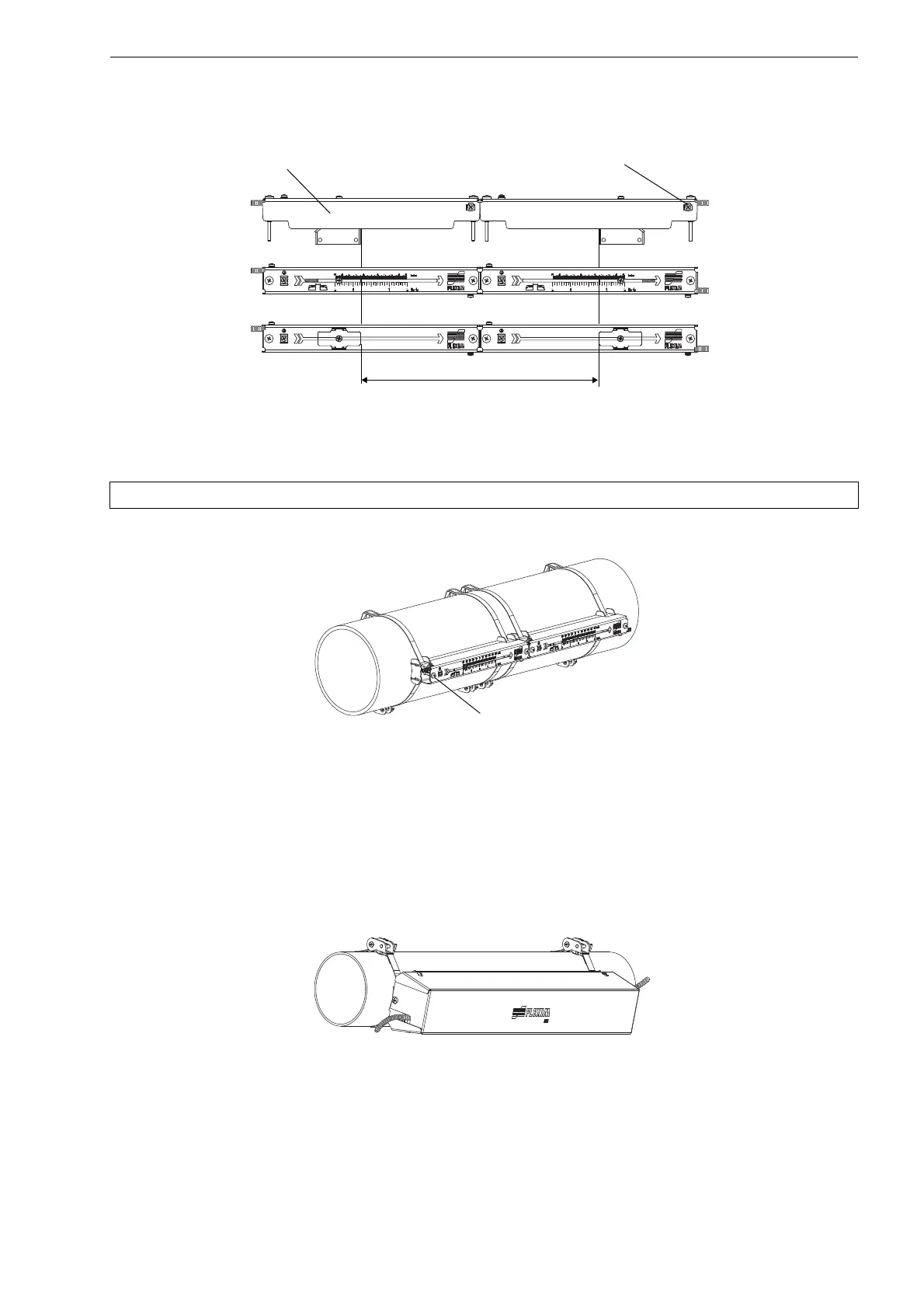

Fig. 6.34: Adjustment of the transducer distance
Note! Make sure that the coupling foil remains on the contact surface of the transducers.
Fig. 6.35: Transducers with Variofix L on the pipe
Fig. 6.36: Transducer mounting fixture Variofix C (reflection arrangement)
transducer distance
cover
strain
relief
clamp
screws of
the cover
