Description of the machine
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany

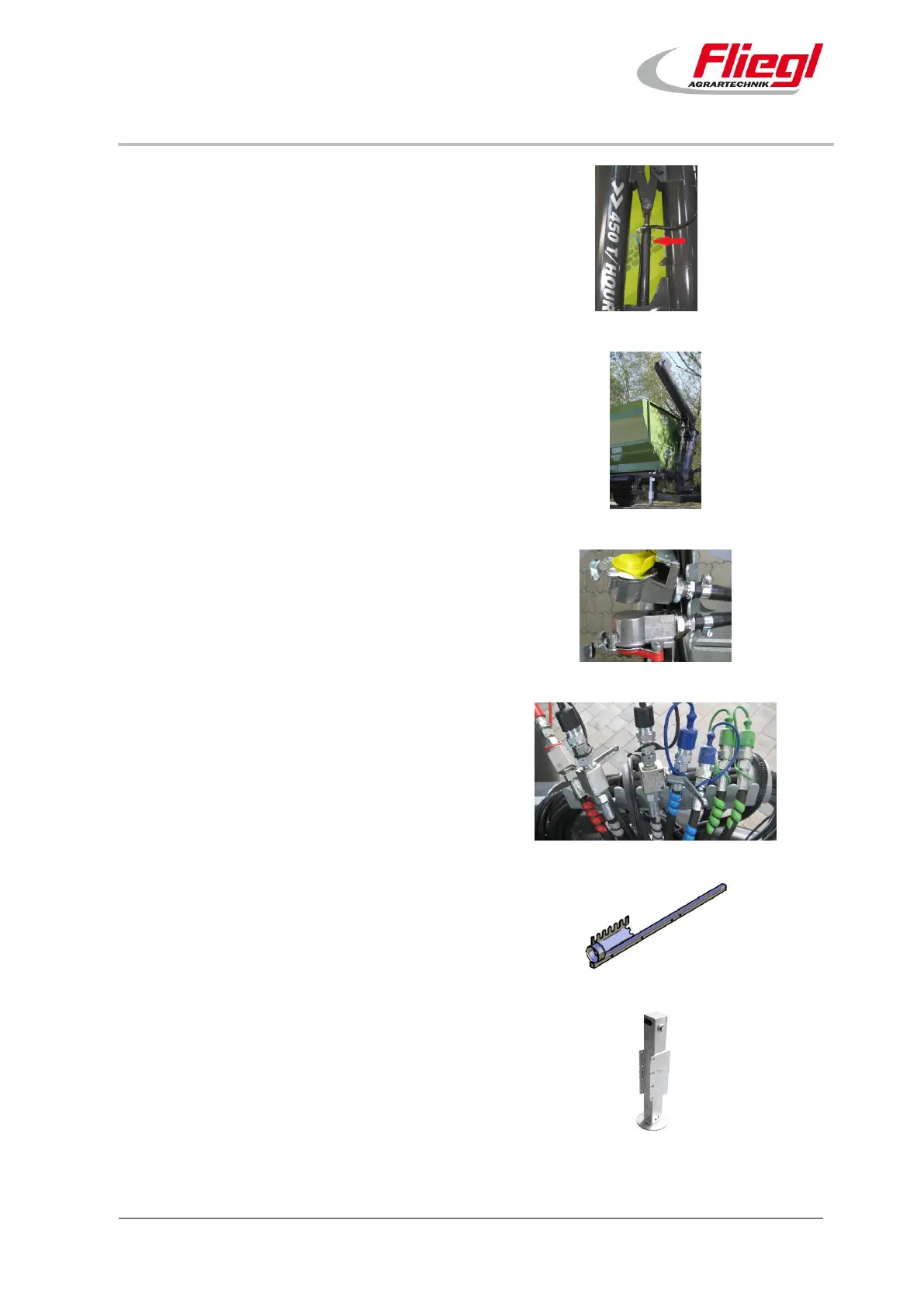

Item 3 – hydraulic cylinder
The discharge tube is extended and retracted via a
dual-action hydraulic cylinder. This cylinder is
operated by an additional hydraulic cylinder with the
following connections:
- Extend discharge cylinder
- Retract discharge cylinder
Fig. 9: Assembly – item 3
Item 4 – discharge tube
The load is transferred to a different transport
vehicle via this tube.
Fig. 10: Assembly – item 4
Item 5 – compressed air connections
The compressed air supply for the compressed air
brake is connected on the towing vehicle.
Fig. 11: Assembly – item 5
Item 6 – hydraulic connectors
Individual hydraulic connections are provided for all
hydraulic functions.
A description of the coloured markings is provided
in section 7.1.3.
Fig. 12: Assembly – item 6
Item 7 – hose holder
When the trailer is uncoupled, the connections are
stored here.
Fig. 13: Assembly – item 7
Item 8 – supporting mechanism
The supporting mechanism serves as a front
support when parking the ULW.
Fig. 14: Assembly – item 8
