Fliegl ULW - Preparation and Setup

ULW transfer trailer
Preparation and setup
Fliegl Agrartechnik GmbH, 84453 Mühldorf am Inn, Germany
39 of 85
Tandem

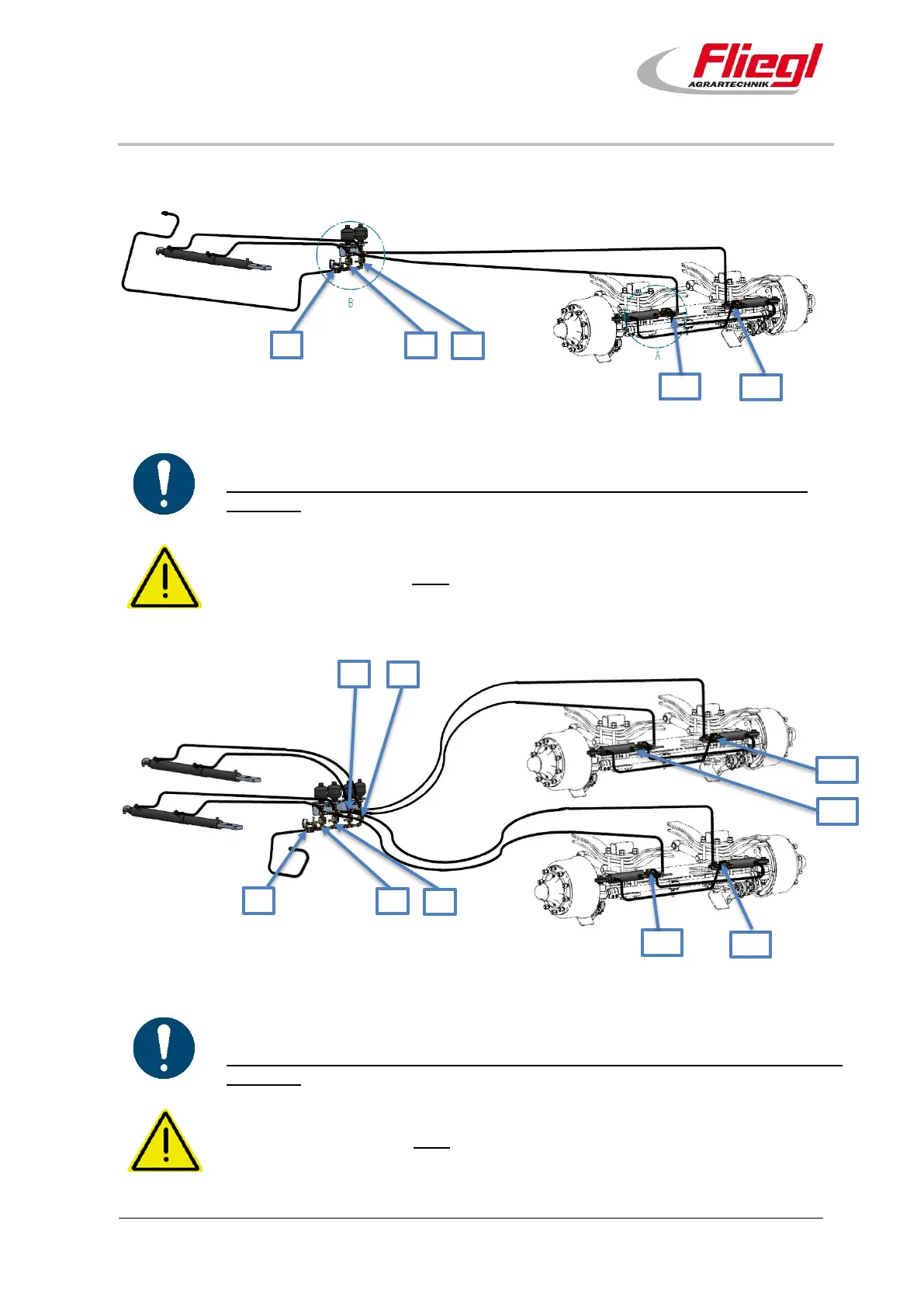

Fig. 30: Tandem steering axle
L1 = steering axle stopcock L2 = steering axle stopcock
The two stopcocks (L1, L2) on the steering axle must be opened during driving
operation.
Attention! The trailer is delivered with the stopcocks closed.
Stopcocks L1, L2, L3, L4 must be opened before commencing travel to prevent
damage to the hydraulic cylinders.
Tridem
Fig. 31: Tridem steering axle
L1 = steering axle stopcock L2 = steering axle stopcock
L3 = steering axle stopcock L4 = steering axle stopcock
The 4 stopcocks (L1, L2, L3, L4) on the steering axle must be opened during driving
operation.
Attention! The trailer is delivered with the stopcocks closed.
Stopcocks L1, L2, L3, L4 must be opened before commencing travel to prevent
damage to the hydraulic cylinders.
