Checking the working settings
Check the steering angle of the axles (must be
adjusted if necessary); check for collision on
the spring assembly, air bellows, frame or tyre
profile.
The steering angle for the forced steering must
be re-adjusted every time the towing vehicle is
changed.
Tandem
1st axle = rigid
2nd axle = steered
Tridem
1st axle = steered
2nd axle = rigid
3rd axle = steered

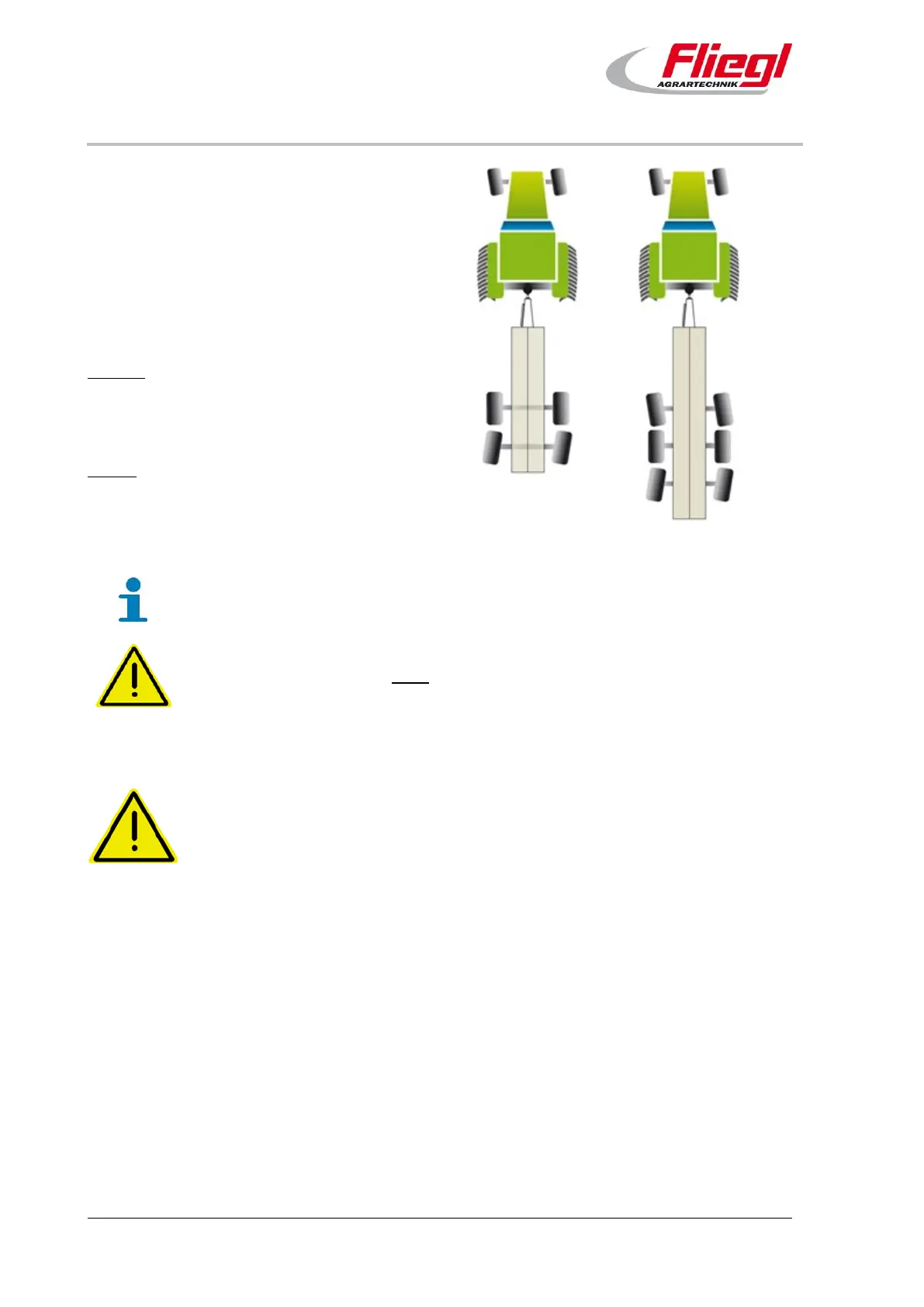

Fig. 32: Steering angle
• Daily system pressure check
• Complete adjustment for every towing vehicle change
Attention! The trailer is delivered with the stopcocks closed.
Stopcocks L1, L2 [L3, L4] must be opened before commencing travel to
prevent damage to the hydraulic cylinders.
- At maximum steering angle, the tyres must not touch the frame or other
parts of the vehicle.
- Check the axle stops and adapt them to the tyre size if necessary.
- At maximum steering angle of the hydraulic cylinders with coupling
(52°), ensure sufficient space from the panelling on the outside and from
the flange coupling on the inside.
- The cylinder protection (on the side of the traction bar) must be checked
and adjusted for every towing vehicle type; if necessary, double the
cylinder protection until the wheels of the towing vehicle
(tractor) make contact at maximum steering angle.
