MACH COMMAND
AIRSPEED TAPE
(TAPE RASTER - GRAY)
ADI SPHERE
(RASTER - CYAN/BROWN)
FLIGHT PATH ANGLE SYMBOL
W/FPA ACCELERATION
(GREEN - NORMAL)
(AMBER - PARKED)
PITCH TAPE
ALTITUDE TAPE
(TAPE RASTER - GRAY)
ALTITUDE
ROLLING
DIGIT
WINDOW
ALTITUDE
PRESELECT
BUG
BAROMETRIC
CORRECTION
(IN/HPA)
VERTICAL
SPEED
POINTER
(WHITE/RED)
VERTICAL
SPEED
DIGITAL
READOUT
(WHITE/RED)
VERTICAL
SPEED
INDICATOR
SCALE
HEADING BUG
OUT-OF-VIEW
ARROW
HEADING SCALE
CRS/DTRK
DEVIATION BAR
(GREEN/WHITE/
YELLOW)
AIRCRAFT SYMBOL
TO/FROM TRIANGLE
(GREEN/WHITE/
YELLOW)
CRS/DTRK
POINTER
(GREEN/WHITE/
YELLOW)
CURRENT HEADING
DIGITAL DISPLAY
IAS DIGITAL
READOUT
(DIGITS - WHITE/
AMBER/RED)
.8
AIRSPEED ROLLING
DIGITS WINDOW
(DIGITS - WHITE/
AMBER/RED)

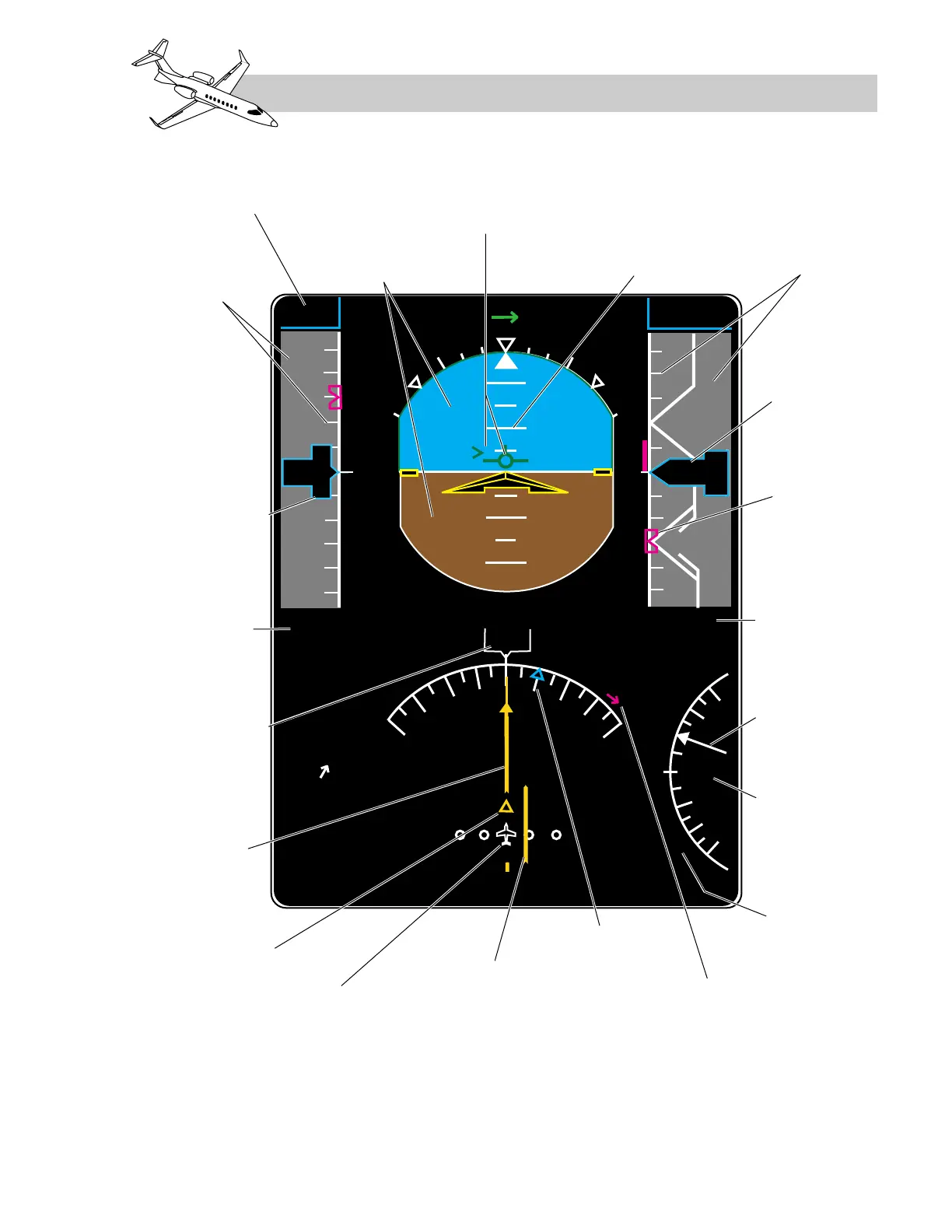

Figure 16-33. Primary Flight Display/ARC Display Format
