FlightSafety LEARJET 45 - Page 453

LEARJET 45 PILOT TRAINING MANUAL
16-69
FOR TRAINING PURPOSES ONLY
FlightSafety
international
TGT
TX
50
KDVT
LL01
PBD01
PLAB2
FMS1
LL01
12.5 NM
12 MIN
300 TAS
+15 SAT
245 GSPD
25
N
50
230°
40.0
DESIGNATOR
LINE
(DASHED CYAN)
DESGNATOR
BOX
(CYAN)
RTN RCL PAG
M/P
RNG
ENTSKP
CHECKLIST
Honeywell
1 NORMAL
PROCEDURES
2 ABNORMAL
PROCEDURES
3 EMERGENCY
PROCEDURES
MASTER INDEX 1/1

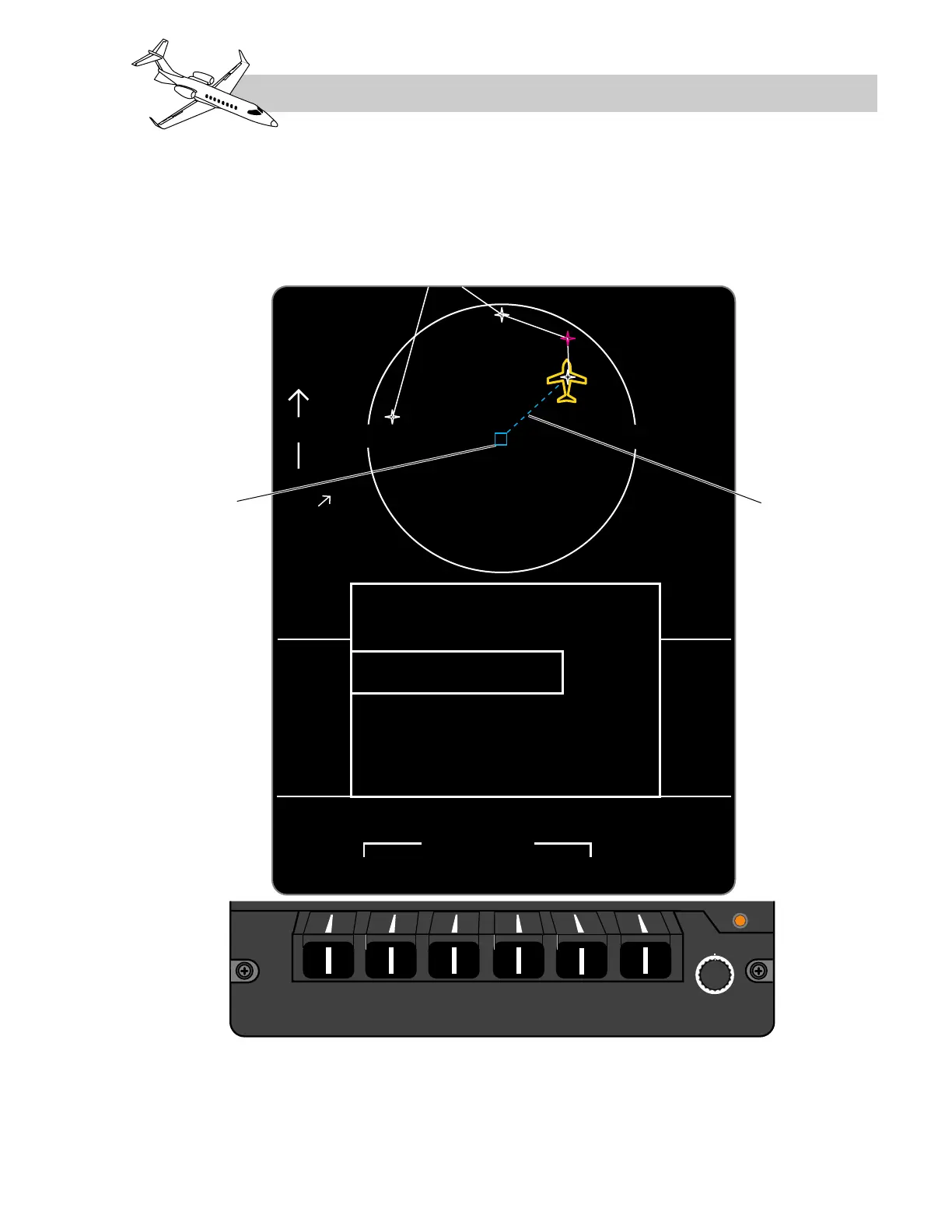

Figure 16-40. MFD Format – PLAN with Checklist
