Setup->Pan and Tilt->Status

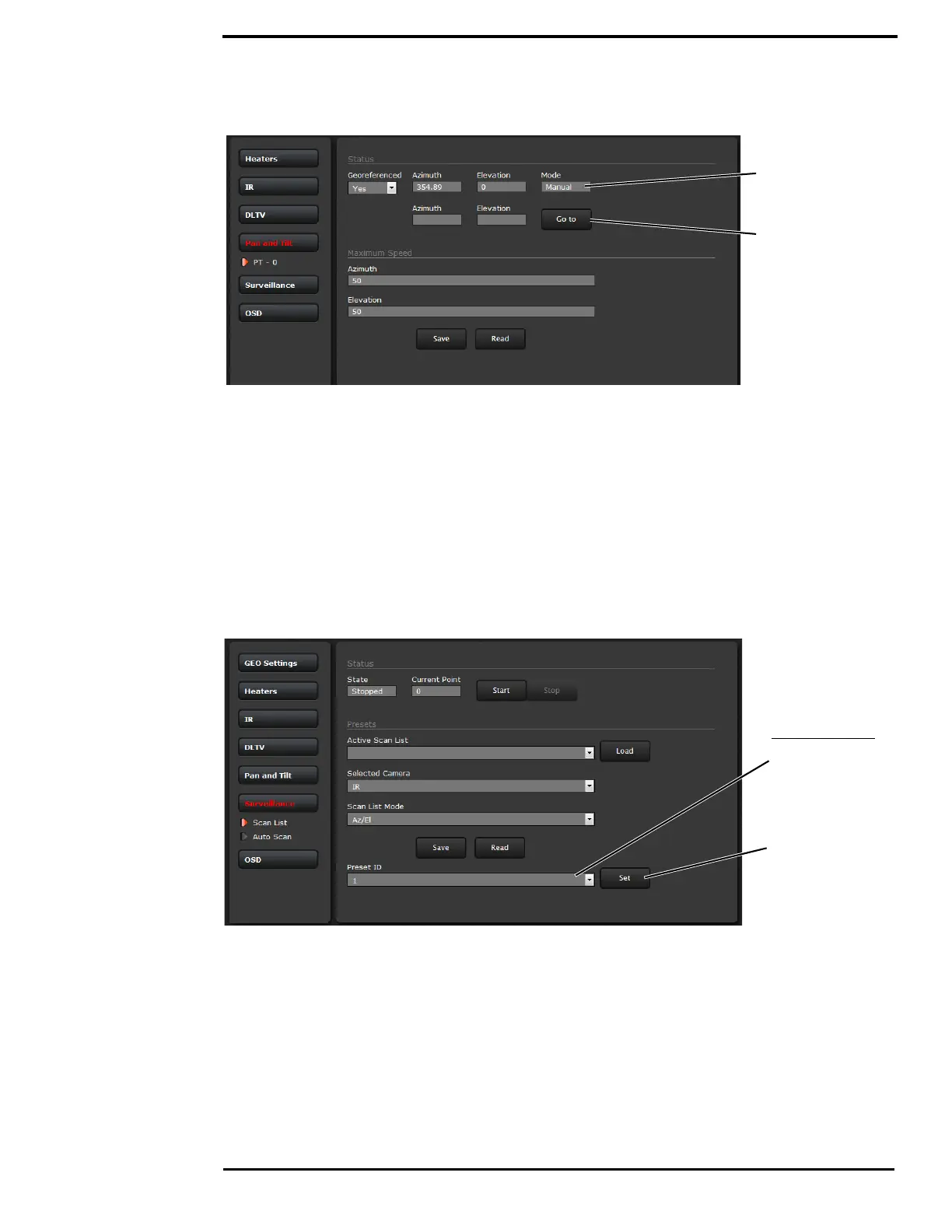

Icons on the video show the direction the camera is facing in relation to an outline of a ship. The
Pan and Tilt status shows the azimuth and elevation of the current direction of the camera.
The azimuth angle is measured from 0 to 360 starting to starboard from the bow of the ship outline
icon on the video. The elevation angle is measured from horizontal; minus values are down.
positive values are up. Both the reported angles and the Go to angles take into consideration the
Offsets. See “Azimuth and Elevation Offsets” on page 35.
The Azimuth “0” direction should be directly toward the front of the vessel; the elevation may be
set to the horizon or another preferred reference. The azimuth and elevation offsets can be set
using the OSD menu. Refer to the M400 Operator’s Manual.
Setup->Surveillance->Scan List
To move the camera
enter coordinates,
click Go to.
Reported direction
coordinates, updated
in real time.
Click Set,
select Preset ID
position camera,
To setup Presets:
then Save
To Next Page
