FLIR T1020 User Manual

3,85in
97,7mm
2,01in
51mm
3,4in
86,4mm
5,25in
133,2mm
1,57in
39,8mm
3,3in
83,8mm
1,47in
37,3mm
Battery Charger
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
6(7)
T128849

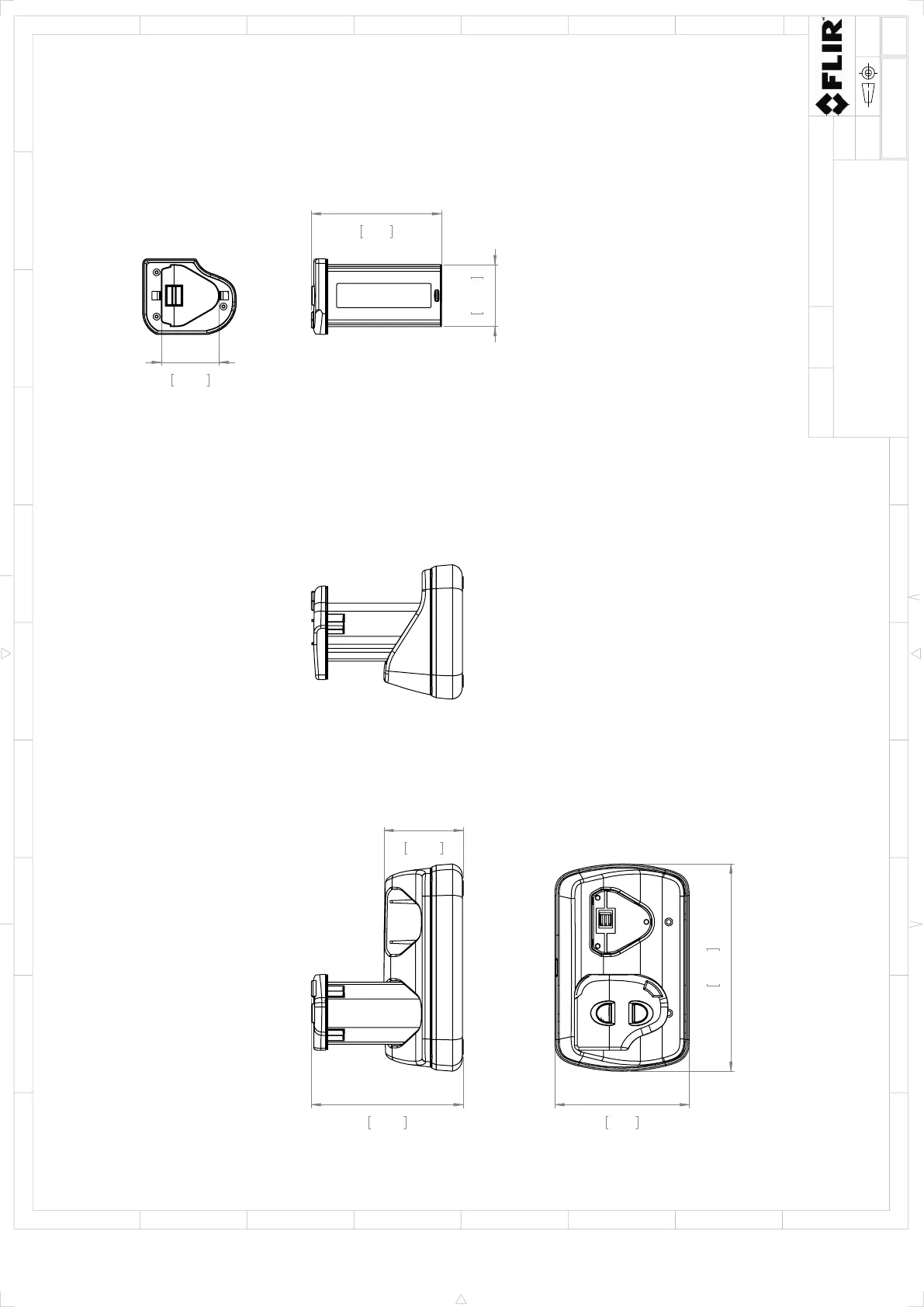

Basic dimensions FLIR T10xx
JOTA
2015-09-17
R&D Thermography
Modified
1 2 3 4 5 6 7 8 9 10
A B
C D
E
F
G
H
1 32 54
C
F
B
D
G
E A
6
Size
D
1:2
Scale
© 2012, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
-

FLIR T1020 Specifications

General

Resolution	1024 × 768 pixels
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Laser Pointer	Yes
Wi-Fi	Yes
Image Frequency	30 Hz
Detector Pitch	17 µm
Digital Zoom	1-8x continuous
Video Recording	Yes
Storage Media	SD card
Spectral Range	7.5 – 14 µm
Temperature Range	-40 °C to +2000 °C (-40 °F to +3632 °F)
Field of View	28° x 21°
Display	4.3 in LCD touchscreen, 800 × 480 pixels
Focus	Motorized and manual
Image Modes	Thermal, visual, MSX
Operating Temperature	-15 °C to +50 °C
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Connectivity	USB 2.0, HDMI
Image Storage	JPEG
Image Formats	JPEG
Thermal Sensitivity	<20 mK at 30°C
