Camera parts
10
3. Laser pointer.
Note The laser pointer may not be enabled in all markets.
4. Infrared lens.
5. Camera lamp.
6. Digital camera.
7. Focusing ring.
8. Programmable button
.
9. Button to operate the laser pointer.

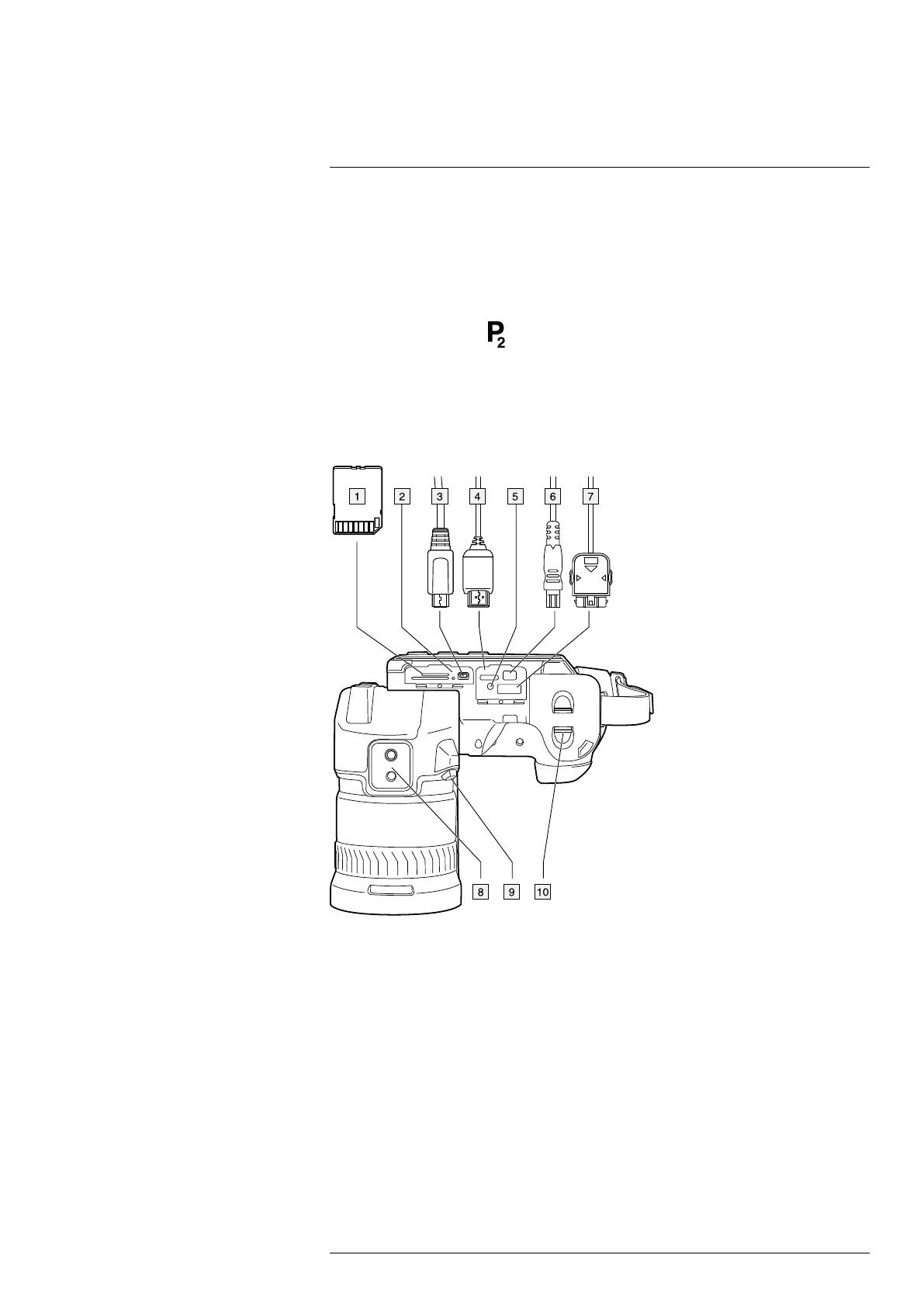

10.3 View from the bottom
10.3.1 Figure
10.3.2 Explanation
1. Memory card.
2. LED indicator showing that the memory card is busy.
Note
• Do not eject the memory card when this LED is flashing.
• Do not connect the camera to a computer when this LED is flashing.
3. USB Micro B cable (to connect the camera to a computer).
4. HDMI cable (for digital video output).
5. Battery condition LED indicator.
6. Power supply cable (to power the camera and charge the battery).
7. High-speed interface cable.
8. Tripod mount.
9. Button to release the lens.
10. Latch to release the battery.
#T559954; r. AP/42311/42335; en-US
20

FLIR T1020 Specifications

General

Resolution	1024 × 768 pixels
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Laser Pointer	Yes
Wi-Fi	Yes
Image Frequency	30 Hz
Detector Pitch	17 µm
Digital Zoom	1-8x continuous
Video Recording	Yes
Storage Media	SD card
Spectral Range	7.5 – 14 µm
Temperature Range	-40 °C to +2000 °C (-40 °F to +3632 °F)
Field of View	28° x 21°
Display	4.3 in LCD touchscreen, 800 × 480 pixels
Focus	Motorized and manual
Image Modes	Thermal, visual, MSX
Operating Temperature	-15 °C to +50 °C
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Connectivity	USB 2.0, HDMI
Image Storage	JPEG
Image Formats	JPEG
Thermal Sensitivity	<20 mK at 30°C
