FLIR T1020 User Manual

Handling the camera13

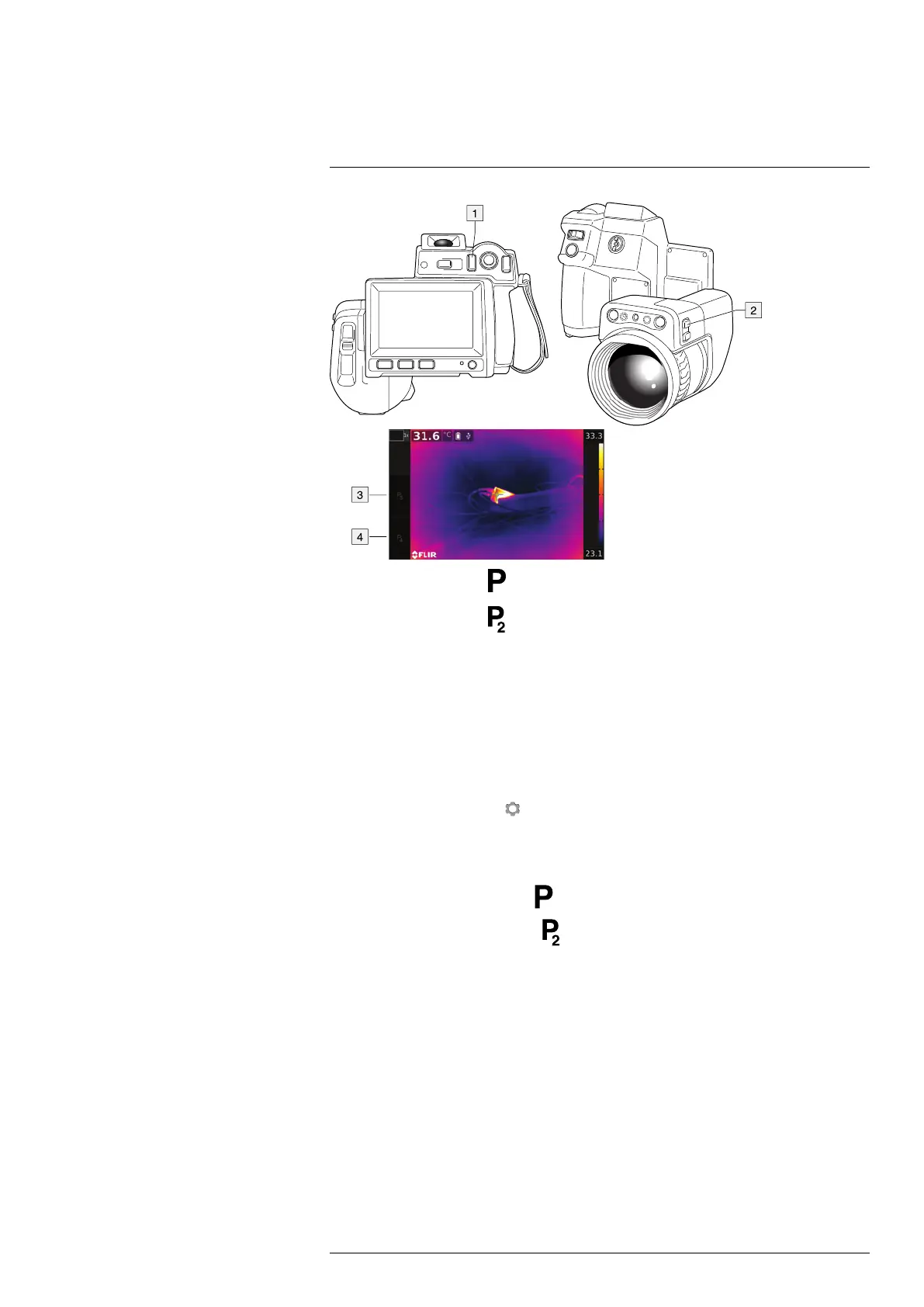

1. Programmable button .
2. Programmable button
.
3. Programmable button P3.
4. Programmable button P4.
You can assign different functions to the programmable buttons. For a complete list of
functions, see section 25.1.4 Programmable buttons, page 80.
13.11.2 Procedure
Follow this procedure:
1. Push the joystick to display the menu system.
2. Use the joystick to go to
(Settings).
3. Push the joystick to display the Settings menu.
4. Select Programmable buttons and push the joystick.
5. Select one of the buttons and push the joystick:
• P Button: Hardware button
.
• P2 Button: Hardware button
.
• P3 Button (on screen): Software button P3 on the screen.
• P4 Button (on screen): Software button P4 on the screen.
6. Select one of the functions and push the joystick.
13.12 Using the camera lamp as a flash
13.12.1 General
The camera lamp can be used as a flash for the digital camera. When the flash function
is activated, the camera lamp will flash when an image is saved by pushing the Save but-
ton fully down.
#T559954; r. AP/42311/42335; en-US
34

FLIR T1020 Specifications

General

Resolution	1024 × 768 pixels
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Laser Pointer	Yes
Wi-Fi	Yes
Image Frequency	30 Hz
Detector Pitch	17 µm
Digital Zoom	1-8x continuous
Video Recording	Yes
Storage Media	SD card
Spectral Range	7.5 – 14 µm
Temperature Range	-40 °C to +2000 °C (-40 °F to +3632 °F)
Field of View	28° x 21°
Display	4.3 in LCD touchscreen, 800 × 480 pixels
Focus	Motorized and manual
Image Modes	Thermal, visual, MSX
Operating Temperature	-15 °C to +50 °C
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Connectivity	USB 2.0, HDMI
Image Storage	JPEG
Image Formats	JPEG
Thermal Sensitivity	<20 mK at 30°C
