Navigating the menu system
12
12.1 General

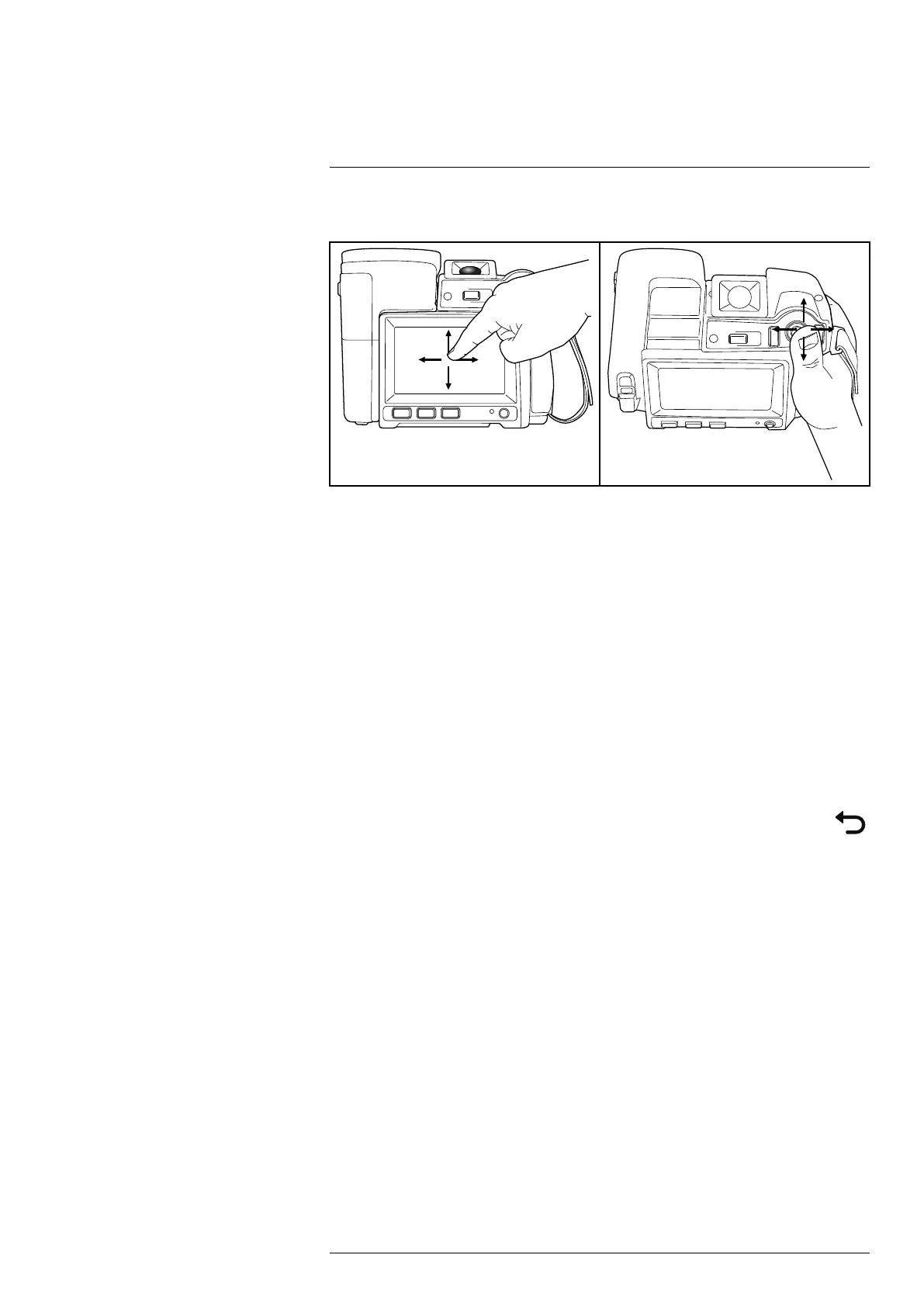

The figure above shows the two ways to navigate the menu system in the camera:
Using the index finger or a stylus pen specially designed for capacitive touch usage to
navigate the menu system (left).
Using the joystick to navigate the menu system (right) and the Back button.
You can also use a combination of the two.
In this manual, it is assumed that the joystick is used, but most tasks can also be carried
out using the index finger or a stylus pen.
12.2 Navigating using the joystick
You navigate the menu system by using the joystick and the Back button:
To display the menu system, push the joystick.
To navigate in menus, submenus, and dialog boxes, and to change values in dialog
boxes, move the joystick up/down or left/right.
To confirm changes and settings in menus and dialog boxes, push the joystick.
To leave dialog boxes and to go back in the menu system, push the Back button
.
#T559954; r. AP/42311/42335; en-US
