Handling the camera13

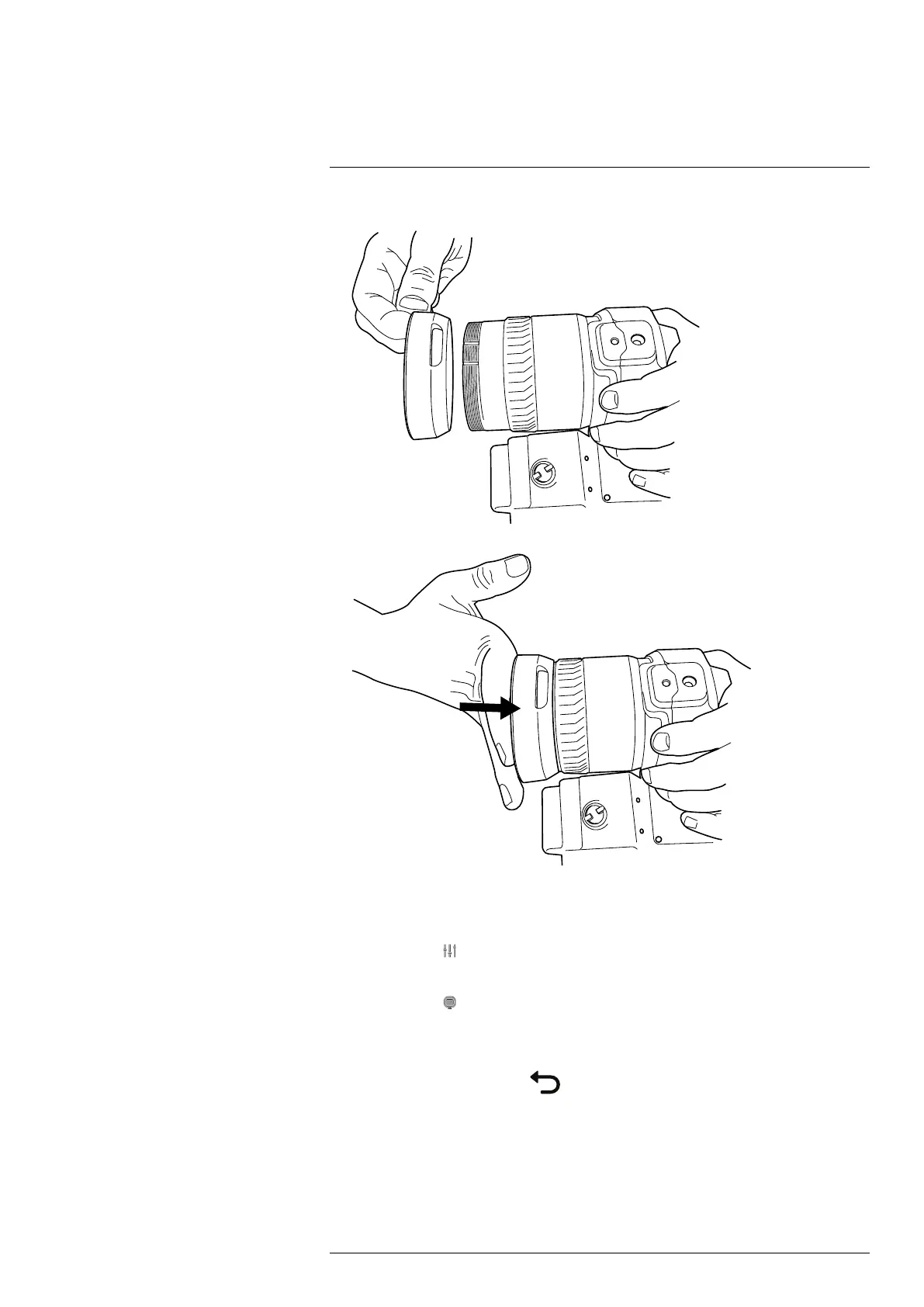

4. Align the rubber protection with the infrared lens.
5. Push the rubber protection into position.
6. Deactivate the global parameter External IR window compensation by doing the
following:
6.1. Push the joystick to display the menu system.
6.2. Select
(Measurement parameters) and push the joystick. This displays a
submenu.
6.3. Select
(External IR window compensation) and push the joystick. This
displays a dialog box.
6.4. In the dialog box, select Turn compensation on/off = Off.
6.5. Push the Back button
to go back in the menu system.
13.15 Calibrating the compass
It is recommended that the compass is calibrated every time you move the camera to a
new location.
#T559954; r. AP/42311/42335; en-US
42

FLIR T1020 Specifications

General

Resolution	1024 × 768 pixels
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Laser Pointer	Yes
Wi-Fi	Yes
Image Frequency	30 Hz
Detector Pitch	17 µm
Digital Zoom	1-8x continuous
Video Recording	Yes
Storage Media	SD card
Spectral Range	7.5 – 14 µm
Temperature Range	-40 °C to +2000 °C (-40 °F to +3632 °F)
Field of View	28° x 21°
Display	4.3 in LCD touchscreen, 800 × 480 pixels
Focus	Motorized and manual
Image Modes	Thermal, visual, MSX
Operating Temperature	-15 °C to +50 °C
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Connectivity	USB 2.0, HDMI
Image Storage	JPEG
Image Formats	JPEG
Thermal Sensitivity	<20 mK at 30°C
