FLIR T1020 User Manual

Working with measurement tools
17

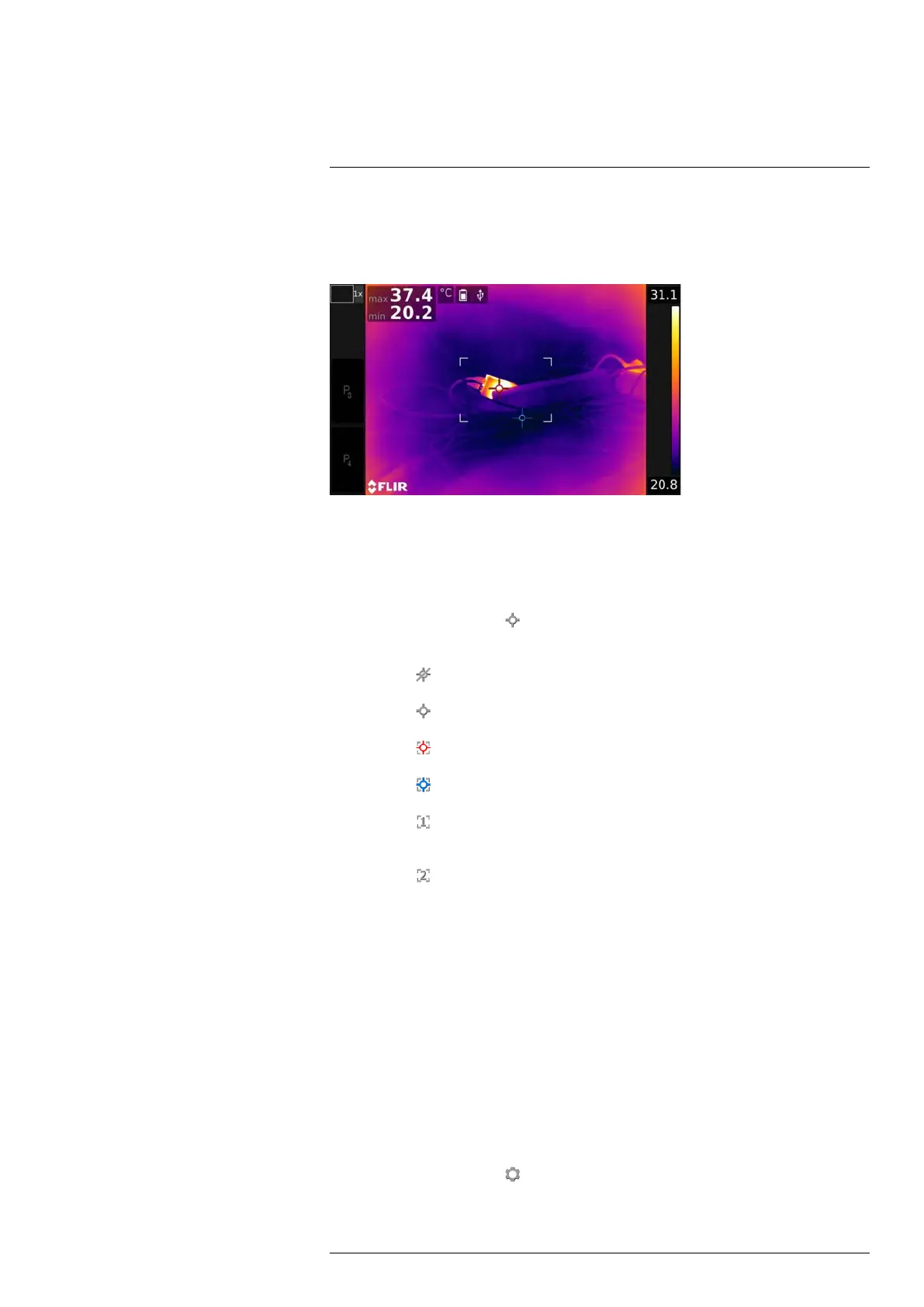

17.1 General
To measure a temperature, you can use one or more measurement tools, e.g., a spot-
meter or a box.
17.2 Adding/removing measurement tools
Follow this procedure:
1. Push the joystick to display the menu system.
2. Use the joystick to go to
(Measurement).
3. Push the joystick to display a submenu.
• Select
(No measurements) to remove all tools.
• Select
(Center spot) to add a center spot.
• Select
(Hot spot) to add a hot spot detection within a box area.
• Select
(Cold spot) to add a cold spot detection within a box area.
• Select
(User preset 1) to add user preset 1. (Not available in all camera
models.)
• Select (User preset 2) to add user preset 2. (Not available in all camera
models.)
4. Push the joystick. This displays the measurement tool or the group of preset tools on
the screen.
17.3 Working with user presets
17.3.1 General
A user preset is a measurement tool, or a group of measurement tools, with predefined
characteristics.
17.3.2 Procedure
Follow this procedure:
1. Push the joystick to display the menu system.
2. Use the joystick to go to
(Settings).
3. Push the joystick to display the Settings menu.
#T559954; r. AP/42311/42335; en-US
57

FLIR T1020 Specifications

General

Resolution	1024 × 768 pixels
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Laser Pointer	Yes
Wi-Fi	Yes
Image Frequency	30 Hz
Detector Pitch	17 µm
Digital Zoom	1-8x continuous
Video Recording	Yes
Storage Media	SD card
Spectral Range	7.5 – 14 µm
Temperature Range	-40 °C to +2000 °C (-40 °F to +3632 °F)
Field of View	28° x 21°
Display	4.3 in LCD touchscreen, 800 × 480 pixels
Focus	Motorized and manual
Image Modes	Thermal, visual, MSX
Operating Temperature	-15 °C to +50 °C
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Connectivity	USB 2.0, HDMI
Image Storage	JPEG
Image Formats	JPEG
Thermal Sensitivity	<20 mK at 30°C
