Handling the camera13

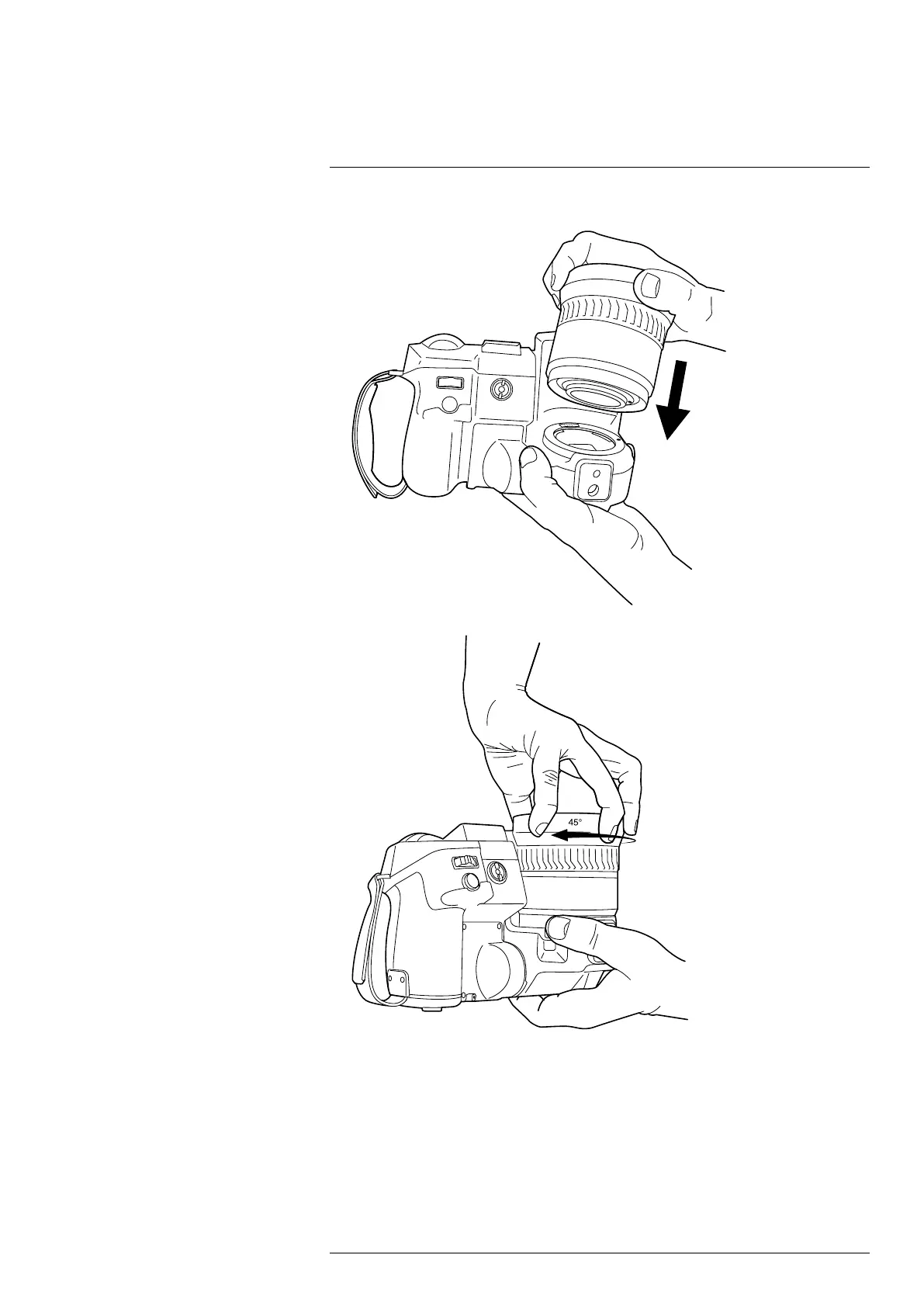

6. Align the lens correctly to the bayonet mount. Carefully push the lens into position.
7. Rotate the lens 45° clockwise. The lens makes a click when it locks in place.
13.14 Using the close-up lens
13.14.1 General
If you need to look at small objects very close up, you can attach the close-up lens to the
infrared lens.
When the close-up lens is attached, the digital camera and the infrared camera do not
see the same scene. This means that functions that are based on content captured by
the digital camera cannot be used, e.g., continuous autofocus and some image modes.
#T559954; r. AP/42311/42335; en-US
38

FLIR T1020 Specifications

General

Resolution	1024 × 768 pixels
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Laser Pointer	Yes
Wi-Fi	Yes
Image Frequency	30 Hz
Detector Pitch	17 µm
Digital Zoom	1-8x continuous
Video Recording	Yes
Storage Media	SD card
Spectral Range	7.5 – 14 µm
Temperature Range	-40 °C to +2000 °C (-40 °F to +3632 °F)
Field of View	28° x 21°
Display	4.3 in LCD touchscreen, 800 × 480 pixels
Focus	Motorized and manual
Image Modes	Thermal, visual, MSX
Operating Temperature	-15 °C to +50 °C
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Connectivity	USB 2.0, HDMI
Image Storage	JPEG
Image Formats	JPEG
Thermal Sensitivity	<20 mK at 30°C
