Handling the camera13

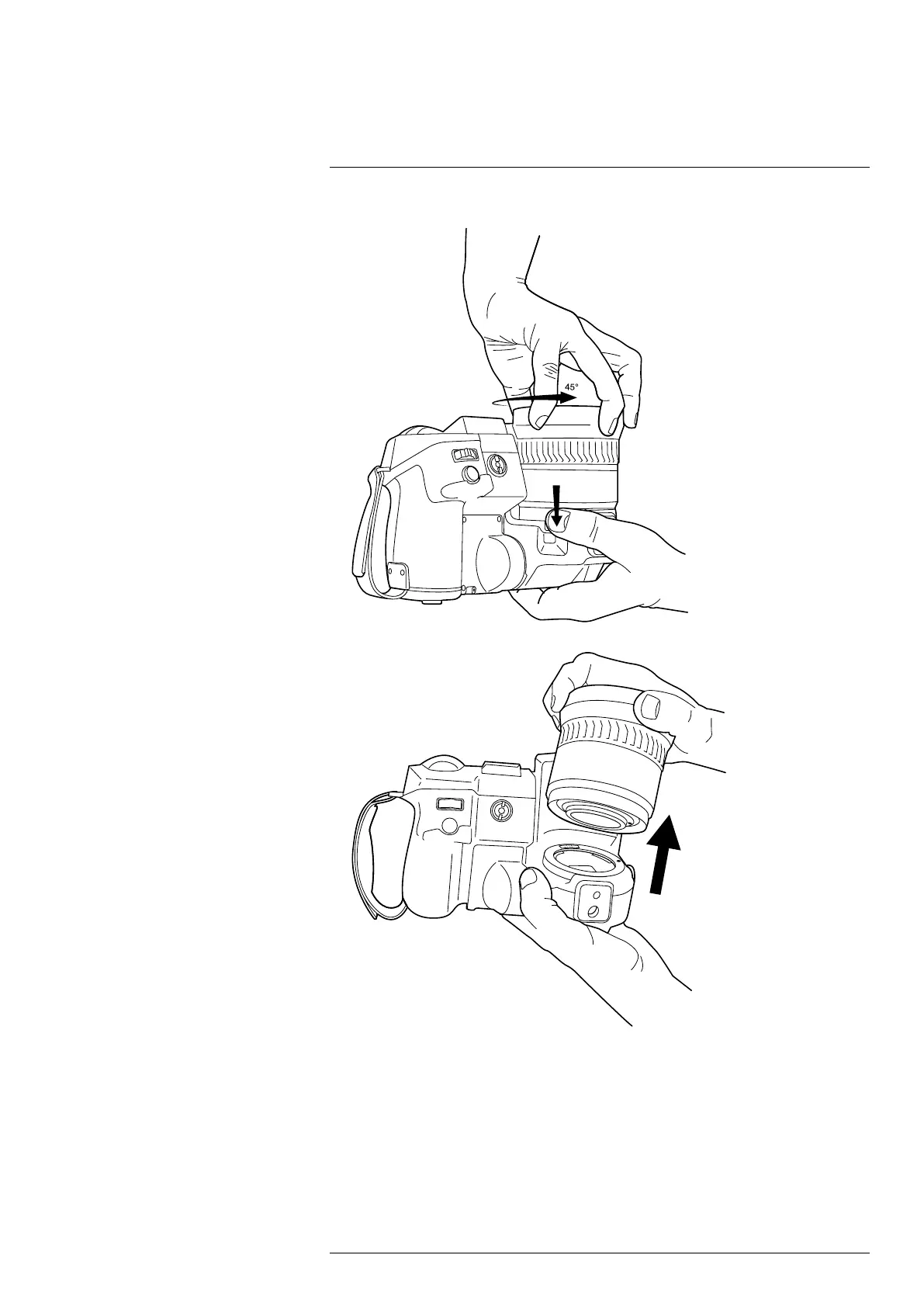

2. Push the release button and rotate the lens 45° counter-clockwise.

3. Carefully pull out the lens from the lens bayonet mount.

#T559954; r. AP/42311/42335; en-US
