Fluke 1750 User Manual

1750
Operators Manual
18
SD
ETHERNET
POWER
1750
POWER RECORDER
ON
BUSYLINK
100-240 V
47-63Hz
BACN
VO LTAGE
CURRENT
B/L2
A/L1
C/L3
N
GND
Source
GND
ØC/L3
ØA/L1
ØB/L2
azd04f.eps

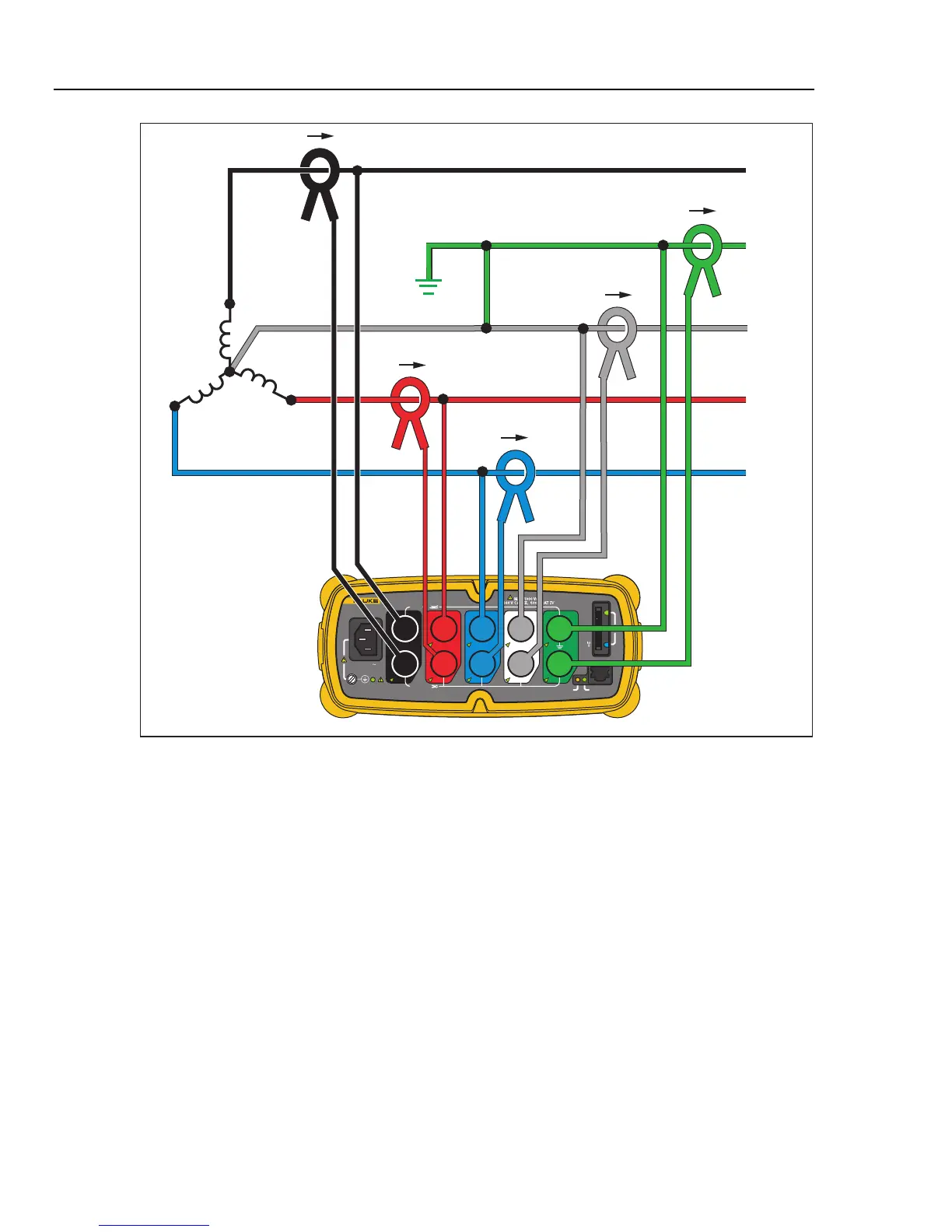

Figure 7. Three-Phase Wye
Example: Also called “Star” or four-wire connection. Typical commercial building power.

Fluke 1750 Specifications

General

Type	Power Quality Analyzer
Frequency Measurement Range	42.5 Hz to 69 Hz
Safety Rating	CAT IV 600 V, CAT III 1000 V
Accuracy	±0.1% of reading
Harmonics	Up to 50th harmonic
Communication	Ethernet, USB
Power Supply	100 V to 240 V AC
Channels	4 voltage, 4 current
Battery Backup	Yes, internal battery
Measurement Parameters	Voltage, Current, Power, Harmonics, Flicker
Data Logging Interval	1 second to 60 minutes
Battery Life	45 minutes (UPS)
Voltage Measurement Range	1 to 1000 V (phase to neutral)
Operating Temperature	-10 to 50 °C
