Fluke 1750 - Page 27

Power Recorder
Power Type Diagrams
19
SD
ETHERNET
POWER
175 0
POWER RECORDER
ON
BUSYLINK
100-240 V
47- 63Hz
BACN
VO LTAGE
CURRENT
GND
ØA/L1
B/L2
C/L3
A/L1
GND
ØC/L3
ØB/L2
azd05f.eps

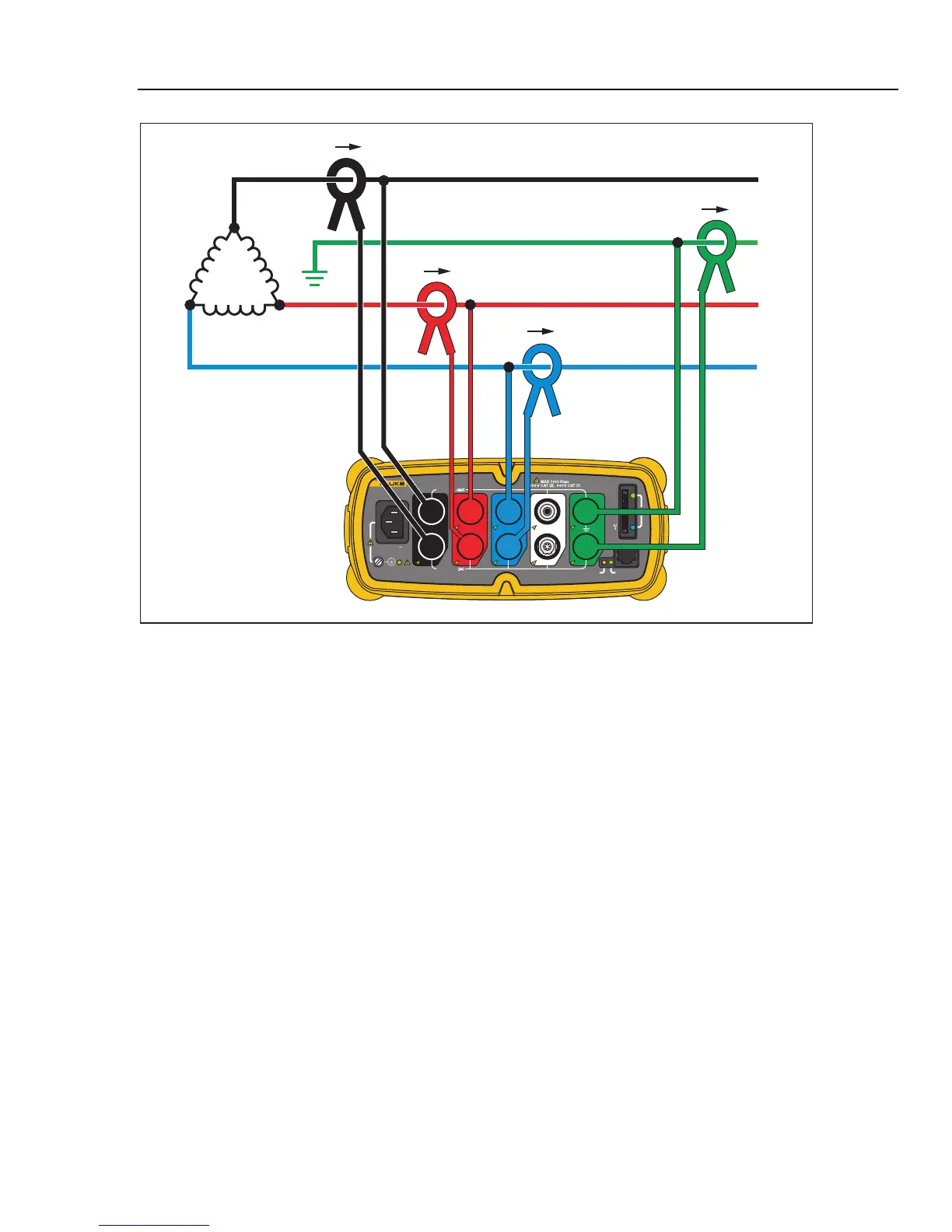

Figure 8. Three-Phase Delta
Example: Often found in industrial settings where electric motors are used.
