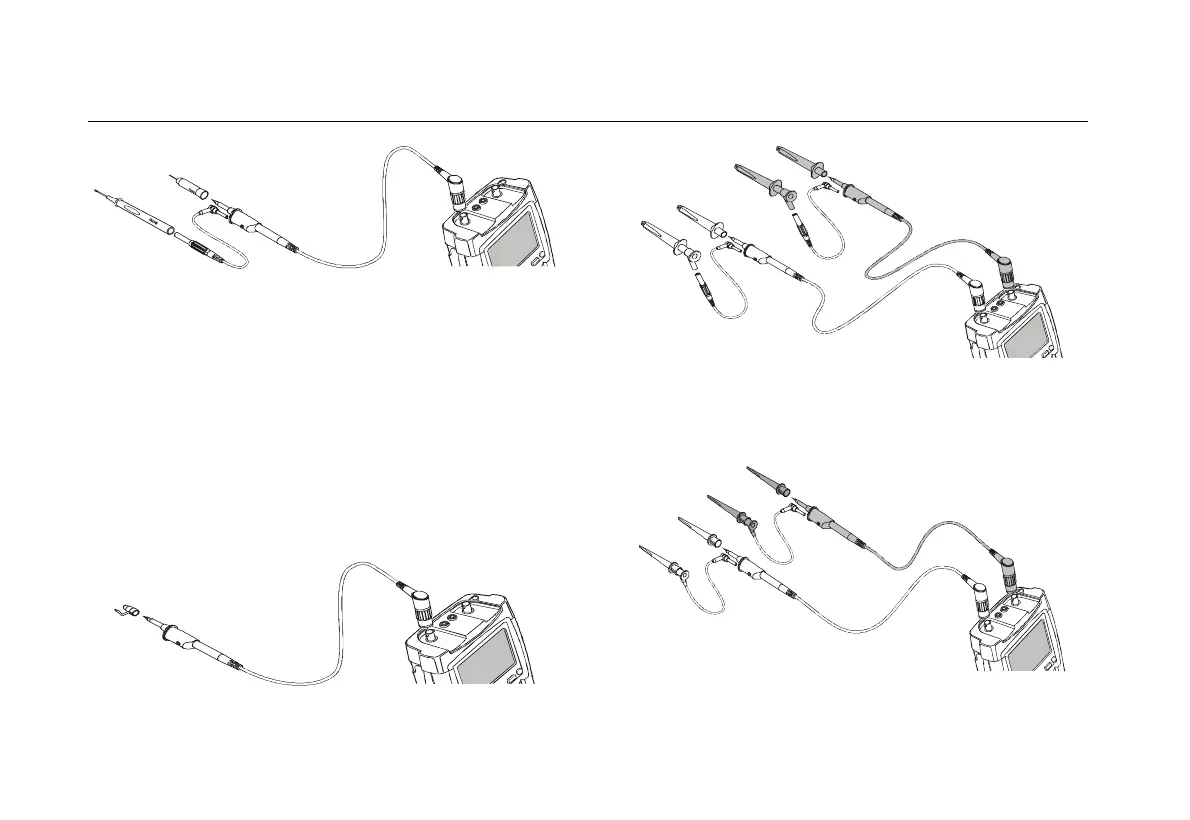

Figure 36. Probing Using 2-mm Heavy Duty
Test Probes
Warning
To avoid electrical shock or fire, do not
connect the ground spring to voltages higher
than 30 Vrms from earth ground.
Figure 37. HF Voltage Probe Connection Using
Ground Spring
Figure 38. Heavy Duty Fixed Connections for Scope
Measurements Using Industrial Alligator Clips
Figure 39. Electronic Connections for Scope
Measurements Using Hook Clips and Hook Clip
Grounding
