Tips
Using the Standard Accessories
7
67

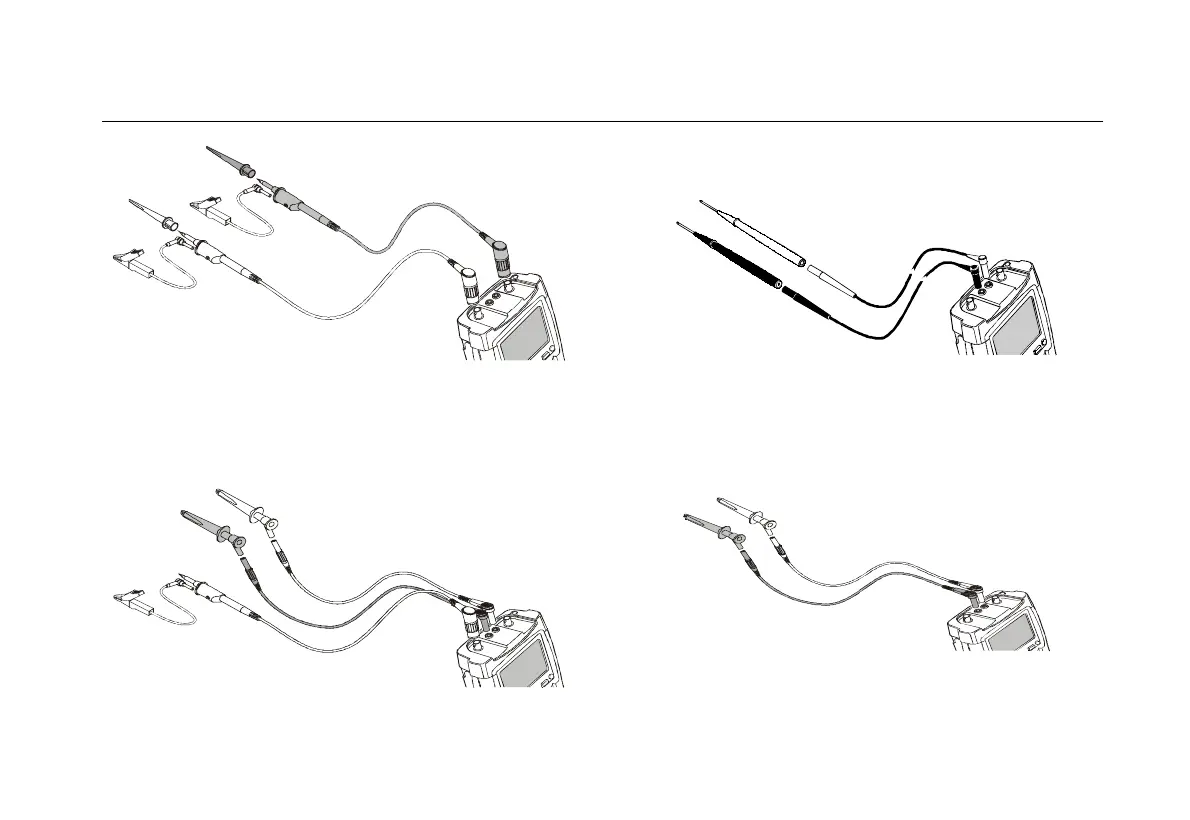

Figure 40. Electronic Connections for Scope
Measurements Using Hook Clips and Alligator Clip
Grounding
Figure 41. Fixed Electronic Connections for Scope
Measurements with Fixed External Triggering
Figure 42. Manual Probing for Meter Measurements
using 2-mm Test Probes
Figure 43. Heavy Duty Fixed Connections for Meter
Measurements Using Industrial Alligator Clips
