Fluke 5700A Series User Manual

Theory of Operation
Analog Section Detailed Circuit Description 2
2-55
ahp011f.eps

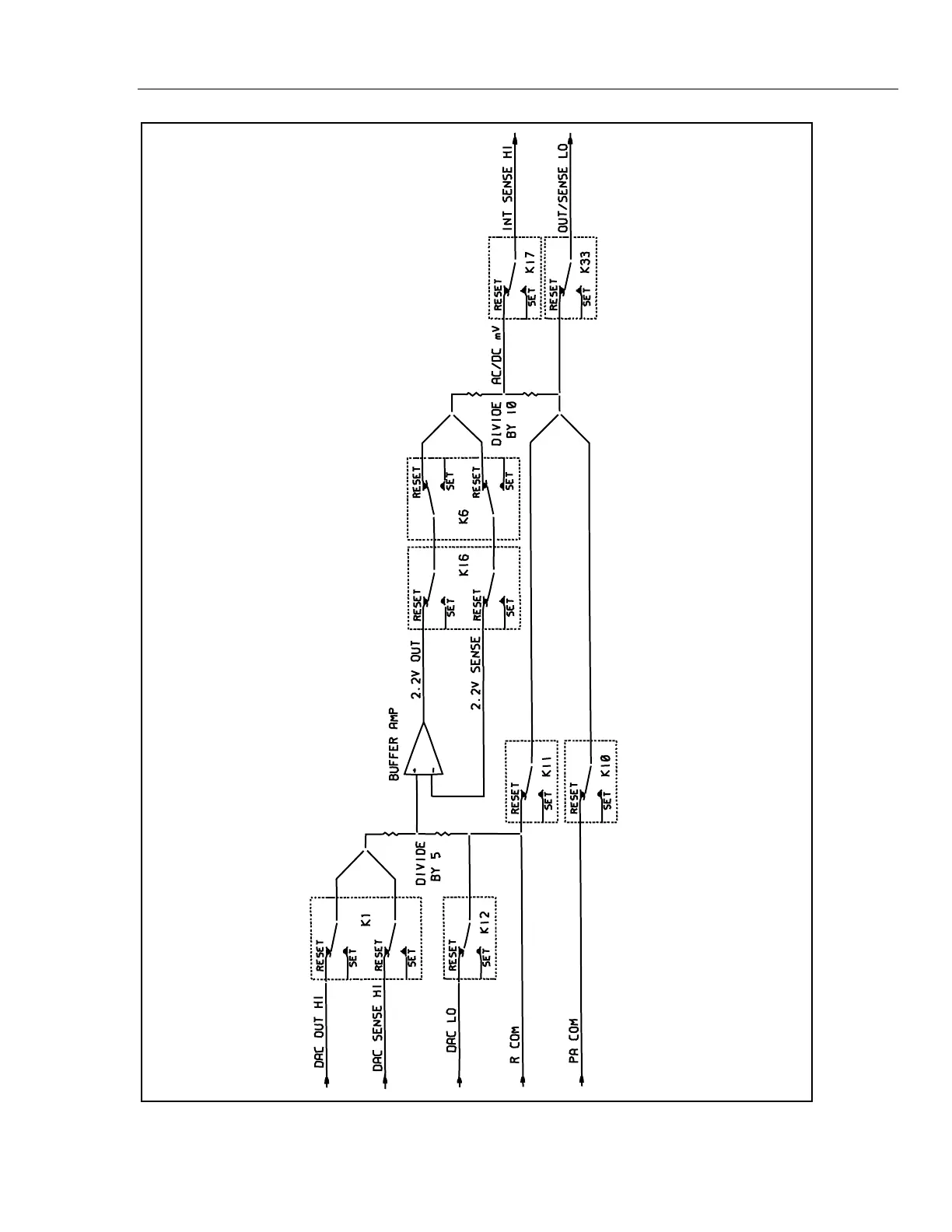

Figure 2-13. Switch Matrix Configuration for 220 mV DC Range

Fluke 5700A Series Specifications

General

Type	Multifunction Calibrator
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% non-condensing
Frequency Range	10 Hz to 1 MHz
Accuracy	Varies by function and range. See manufacturer's specifications for details.
Output Stability	Varies by function and range. See manufacturer's specifications for details.
Power Requirements	50 Hz to 60 Hz
