Fluke 5700A Series User Manual

Calibration and Verification
Calibrating the Wideband AC Module (Option 5700A-03) 3
3-17
OUTPUT
V A
SENSE
VA
AUX
CURRENT
GUARD
GROUND
WIDEBAND
NC
HI
HI
HI
LO
LO
LO
OUTPUT
HI
LO
GND
GRD
752A VOLTAGE DIVIDER STANDARD
INPUT
REFERENCE
STANDARD
NULL
DETECTOR
HI
LO
GUARD
GND
NULL DETECTOR
HI
LO
HI
HI
LO
732B VOLTAGE REFERENCE
STANDARD
EX SNS
: OFF
EX GRD
: OFF
Ω
CALIBRATOR
732B DC STANDARD
AC PWR IN CAL CHARGE LOW BAT
10V 1.018V CHASSIS
GUARD1.018V COM10V COM
SERIAL NUMBER
F7-6.EPS

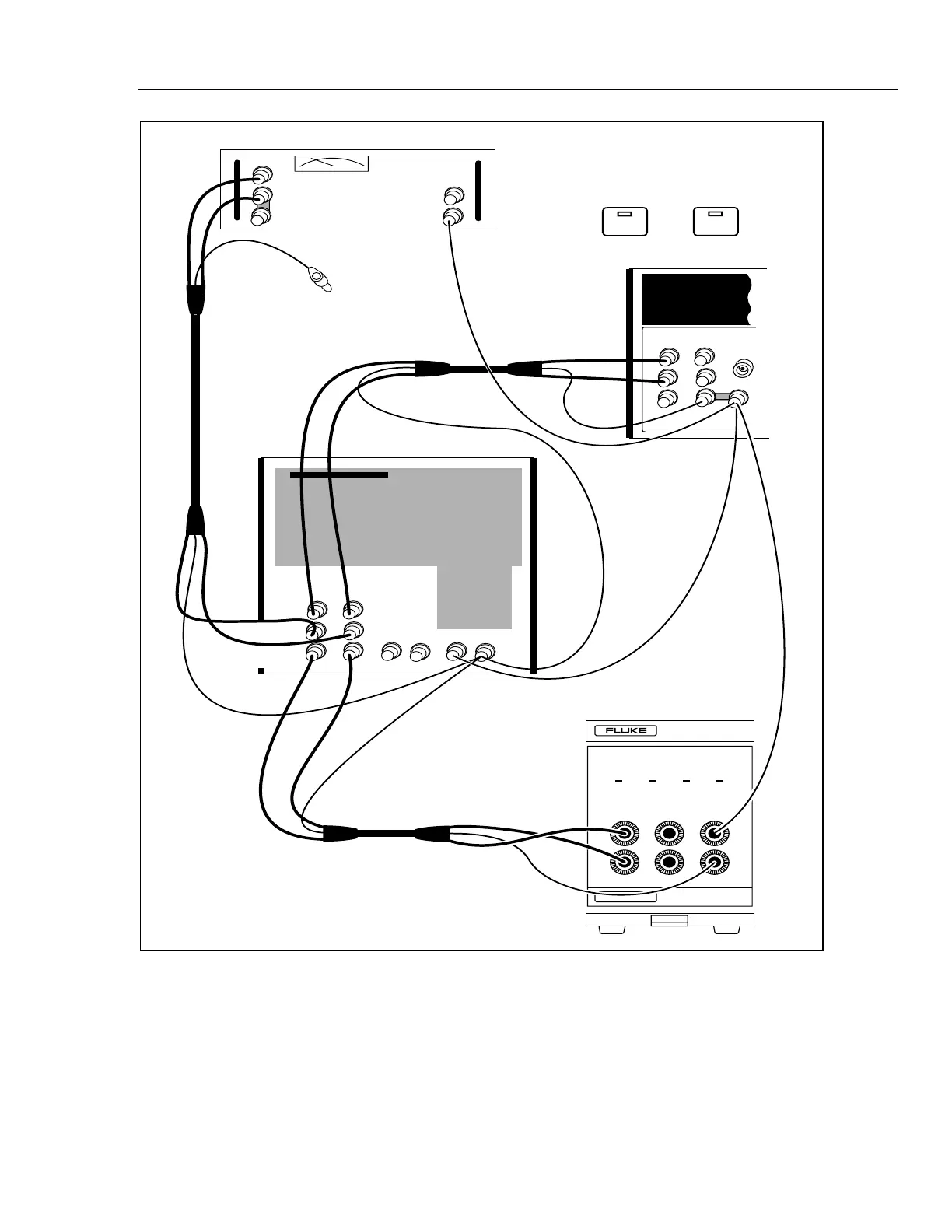

Figure 3-5. 220V DC Range Calibration Connections
3-11. Calibrating the Wideband AC Module (Option 5700A-03)
The Wideband AC Module (Option 5700A-03) can be installed in either the 5720A or
5700A Series II calibrator. The module needs to be calibrated for both gain and flatness.
The gain should be calibrated when the 5700A-03 main output functions undergo their
routine calibration.
