Calibration and Verification

Calibrating the 5700A/5720A Series II to External Standards 3

3-11

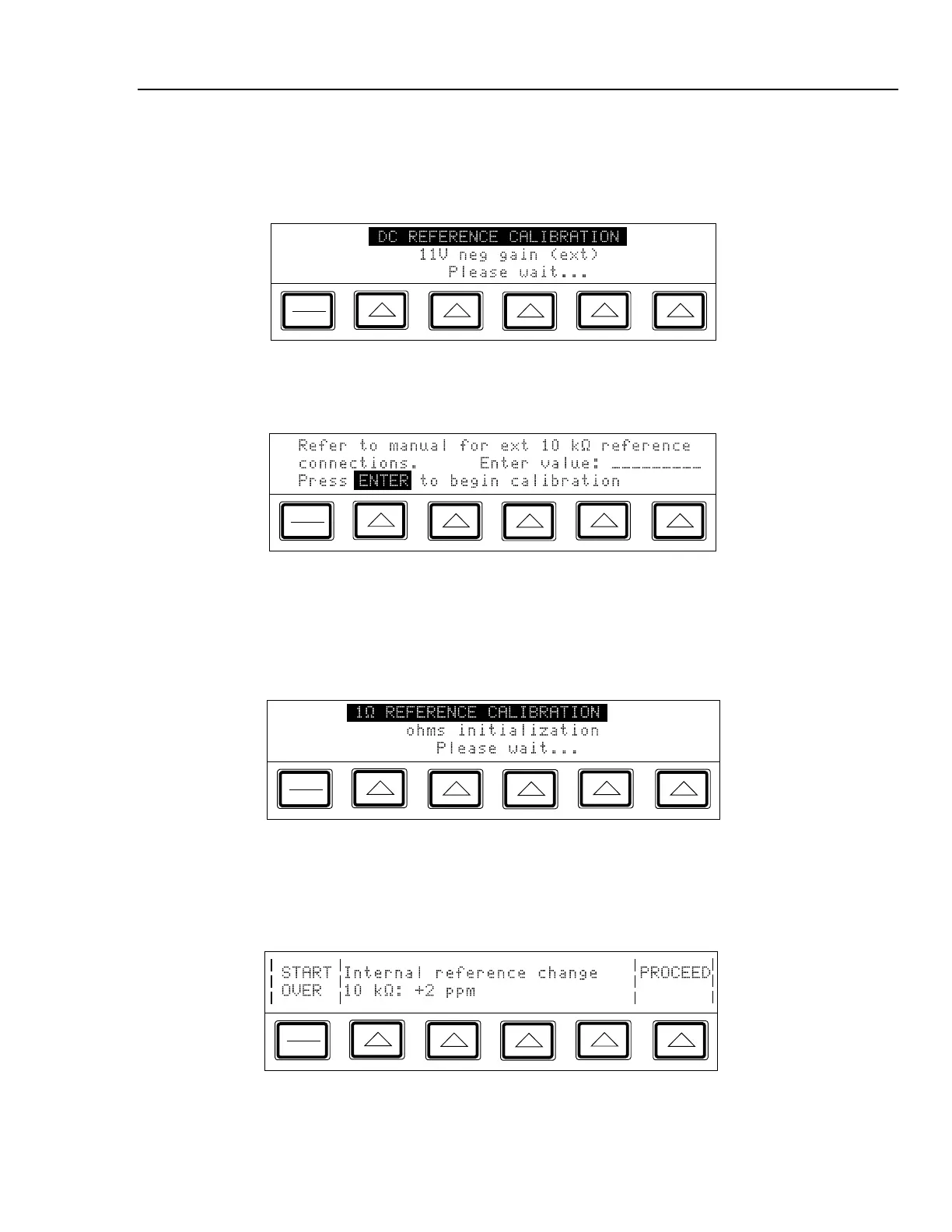

8. Reverse the HI and LO connections at the 732B terminals, and press E. The

following displays appear, asking you to wait before proceeding with the 10 kΩ

standard.

IF3-8.EPS

After a few seconds, the following display appears:

IF3-9.EPS

9. Connect the calibrator to the 10 kΩ standard as shown in Figure 3-4 and enter the

true value of the standard. If the standard is not between 9 kΩ and 11 kΩ, an error

message appears, which allows you to start over from this point with a different

standard. Press E again to open the following display:

IF3-10.EPS

When the internal 10 kΩ reference has been characterized, the following message

appears, which lets you accept or reject the changes that are about to be made to the

calibration constant:

IF3-11.EPS
