Fluke 5700A Series User Manual

5700A/5720A Series II Calibrator
Service Manual
1-28
Overshoot .............................................................. <10 %
Common Mode Rejection
....................................... 140 dB, DC to 400 Hz
Frequency
Ranges (Hz)........................................................ 10.000 - 119.99
0.1200 k - 1.1999 k
1.200 k - 11.999 k
12.00 k - 119.99 k
120.0 k - 1.1999 M
Uncertainty.......................................................... ±0.01 %
Resolution........................................................... 11.999 counts
Phase Lock (Selectable Rear Panel BNC Input)
Phase Uncertainty (except 1100 V range).......... >30 Hz: ±1 ° + 0.05 °/kHz), <30 Hz: ±3 °
Input Voltage....................................................... 1 V to 10 V rms sine wave (do not exceed 1 V for mV ranges)
Frequency Range ............................................... 10 Hz to 1.1999 MHz
Lock Range......................................................... ±2 % of frequency
Lock-In Time ....................................................... Larger of 10/frequency or 10 msec
Phase Reference (Selectable Rear Panel BNC Output)
Range ................................................................. ±180 °
Phase Uncertainty (except 1100 V range).......... ±1 ° at quadrature points (0 °, ±90 °, ±180 °) elsewhere ±2 °
Stability ............................................................... ±0.1 °
Resolution........................................................... 1 °
Output Level........................................................ 2.5 V rms ±0.2 V
Frequency Range ............................................... 50 kHz to 1 kHz, usable 10 Hz to 1.1999 MHz
1000
100
10
0
3.5 V
10000
50 Hz10 Hz 1 kHz 100 kHz 1 MHz 30 MHz
Voltage
Frequency
40 Hz 30 Hz
5725A
5700A-03
2.2 x 10
7
V-Hz
15 Hz
5700A/5720A

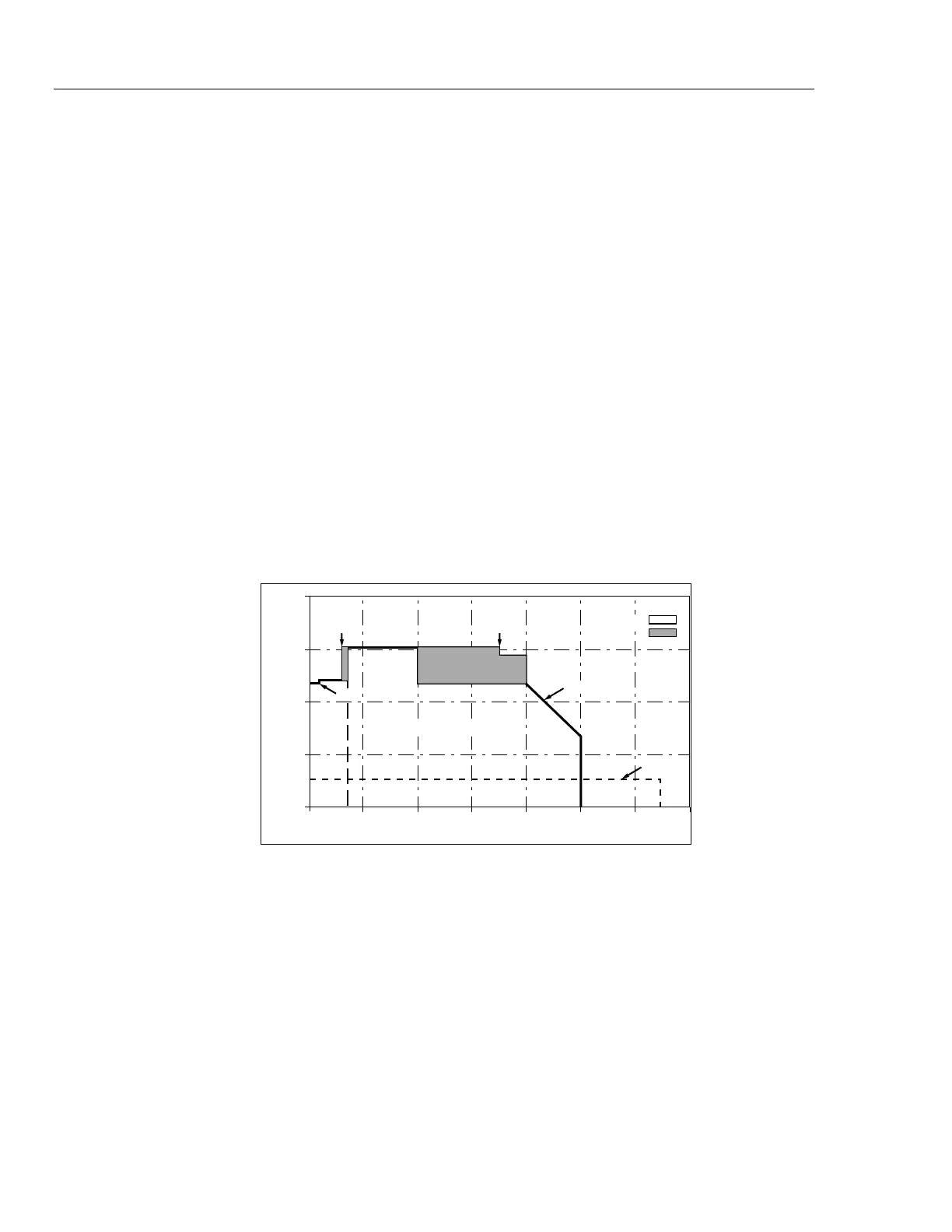

Volt-Hertz Capability
Figure A.

Fluke 5700A Series Specifications

General

Type	Multifunction Calibrator
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% non-condensing
Frequency Range	10 Hz to 1 MHz
Accuracy	Varies by function and range. See manufacturer's specifications for details.
Output Stability	Varies by function and range. See manufacturer's specifications for details.
Power Requirements	50 Hz to 60 Hz
