Vertical flanged machines – Static clock
Measure using Static measurement mode
l Center the laser beam.
Note
Static measurement mode is used for vertically mounted machines.
l Rotate the shafts to the first measurement position. If using the coupling housing num-
bering convention, the reference mark and the measurement position 0 should be
aligned or matched to each other.
l

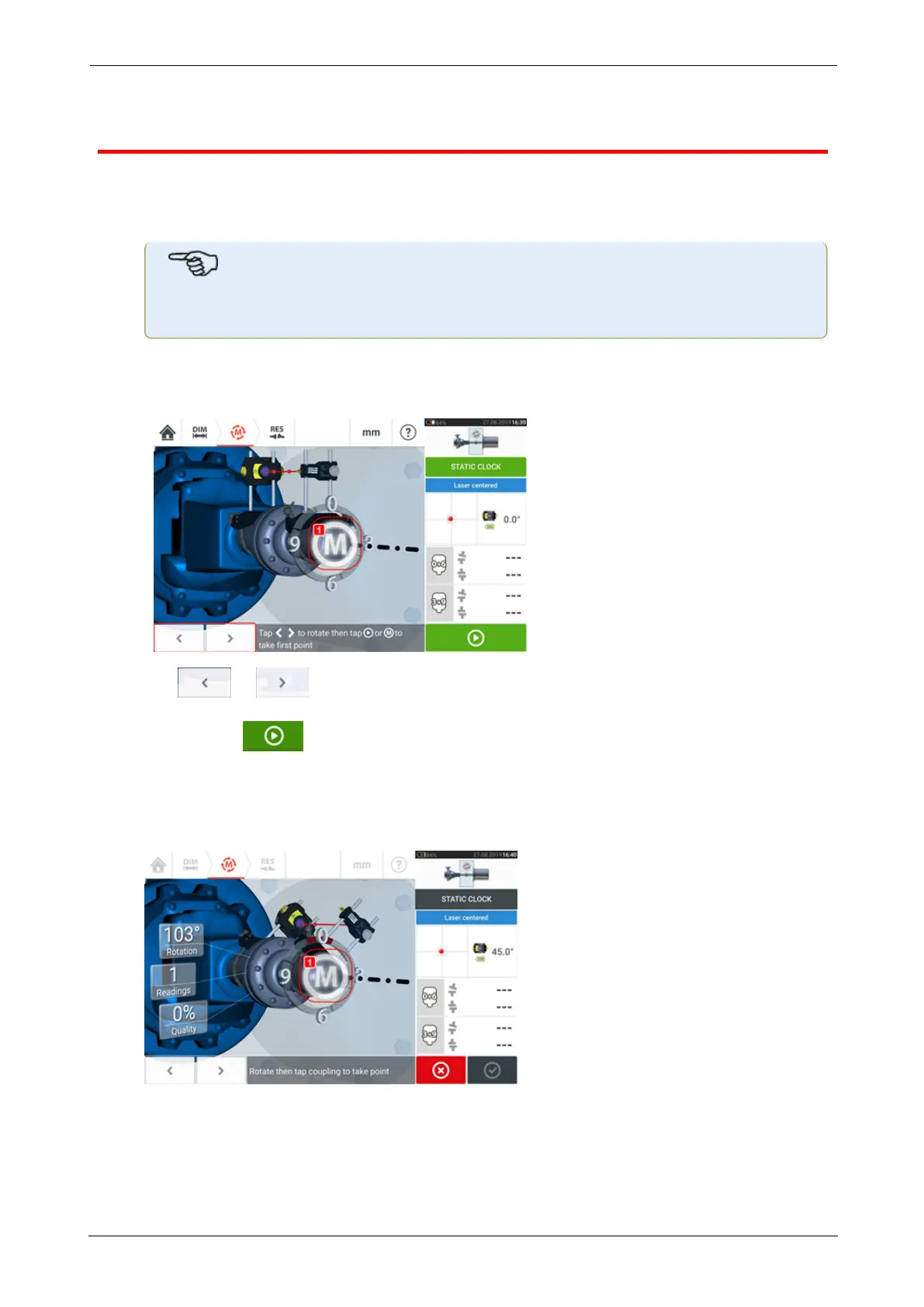

Use or to position the displayed sensor and reflector at the angular rota-
tion corresponding to the actual position of the components mounted on the shafts, then
tap M (1) or to take the first measurement point.
l Rotate shaft to the second measurement position (e.g. 1:30). If the chosen meas-
urement position does not correspond to the angle selected automatically on the display,
use the navigation keys to manually position the sensor and reflector at desired angle on
the display. Take the measurement point by tapping M (1).
l Take the maximum number of measurement points to maximize the quality of results.
