DSP-4000 Series
Users Manual
6-2
To recalibrate the test tool, refer to Figure 6-1 and proceed as follows:
OFF
PRINT
MONITOR
SETUP
SPECIAL
FUNCTIONS
SINGLE
TEST
AUTO
TEST
DSP-4000
CABLE ANALYZER
TALK
EXIT
ENTER
TEST
SAVE
1
23
4
FAULT
INFO
DSP-4000
SMART REMOTE
ON
OFF
PASS
TESTING
TALKING
FAIL
LOW BATTERY
TALK
ON
OFF
Test Tool Smart Remote
Calibration
Module
oy77f.eps

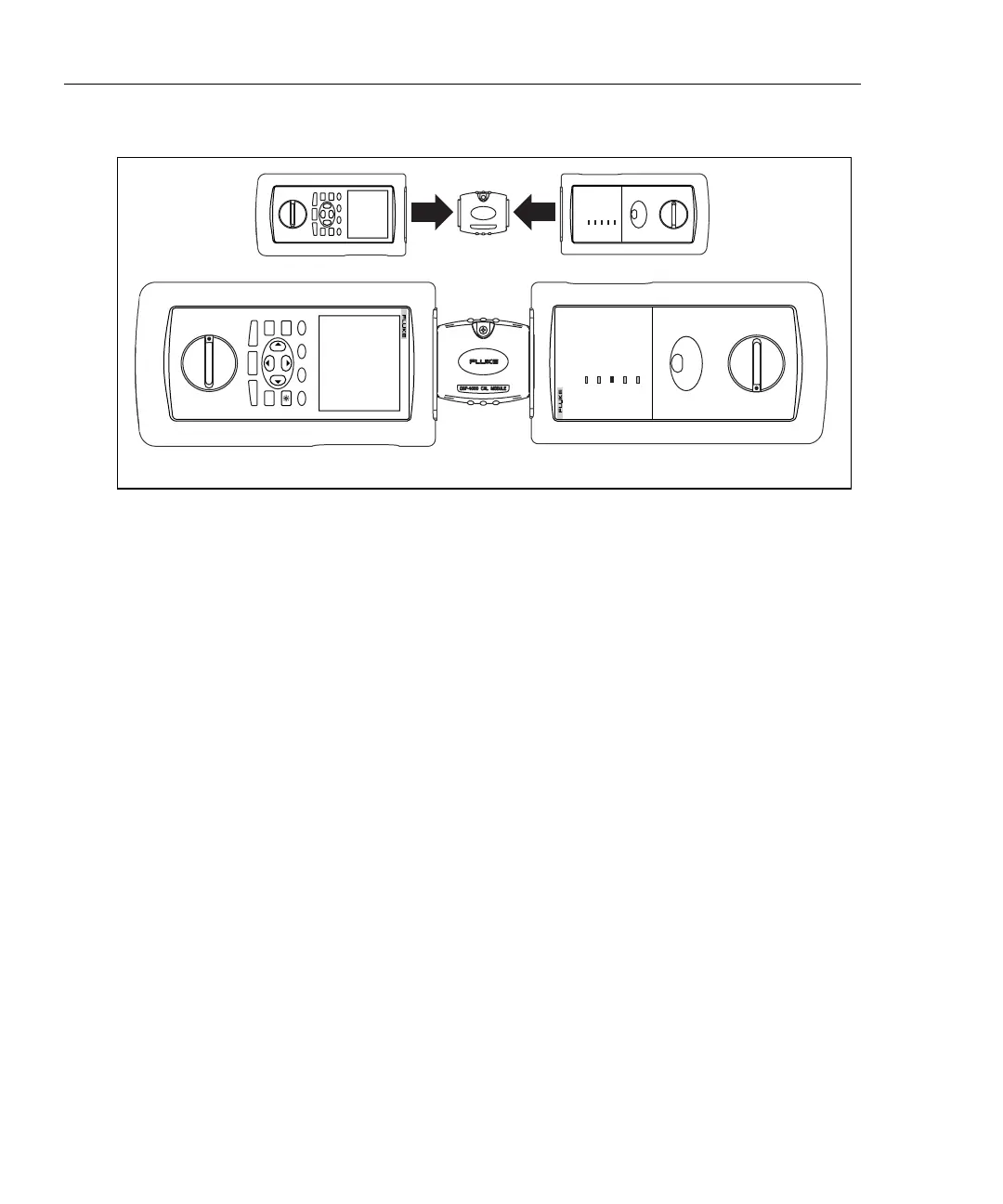

Figure 6-1. Connections for Self-Calibration
1. Turn the rotary switch to SPECIAL FUNCTIONS.
2. Use D to highlight Self Calibration.
3. Press E.
4. Connect the test tool to the remote as directed by the displayed messages.
5. Press T to start the calibration.
When the calibration is complete, the calibration data and the remotes serial
number are automatically stored in the test tools calibration library.
If the message SELF CALIBRATION FAIL appears, check the following:
Verify that the test tool and remote are securely connected with the calibration
module.
Verify that the connected units are resting on a flat surface.
Check the main unit, remote unit, and the calibration module for damaged
connectors.
If the self calibration continues to fail, send the main and remote units and the
cable adapters to the nearest Fluke Networks service center. See Service Center
Repair in Chapter 8 for details.
