Getting Started
Link Interface Adapter Features
2
2-23
Link Interface Adapter Features
.
DSP-LIA011
DSP-LIA012
2
1
3
DSP-LIA013
5
4
6
DSP-LIA101
oy71f.ep
1 DSP-LIA011
cable and plug
Shielded Cat 5E twisted pair cable with a shielded Cat 5E RJ45
plug for testing basic link installations.
2 DSP-LIA012 jack Shielded RJ45 jack for testing channel installations.
3 Latch and 60-pin
connector
Latch and connector for attaching the LIA to a DSP-4000 Series
test tool.
4 DSP-LIA101
cable with
personality
module
(DSP-4000PL/
DSP-4300)
One meter of proprietary, high-performance cable terminated with a
removable personality module. The personality module ensures
electrical compatibility with a particular manufacturer’s jack. See the
next section for additional information.
The standard module is designed for use with various jacks. Refer to
the PMxx module list included for applications of available modules.
5 DSP-LIA013
CABLE jack
Shielded RJ45 jack for testing channel installations.
6 DSP-LIA013
MONITOR jack
Shielded RJ45 jack for traffic tests, the hub port capabilities test, and
the hub port locator.

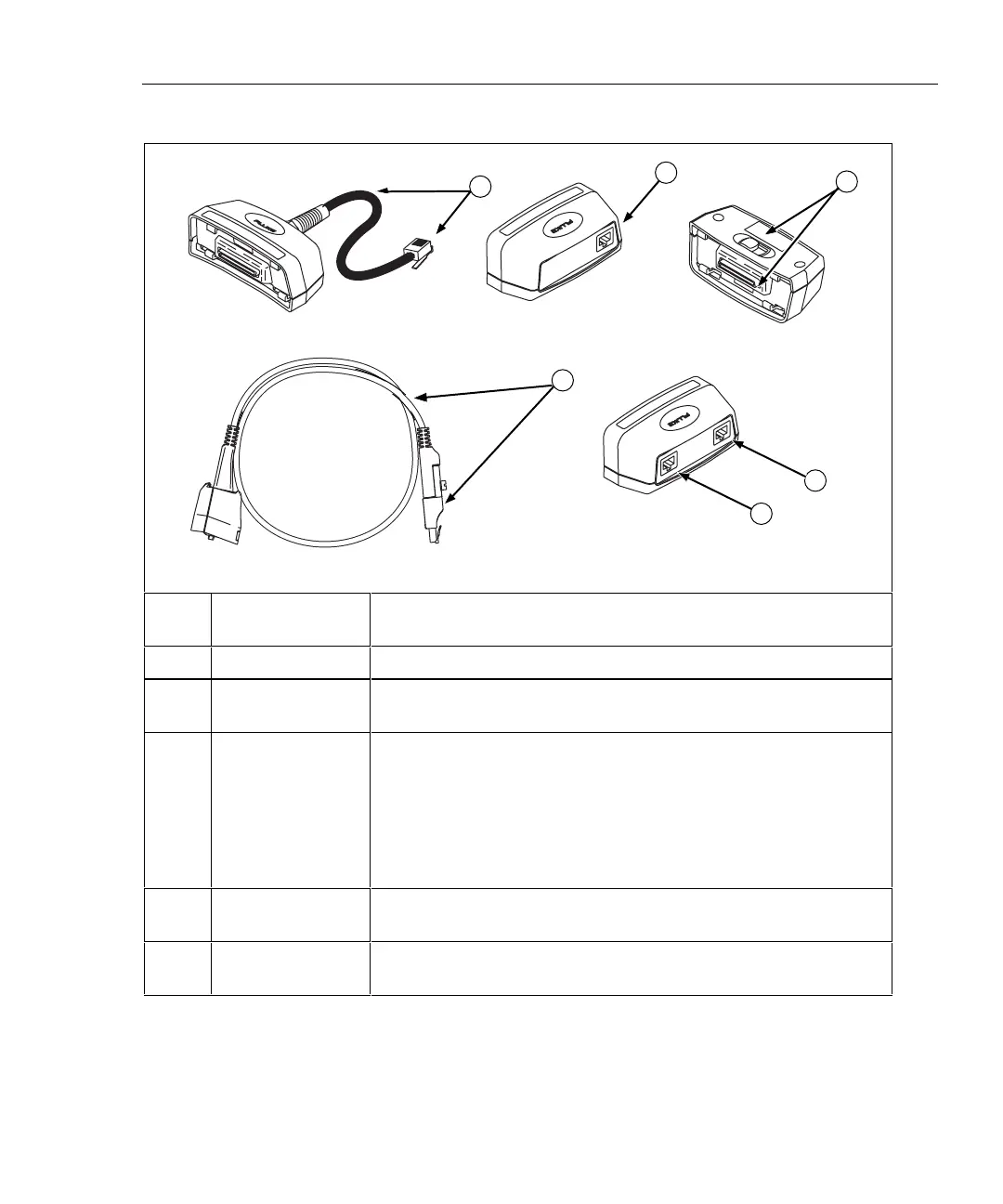

Figure 2-10. Link Interface Adapter Features
