DSP-4000 Series
Users Manual
2-6
oy72f.eps

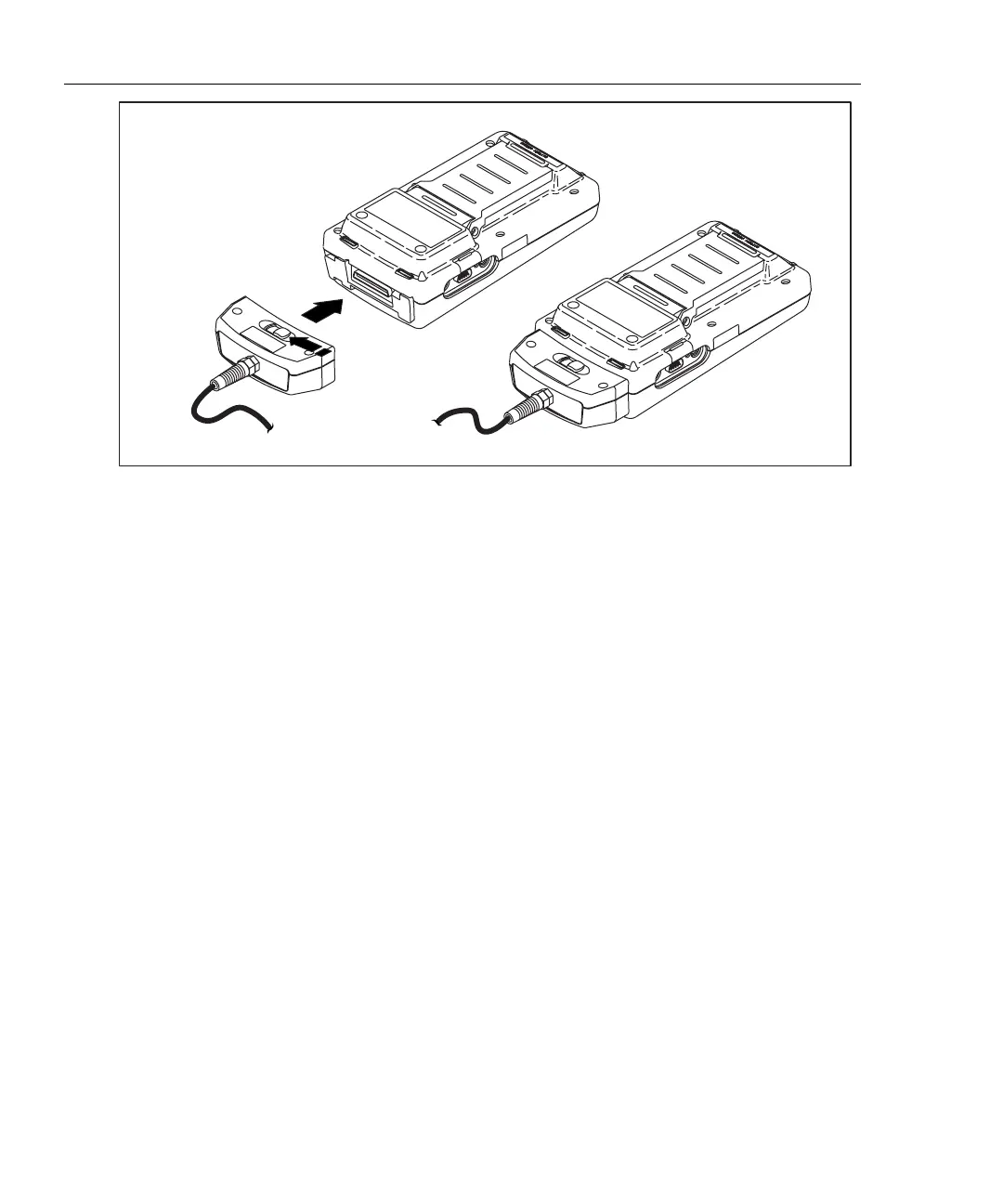

Figure 2-1. Attaching a Link Interface Adapter
Formatting the Memory Card (DSP-4100/4300)
Autotest results you save on a DSP-4100 or DSP-4300 test tool are stored on a
removable memory card. One 16 MB card is included with the test tool.
Compatible cards of different capacities can also be used in the test tool. Figure
2-2 shows how to insert and remove the card. You do not need to turn the test tool
off before inserting or removing the card.
Before you store test results, the card must be formatted as follows:
1. Insert the card into the test tool as shown in Figure 2-2.
2. Turn the rotary switch to SPECIAL FUNCTIONS. Use D to select
Memory Card Configuration; then press E.
3. Press $ Format; then press # Yes to begin formatting.
For instructions on using the memory card reader and transferring Autotest results
to a PC, see the online help or “Getting Started” under Help on the LinkWare
menu.
