DSP-4000 Series
Users Manual
3-8
Autotest Results for Twisted Pair Cabling
To see detailed results from a test, press ! View Result, use D U to
highlight the test on the main Autotest menu; then press E.
Note
The tests run during an Autotest on twisted pair cabling depend on
the test standard selected. Tests not applicable to the selected test
standard are not run or displayed. For a list of the tests and limits
associated with common test standards, visit the Fluke Networks
website at www.flukenetworks.com.
Wire Map Test
The wire map test tests and displays the wire connections between the near and far
ends of the cabling on all four pairs. Shield continuity is also tested if a shielded
cable was selected and the shield test enabled when the test standard was selected.
The pairs tested are those defined by the selected test standard. Table 3-1 shows
examples of wire map displays.
If the wire map test passes, the Autotest continues. You can view the wire map test
results when the Autotest is complete. If the wire map test fails, the Autotest halts
and the wire map screen appears with the word FAIL. You can then save the wire
map results by pressing
S. To continue the Autotest, press $ Continue
Test.

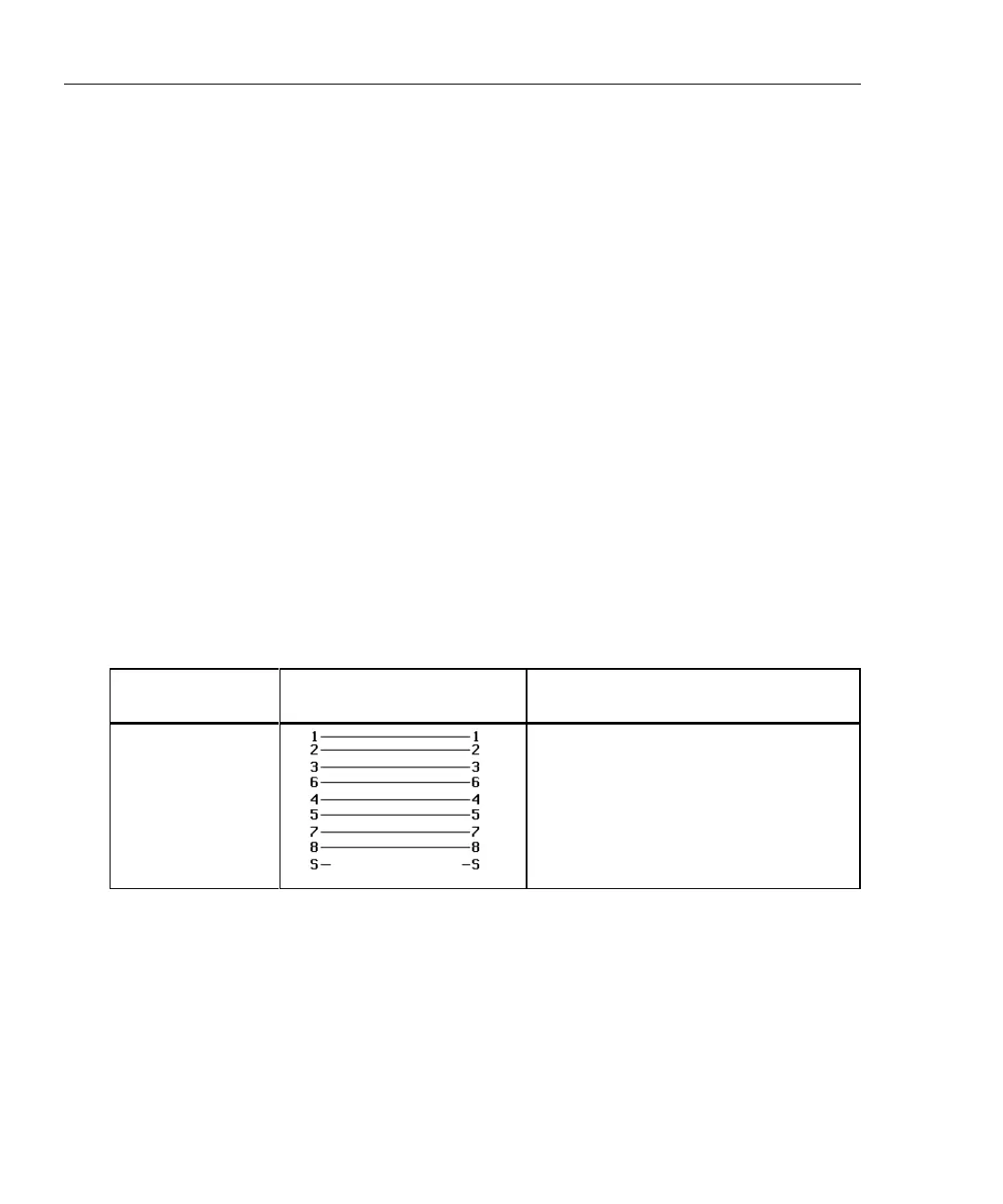

Table 3-1. Wire Map Displays
Wire Map
Condition
Display Description
Correct wiring Cable wiring is correct. Shield (S) shown
only if required by selected test
standard.
