Basic Cabling Testing
Basic Link Connections
7
7-5
Basic Link Connections
The cable links you test may or may not include equipment patch cables and extra
transition connections in the telecommunications closet and work area. For
example, cable installers are often responsible only for the permanent cabling
installed between the closet and the first wall outlet in the work area. This segment
of cabling was originally defined in TSB-67 as the basic link, shown in Figure 7-4.
The basic link consists of up to 90 m of horizontal cable, one transition connector
at each end, and two test equipment patch cables of no more than 2 m each.
Basic link testing, which is no longer recognized in TIA and ISO standards, is
becoming less common as cabling installers adopt the newer permanent link
testing standard.
Test equipment
patch cable
Test equipment
patch cable
Horizontal cabling
Basic link
Patch panel
connection
Test Tool
Smart
Remote
TALK
Start
basic link
End
basic link
oy73f.eps

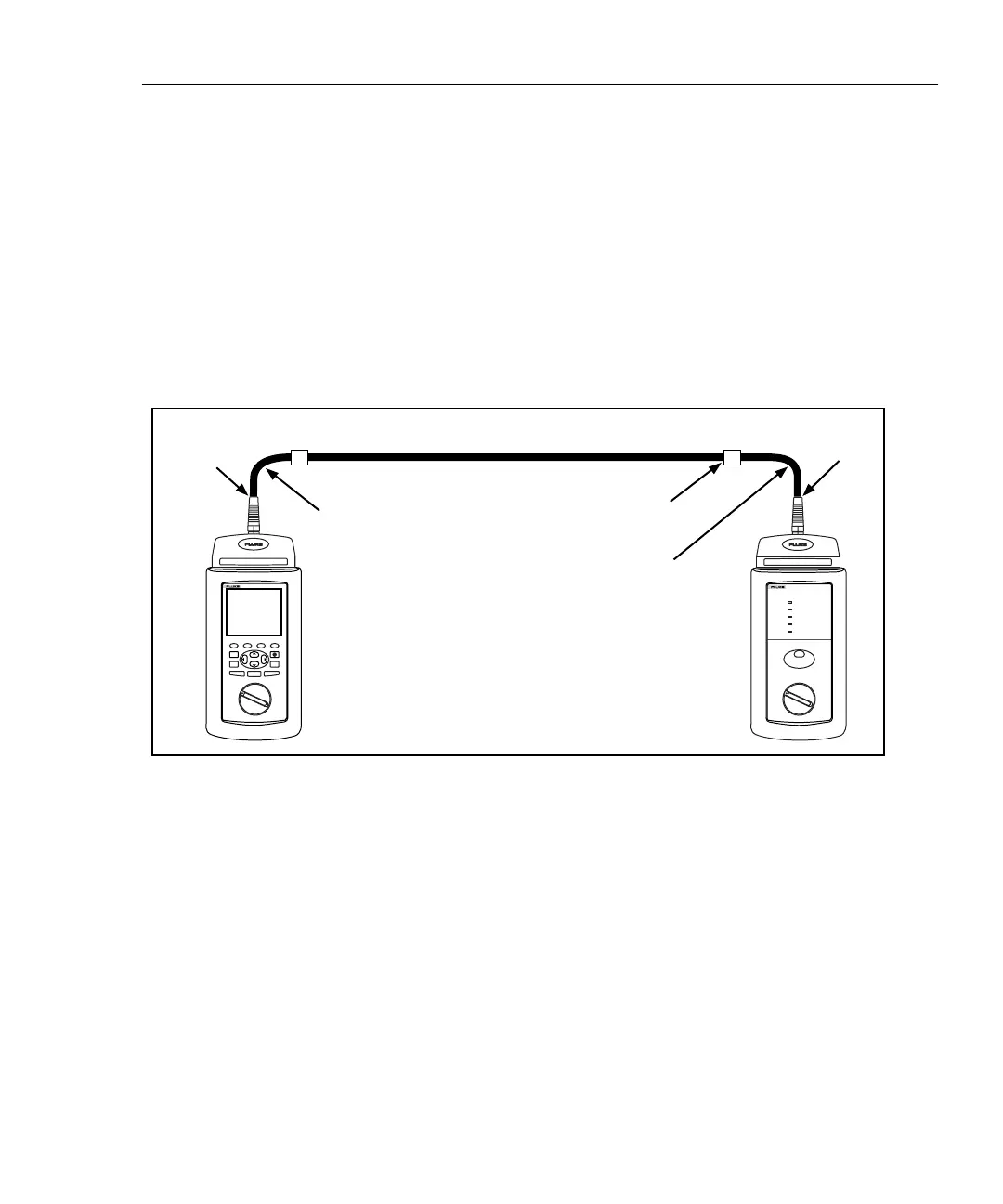

Figure 7-4. Basic Link Test Connections
