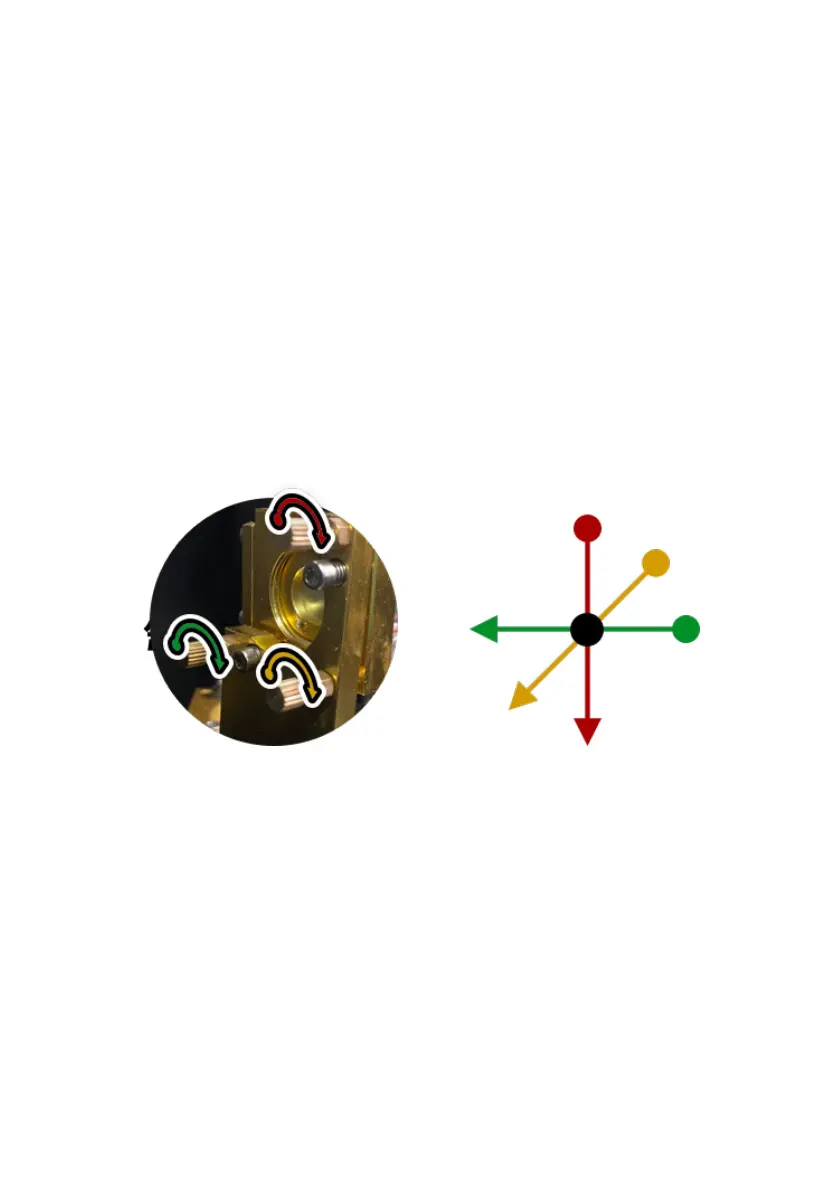

The screws behind the second mirror control the
mirror angle which is shown in the picture below.
Release the nut on the screw, rotate the screw for the
desired direction and test the shot position until the
two shots can overlap. Tighten the nut slightly back to
its position when the adjustment is done.
󱦻
Put on a new tape and run the test again.
Second Mirror Dot Direction

Flux Beambox Specifications

General

Laser Power	40W
Weight	22 kg (48.5 lbs)
Laser Type	CO2
Camera	Yes
Connectivity	Wi-Fi
Supported File Types	SVG, DXF, JPG, PNG
Power Supply	110V/220V
