69
7.6.3 Laser Head Displacement Adjustment

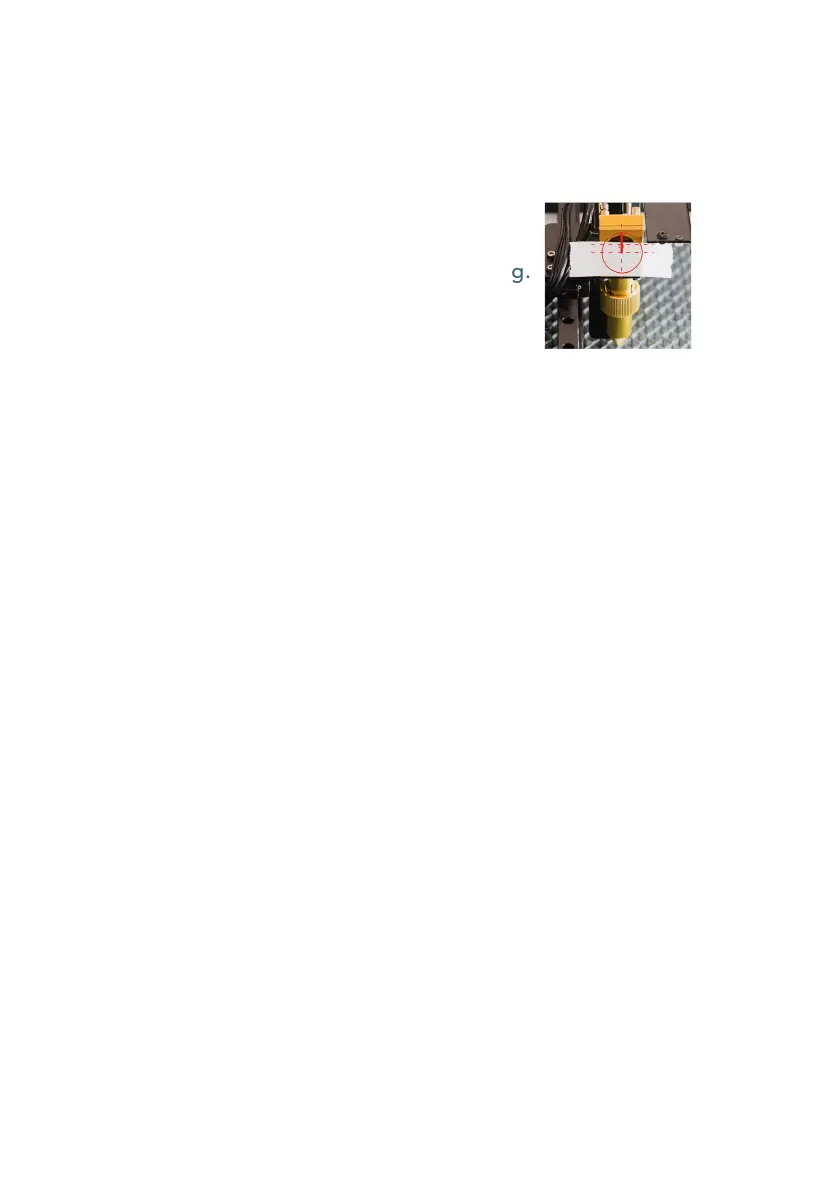

Goal: The dot on the metal ring be
on the vertical center line of the ring.
The dot must be above the center
point of the ring.
Directions:
Move the laser head to the center of the working
area manually. Close the door and press "Laser Pulse".
Check if the dot landed on the vertical center line
of the ring. If yes, skip to step
.
Release the 4 hex socket head screws by a 2.5 mm
Allen key.
Move the laser head forward or backward related
to the rail. Then tighten the 4 screws back.
Press "Laser Pulse" and check if the dot landed
on the vertical center line of the ring. If not, please
repeat the adjustment of step
and
.
Check if the dot overlaps or is above the horizontal
center line of the ring. If yes, move on to "Third Mirror
Adjus tment".
To Next Page
