72
󱦵

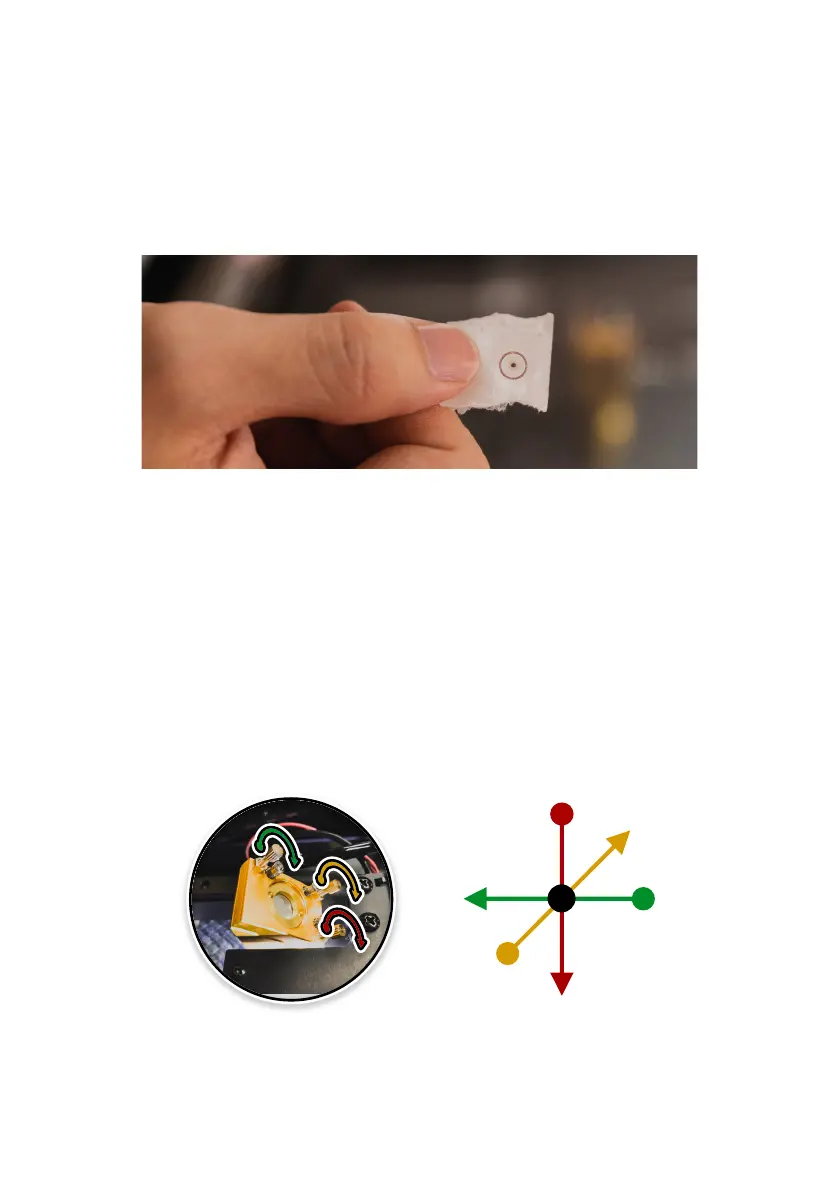

Open the door and check if the dot is located near
the center of the circle. If not, the screws behind the
third mirror need to be adjusted.
󱦷
The screws behind the third mirror control the
mirror angle which is shown in the picture below.
Release the nut on the screws, rotate the screws
for the desired direction until the two dots overlap.
Tighten the nut slightly back to its position when the
adjustment is done.
反射鏡 光點
Third Mirror Dot Direction
