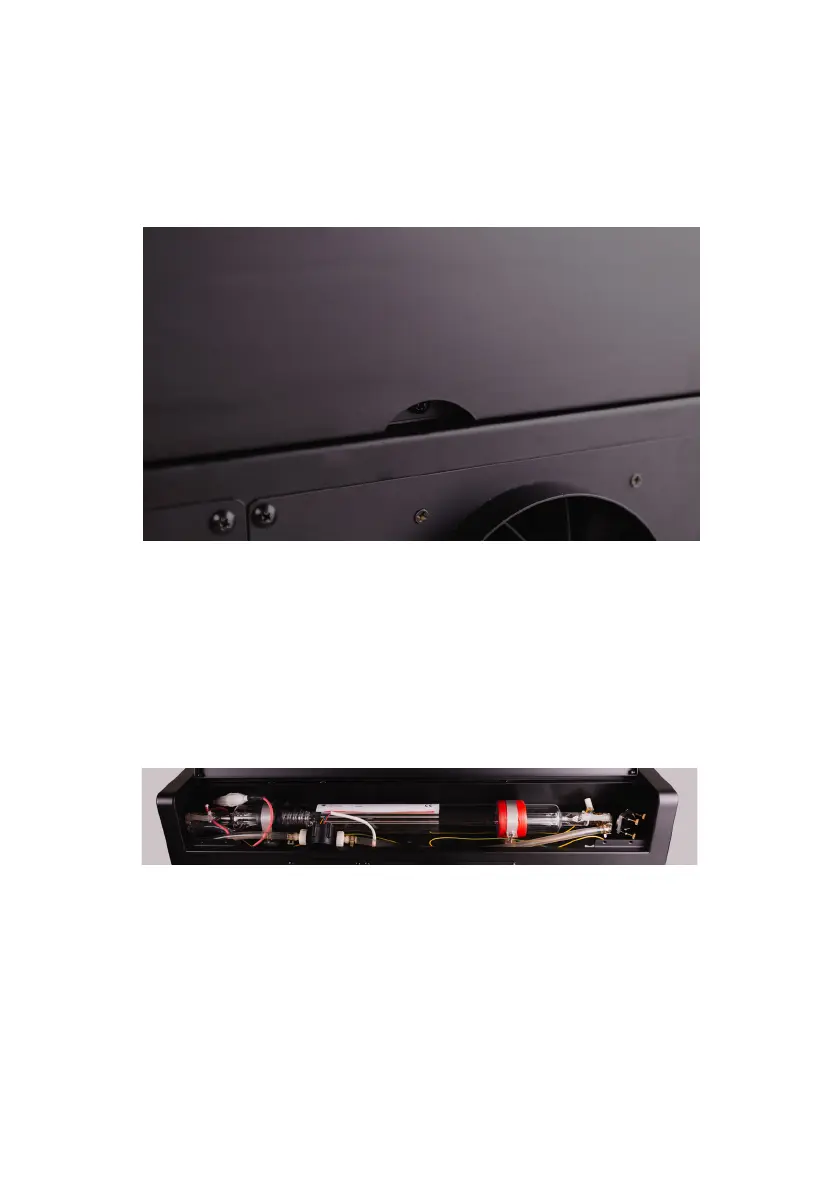

Remove the screw inside the handle of the back
lid then open the lid.
There are two ends on a laser tube. The one with the
red wire which is closer to the touch screen is called
the high-voltage side. The other next to the first
mirror is called the low voltage side.
▲
High-voltage Low-Voltage
▲
