Fostex MR8 Mk2 User Manual

144

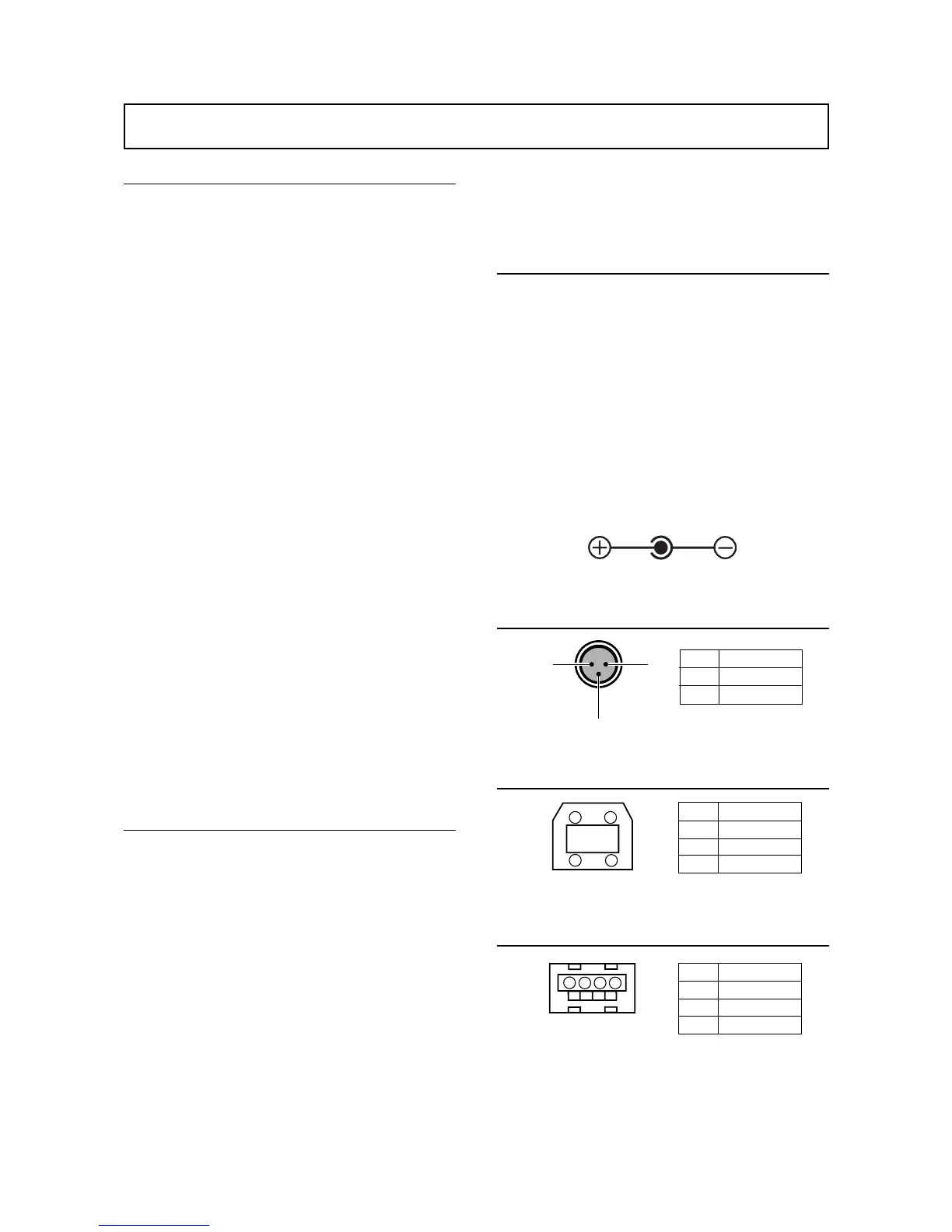

MR-8mkII Owner’s Manual (Specifications)
[Inputs/Outputs]
0dBu=0.775Vrms, 0dBV=1.0Vrms, Reference level: -12dBfs
Analog input [INPUT A / INPUT B]
Connectors : XLR-3-31 type (#2: hot balanced)
: 1/4-inch, phone type
Input level : -48dBu (MIC) to +4dBu (LINE)
Input impedance : 1.5kΩ or more
: 400kΩ or more (When the INPUT
A SEL switch is set to “GUITAR”.)
Phantom power : P48V (Phantom power ON/OFF is
selected in the “Input” menu of the
MENU mode.)
Stereo analog output [STEREO OUT (L, R)]
Connectors : 1/4-inch, phone type
Norminal output level : -10dBV (unbalanced)
Load impedance : 10kΩ or more
Headphones output [PHONES 1, 2]
Connectors : 1/4-inch, stereo phone type
Max. output power : 30mW or more (at 32Ω load)
Load impedance : 16Ω or more
MIDI output [MIDI OUT]
Connector : DIN 5-pin
Format : Conformed to the MIDI standard
Footswitch [FOOT SW]
Connector : 1/4-inch, phone type
Level : TTL level
USB (USB 2.0 HI-SPEED)
Connector : B type (standard)
USB HOST (USB 1.1)
Connector : A type (standard)
1
3
2
Pin assignment of XLR connectors
1 GND
2 HOT
3 COLD
Pin assignment of [USB] port
1 VBUS
2D-
3D+
Pin assignment of [USB HOST] port
4 GND
1
2
3
4
1
2
3
4
1 VBUS
2D-
3D+
4 GND
Specifications
[General]
Weight (net) : Approx. 1.6 kg
: AD-12A/ approx. 500g
Dimensions : 286 (W) x 220 (D) x 65 (H ) mm
Power requirements : DC12V, 400mA
Using the AC adaptor or six AA-
type alkaline batteries
Supplied Accessaries : Owner’s Manual, AC adaptor
* Changes in specifications and features may be made
without notice or obligation.
* The polarity of the supplied AC adaptor is center plus/
outer minus.
[Record / playback]
Recording medium : CompactFlash
TM
card
Sampling frequencies: 44.1kHz (Normal mode)
: 22.05kHz (LP mode)
Quantization : 16-bits, linear (non expanded)
File format : FAT16
The number of tracks : 8
* the number of simultaneously recordable tracks: 2
ADC : 24-bits, delta-sigma
DAC : 24-bits, delta-sigma
Frequency response : 20Hz to 20kHz
* Normal mode
Dynamic range : 87dB or more (TYPICAL)
* Normal mode
Total harmonic distortion : 0.05% or less (TYPICAL)
* Normal mode
