MR-8mkII Owner’s Manual (Names and functions)
10. [REC SELECT] keys
16. [TRIM] controls / [PEAK] indicators
Each control adjusts the input gain of the
corresponding input channel (see pages 36
and 38 ~ 44).
Each indicator lights when the input signal
is overloaded (see page 15). You should ad-
just the input gain using the [TRIM] control
so that the [PEAK] indicator does not light.
15. [DISTORTION] control
Controls the amount of the distortion effect
for a guitar connected to the [XLR] connec-
tor or [UNBAL/GUITAR] jack (phone type)
on the [INPUT A] channel.
This control is effective only when the [IN-
PUT A SELECT] switch is set to "GUITAR" (see
pages 36 and 38).
13. Insert effect selection keys
Used to select the insert effect (mic simula-
tion or amp simulation) for the signal from
the [INPUT A] jack.
When setting the [INPUT A SELECT] switch
on the rear panel to "MIC/LINE", you can
use the mic simulation effect. When setting
the switch to "GUITAR", you can use the
guitar amp simulation effect (see page 60).
12. [EFFECT SEND] controls
Control the amount of signals from tracks 1
through 4 sent to the internal effect (reverb
or delay) (see page 62).
11. [PAN] controls
Control panning for tracks 1 through 4.
Used to select the recording track(s). You can
record onto up to two tracks simultaneously.
Pressing a key arms or unarms the corre-
sponding track(s). Tracks 5/6 or 7/8 are
armed or unarmed simultaneously (see
pages 38 ~ 44).
Each fader adjusts the track playback level.
Each of track faders 5/6 and 7/8 controls
the stereo signal (see pages 38 ~ 44).
9. Track faders 14. Internal Microphone
You can make recording using the internal
microphone by setting the [INPUT A SELECT]
switch on the rear panel to “INT MIC” (see
page 36). When you use the internal micro-
phone, you cannot use the insert effect.

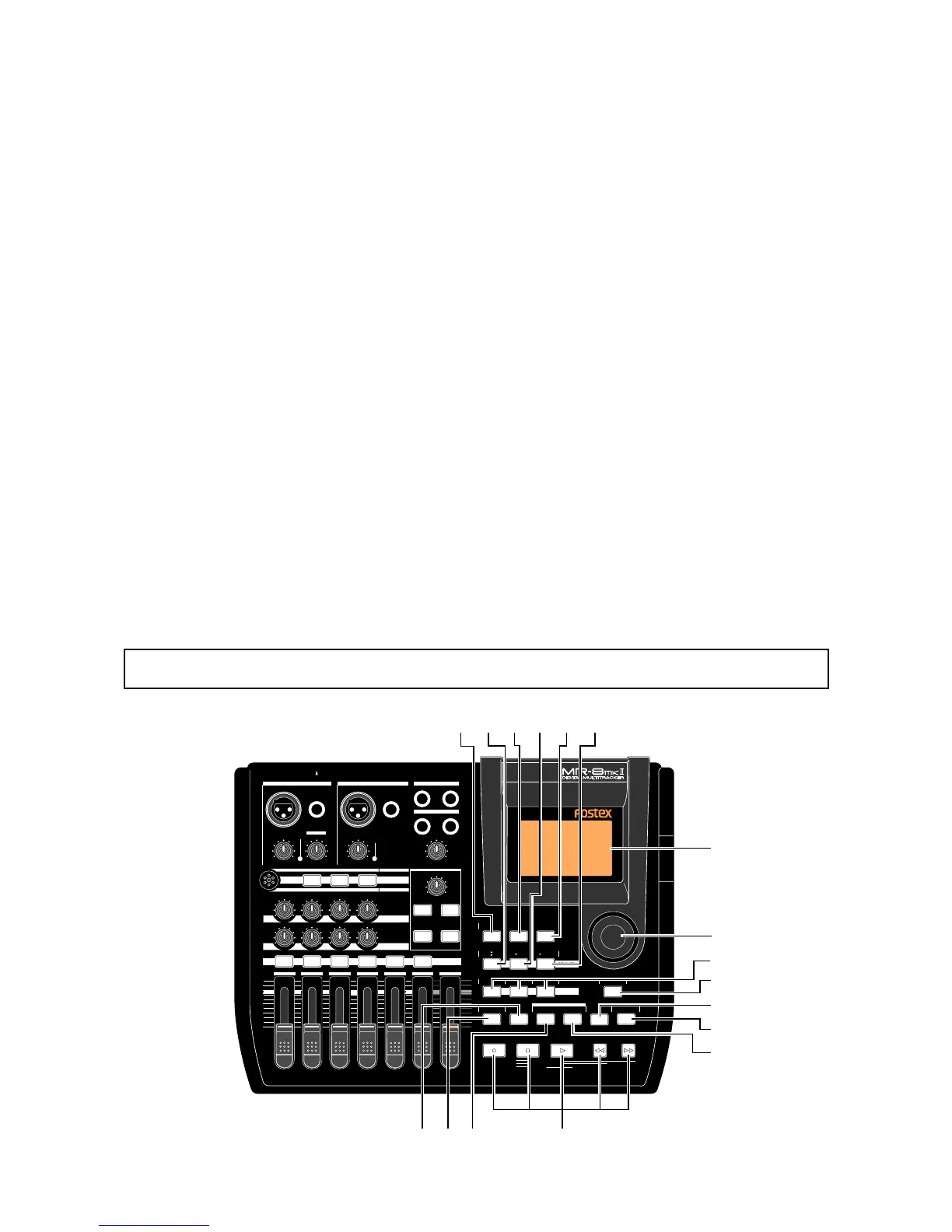

Top panel 2
MAX
MIN
MAX
MIN
REC SELECT
1 2 3 4 5/6 7/8 MASTER
RL
PAN
LR LR LR
010
EFFECT SEND
100100100
BRIT STACK US METAL 60'S COMBO
MIC
TUBECONDENSERDYNAMIC
INPUT A
LINE
MIC
MIN
MAX
LINE
MIC
DISTORTION
GUITAR
UNBAL
BAL
UNBAL
/GUITAR
PEAK
TRIM
TRIM
BAL
INPUT A INPUT B
PHONES VOL
L
ST OUT
R
2
PHONES
1
MIN
MAX
EFFECT
REVERB/DELAY TIME
MIN MAX
HALLROOM
PLATE DELAY
LOCATE REC END
A-B PLAY
LOCATE ABS ZERO
DELETE+-_0YZ9VWX8STU7
PLAYSTOPRECORD REWIND F FWD
PQR6
UNDO/REDO
PLAY MODE
STORE
A / IN B / OUT
LOCATE
MNO5JKL4
BRIGHTNATURALPOWERFUL
MENU/ENTER
MASTERING
GHI3DEF2ABC1
7/8
WAV FILE
STEREO
1-4
1-6
NEW
SONG
1-8
GUIDE
RHYTHM
CONTRAST
TIME BASE
SELECT
BOUNCE
INPUT A SELECT
AUTO PUNCH
5/6
7/8
AMP SIMULATION
MIC SIMULATION
PEAK
33
3231
30
29
28
27
26
25
24
23
22212019
17 18
