18

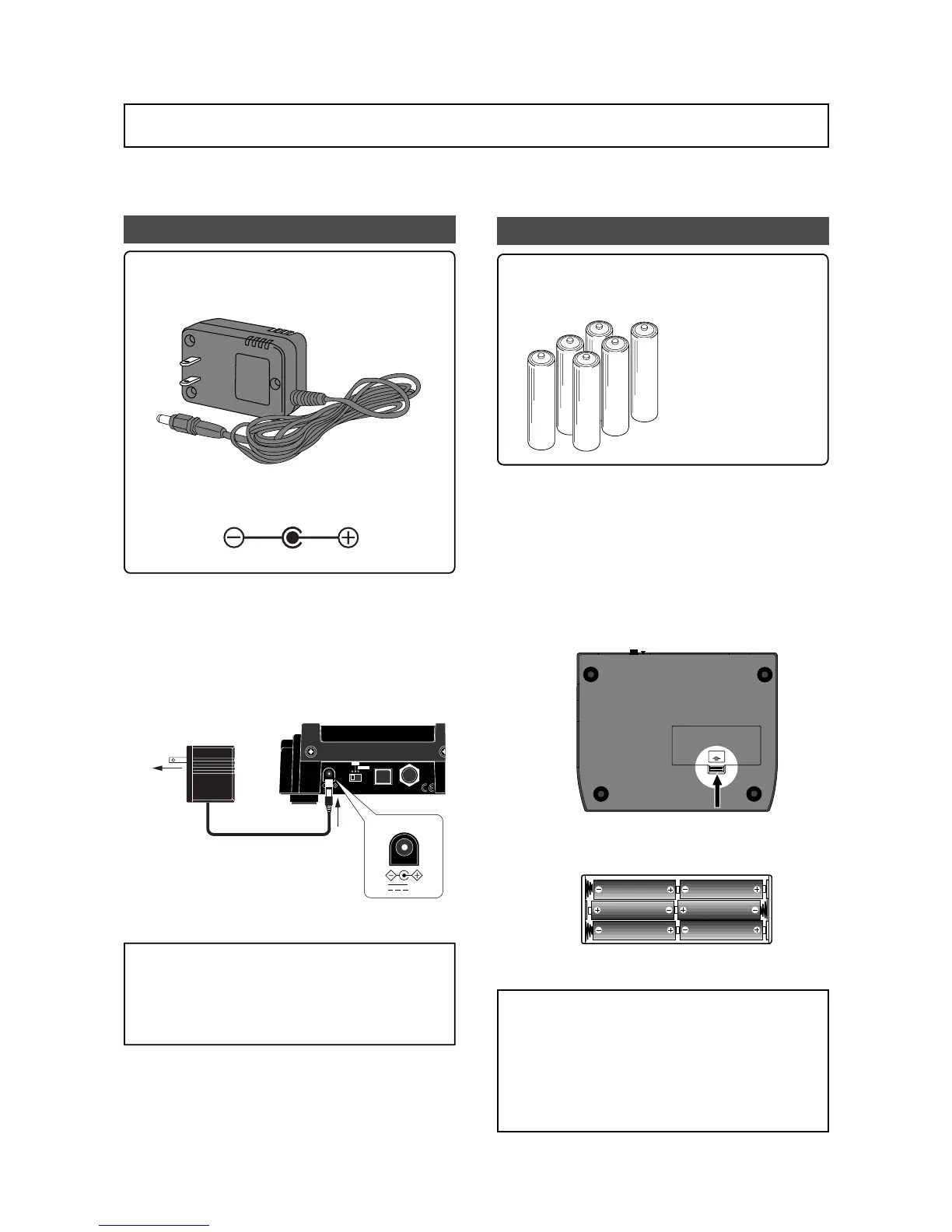

MR-8mkII Owner’s Manual (Preparation)
The MR-8mkII can run on the supplied AC adaptor (Model AD-12A) or alkaline batteries. When
preparing power supply, make sure that the MR-8mkII [POWER] switch is set to off.
The battery compartment is located on the bot-
tom of the MR-8mkII. Install batteries correctly
by following the procedure below.
<Note>:
No battery is supplied with the MR-8mkII.
Purchase 6 size AA alkaline batteries. Do not use
manganese batteries.
1) Place the MR-8mkII upside-down on a soft
surface (such as on a soft cloth).
2) Remove the battery compartment cover on the
bottom by pushing the tab in the direction of the
arrow in the figure below and lifting up the cover.
<Notes on batteries>
* Do not leave exhausted batteries in the battery
compartment. Old batteries may leak caustic
chemicals, which causes trouble of the unit.
We recommend removing batteries even if they
are new when you do not use the MR-8mkII for
a long period of time.
* Do not mix old and new batteries together.
3) Install batteries as shown below.
Make sure to install batteries in the correct
direction.
4) Place back the battery compartment cover to the
original position.
OPEN
Model AD-12A
[DC IN] connector
<Note>:
If you connect the AC adaptor to the MR-
8mkII while batteries are housed in the battery
box, the MR-8mkII runs on the AC adaptor. If you
disconnect the AC adaptor in this condition, the
MR-8mkII switches to run on batteries.
Preparation of power supply
Preparing the AC adaptor
Preparing batteries
<Important!>:
Use only the supplied AC adaptor.
Do not use an AC adaptor which has different volt-
age or polarity characteristics.
Connect the plug of the supplied AC adaptor to
the [DC IN] connector on the MR-8mkII rear
panel firmly.
After making connection above, connect the AC
adaptor to the AC outlet of appropriate voltage.
AC outlet
POWER USB FOOT SW
ON
DC IN
LIGHT
OFF
12V
DC IN
12V
The continuous usable
time is approximately four
hours. However, the ac-
tual usable time may dif-
fer depending on the con-
dition in which the MR-
8mkII is used.
The polarity of the supplied AC adaptor is cen-
ter plus/outer minus.
To Next Page
