MR-8mkII Owner
’s Manual (Specifications)
When using the bounce mode (1-4 > 5/6 mode)
When using the normal mode
DISTORTION
INPUT A
INPUT B
TRIM
TRIM
A/D
A/D
BAL
BAL
IN7
IN8
OUT7
OUT8
IN5
IN6
OUT5
OUT6
IN4
OUT4
IN3
OUT3
IN2
OUT2
IN1
OUT1
RECORDER
REC
SELECT
TRK 1 FADER
TRK 2 FADER
TRK 3 FADER
TRK 4 FADER
TRK 5/6 FADER
TRK 7/8 FADER
TRK 4 EFF
TRK 3 EFF
TRK 2 EFF
TRK 1 EFF
TRK 1 PAN
TRK 2 PAN
TRK 3 PAN
TRK 4 PAN
TO STEREO BUSS
L
R
EFF
REVERB / DELA
Y
REVERB / DELA
Y TIME
MASTER
FADER
MASTERING FX
ST OUT L
ST OUT R
INT MIC
SIMULA
TION
IN7
IN8
OUT7
OUT8
IN5
IN6
OUT5
OUT6
IN4
OUT4
IN3
OUT3
IN2
OUT2
IN1
OUT1
RECORDER
REC
SELECT
TRK 1 FADER
TRK 2 FADER
TRK 3 FADER
TRK 4 FADER
TRK 5/6 FADER
TRK 7/8 FADER
TRK 4 EFF
TRK 3 EFF
TRK 2 EFF
TRK 1 EFF
TRK 1 PAN
TRK 2 PAN
TRK 3 PAN
TRK 4 PAN
TO STEREO BUSS
L
R
EFF
REVERB / DELA
Y
REVERB / DELA
Y TIME
MASTER
FADER
MASTERING FX
ST OUT L
ST OUT R
DISTORTION
INPUT A
INPUT B
TRIM
TRIM
A/D
A/D
BAL
BAL
INT MIC
SIMULA
TION

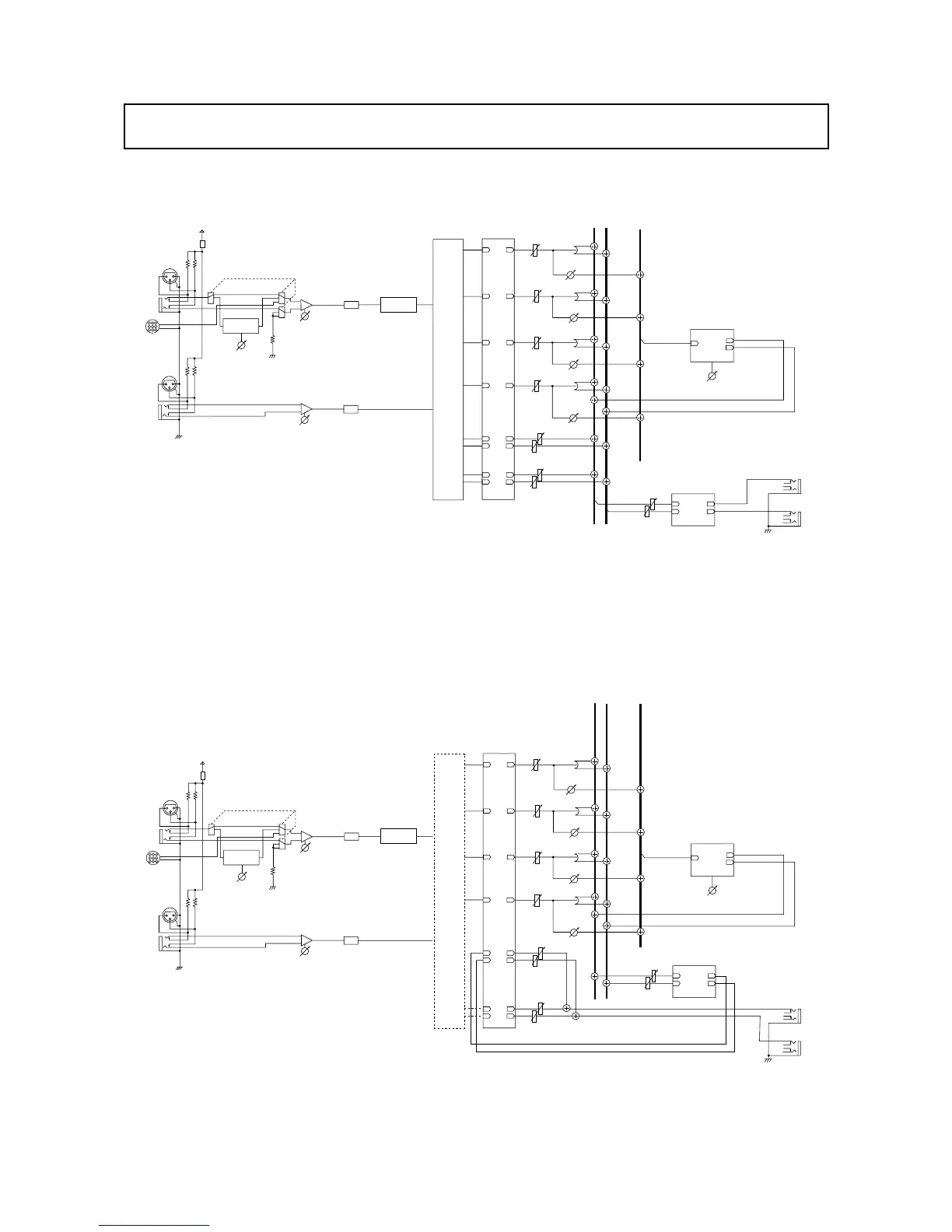

Bloc
k diagram
