Radial Probe Position - Moisture in the Gas or Condensation
The radial position of the meter may help reduce collection of moisture on the sensor. Condensing
liquids contacting the meter's sensing elements will disrupt accurate ow measurement. Fox Thermal
recommends the ow meter be used in dry gas conditions whenever possible for highest accuracy.
Contact Fox for further recommendations.

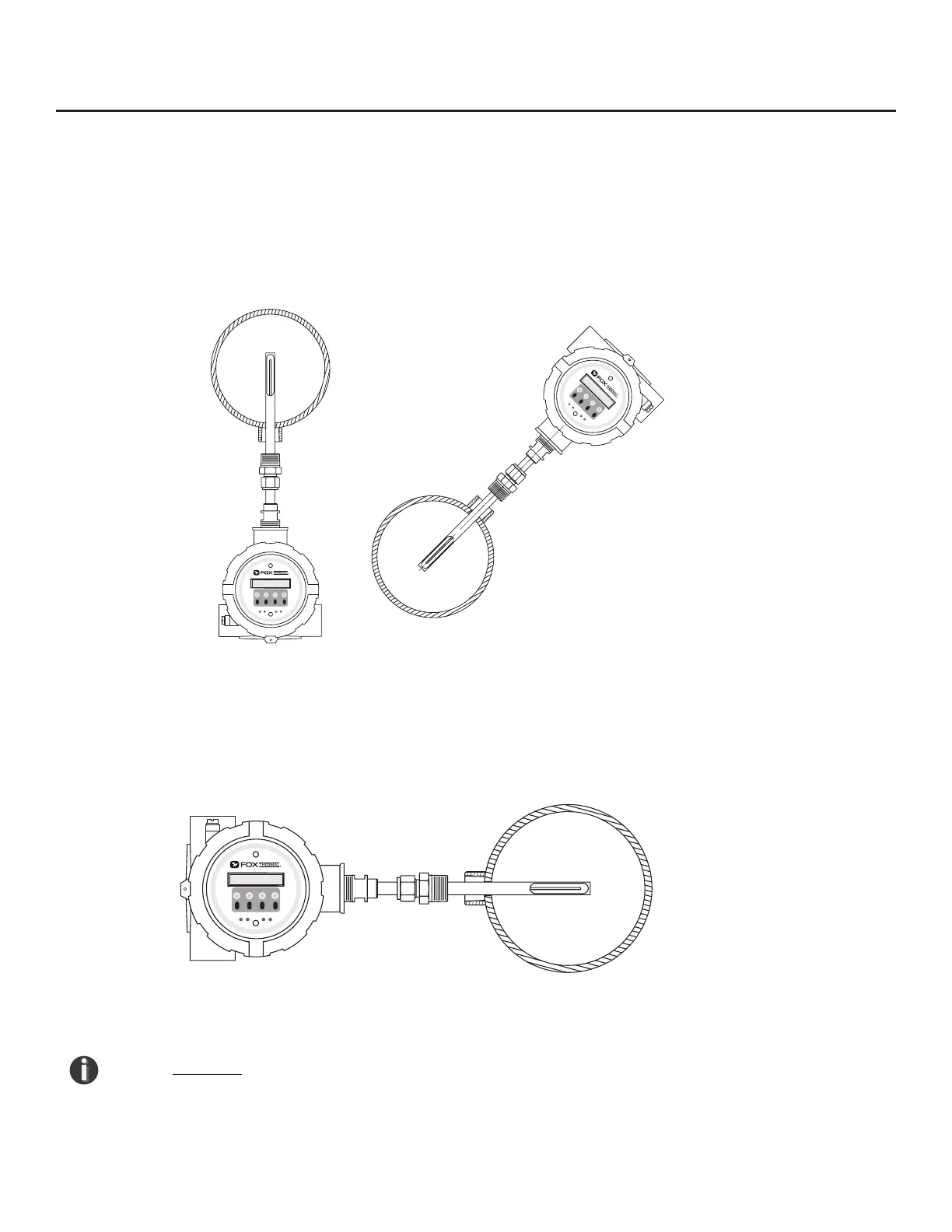

Fig. 2.2: Installation at 180° and 45°
Alternate Installations - Vertical Pipes or Restricted Installation Spaces
When restricted physical installation space exists, the FT3 can also be installed at other angles. Please
note that the display and the enclosure orientation can be rotated in 90º increments.
Fig. 2.3: Alternate Installation at 90° (CCW)
F1 F2
F3 F4
"D5/D6" Display Configuration Code
NOTE! Displays are rotatable only in 90° angle increments.
F1 F2
F3 F4
