Fox Thermal FT3 - Remote Switch

4-20
FLOW
4-20
#2
PULSE
/ALM
TS2
TS1
F1
J1
1
24V, 0.75A
2 3
IN
+1
-2
+3
-4
+5
-6
+7
-8
EXTERNAL
SWITCH
FT3
Customer PLC
or DCS

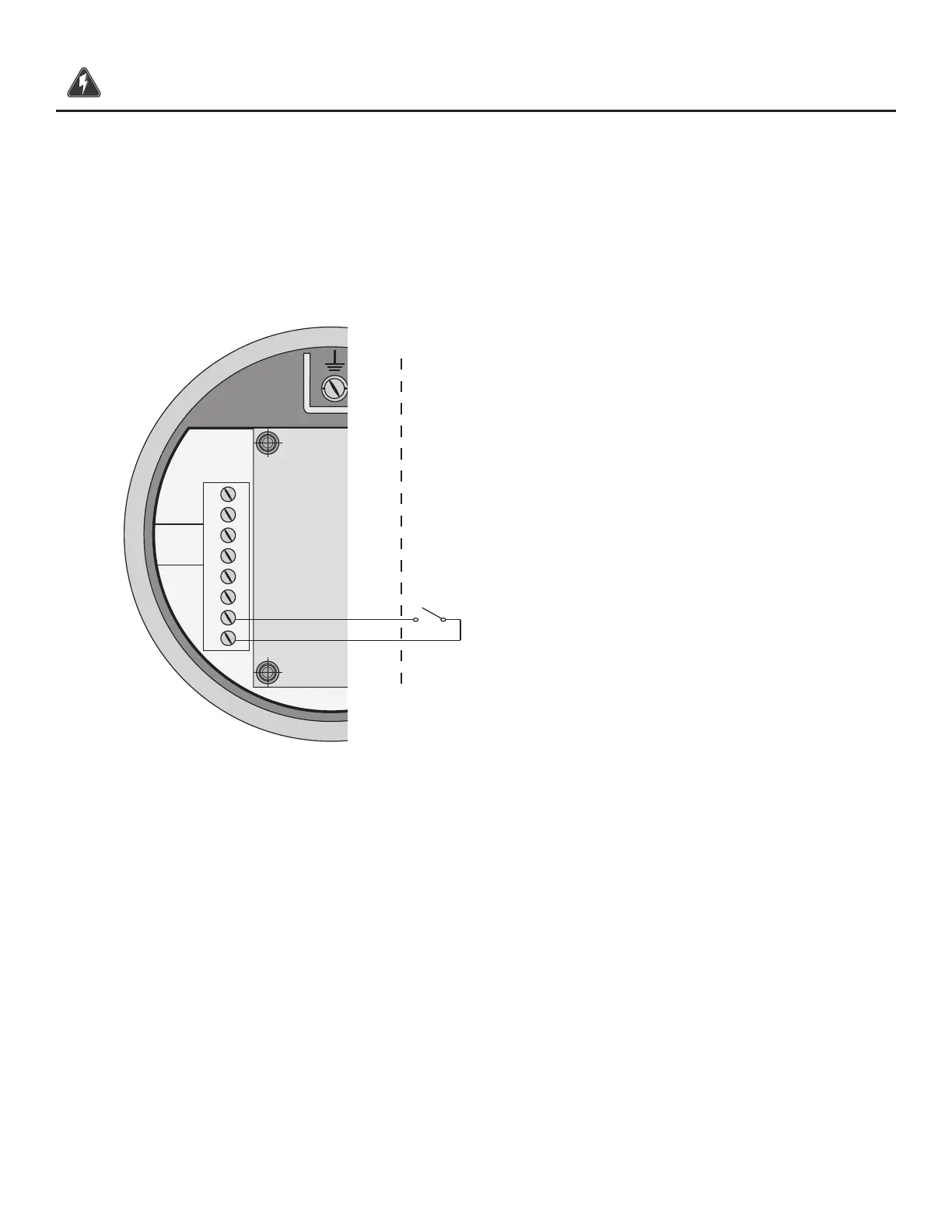

Remote Switch Wiring
A remote switch can be used to reset the Totalizer and elapsed time, if enabled in the programming
settings. There is no polarity requirement on these connections. Use TS2, 7(+) and 8(-).
When the 2 gas curve option is ordered, the switch can be used to switch between curves.
Fig. 3.10: Remote Switch Wiring
Wiring | 43
Model FT3
Wiring
