Fox Thermal FT3 - Retractor Installation

HEX NIPPLE
RETRACTOR
COMPRESSION
FITTING
RETAINING
RING
BRANCH WELD FITTING,
3/4" NPT, 316 SST
NUT & FERRULES
Installation of a New Retractor Assembly
1. Remove meter probe from retractor assembly and leave the ball valve open.
2. Install the valve assembly on the pipe, by tightening the Hex Nipple with a 1-1/16" wrench.

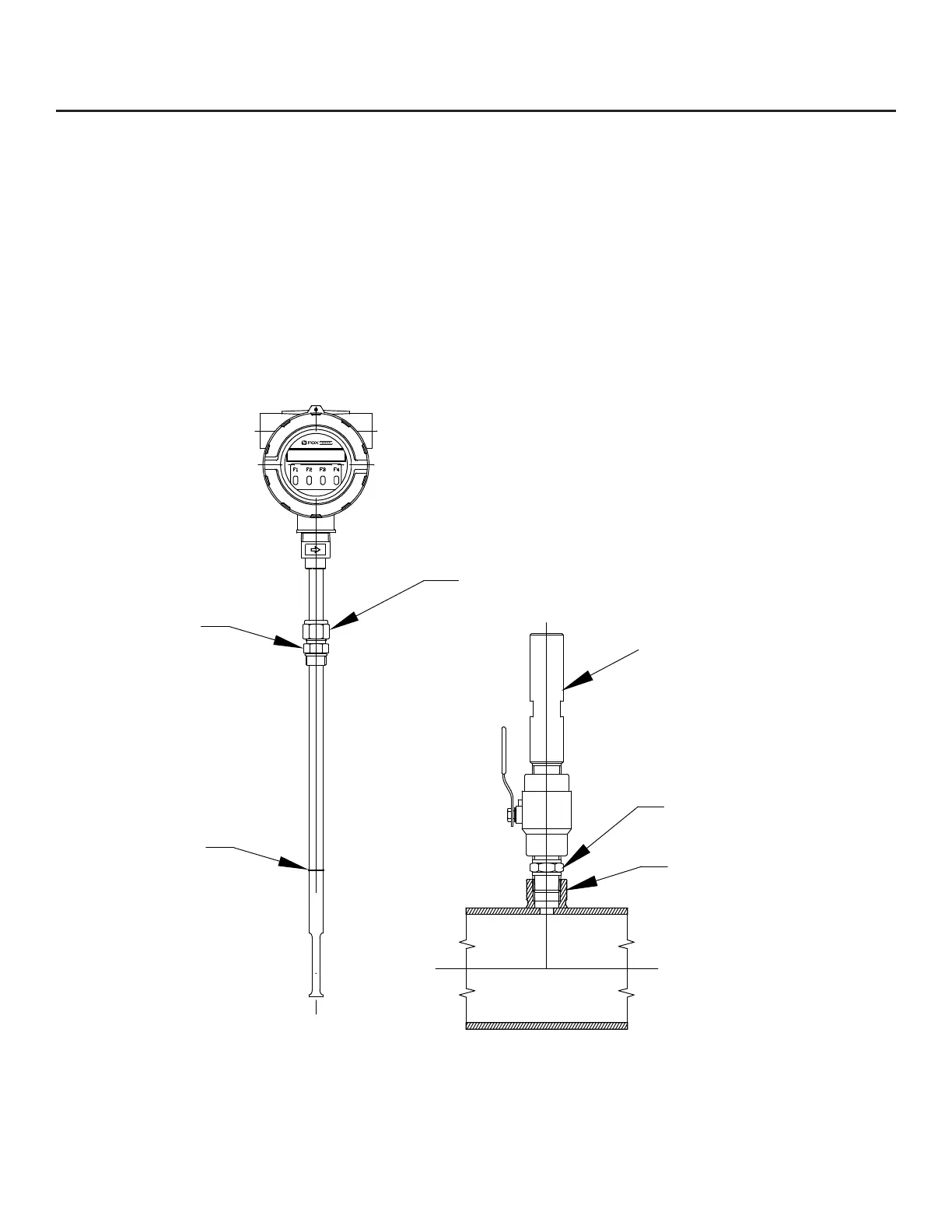

Fig. 2.11: Retractor Assembly Without Probe Installed
Installation | 29
Model FT3
Installation
