RETRACTOR
METER
3. Carefully slide the probe through the retractor assembly and through the hole to see if there is
interference by touching the pipe wall with the end of the probe on the far side or until the probe
cannot go deeper. Remove the probe. Remove the retractor and rework the hole, if required.

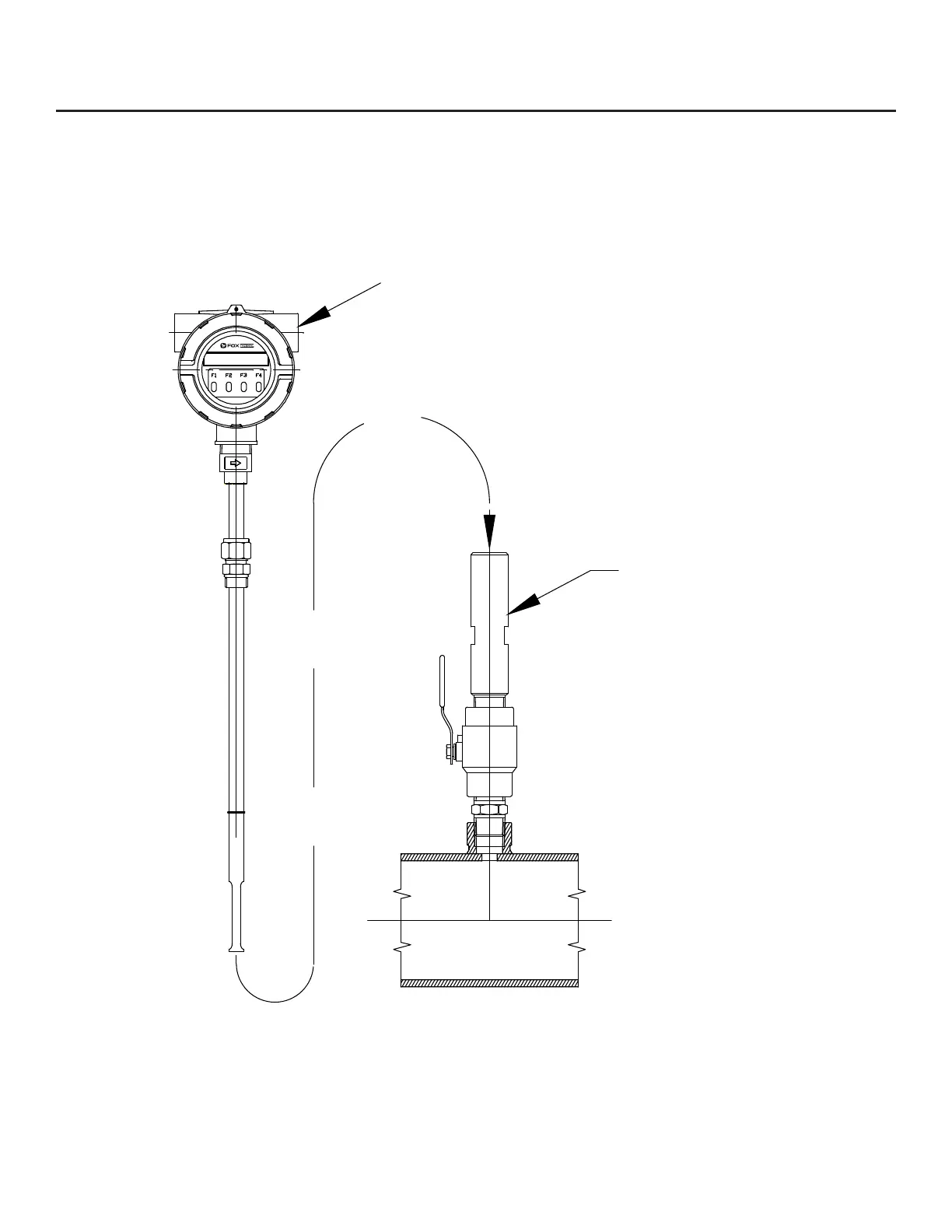

Fig. 2.12: Verify Probe Insertion
Installation | 30
