RETRACTOR CLEARANCE
CODE
15R
18R
24R
30R
36R
"RC" DIMENSION
27.3" (69.4 CM)
30.3" (77.0 CM)
36.3" (92.2 CM)
42.3" (107.4 CM)
48.3" (122.7 CM)
"RC"
RETRACTOR
CLEARANCE
MARK ON
PROBE
"L"
"D"
"D/2"
INSERTION
DEPTH
(L+D/2+.87")
.87" [22.1mm]
BRANCH WELD FITTING,
3/4" NPT, 316 SST
4. Using the equation (L + D/2 + 0.87") from Fig. 2.5, calculate the insertion depth and mark on the probe
while measuring from the end of the probe.
5. The Retractor Clearance table of Fig. 2.13 lists the space required to remove the meter from the
retractor. Use the model code of your meter to determine the dimension.

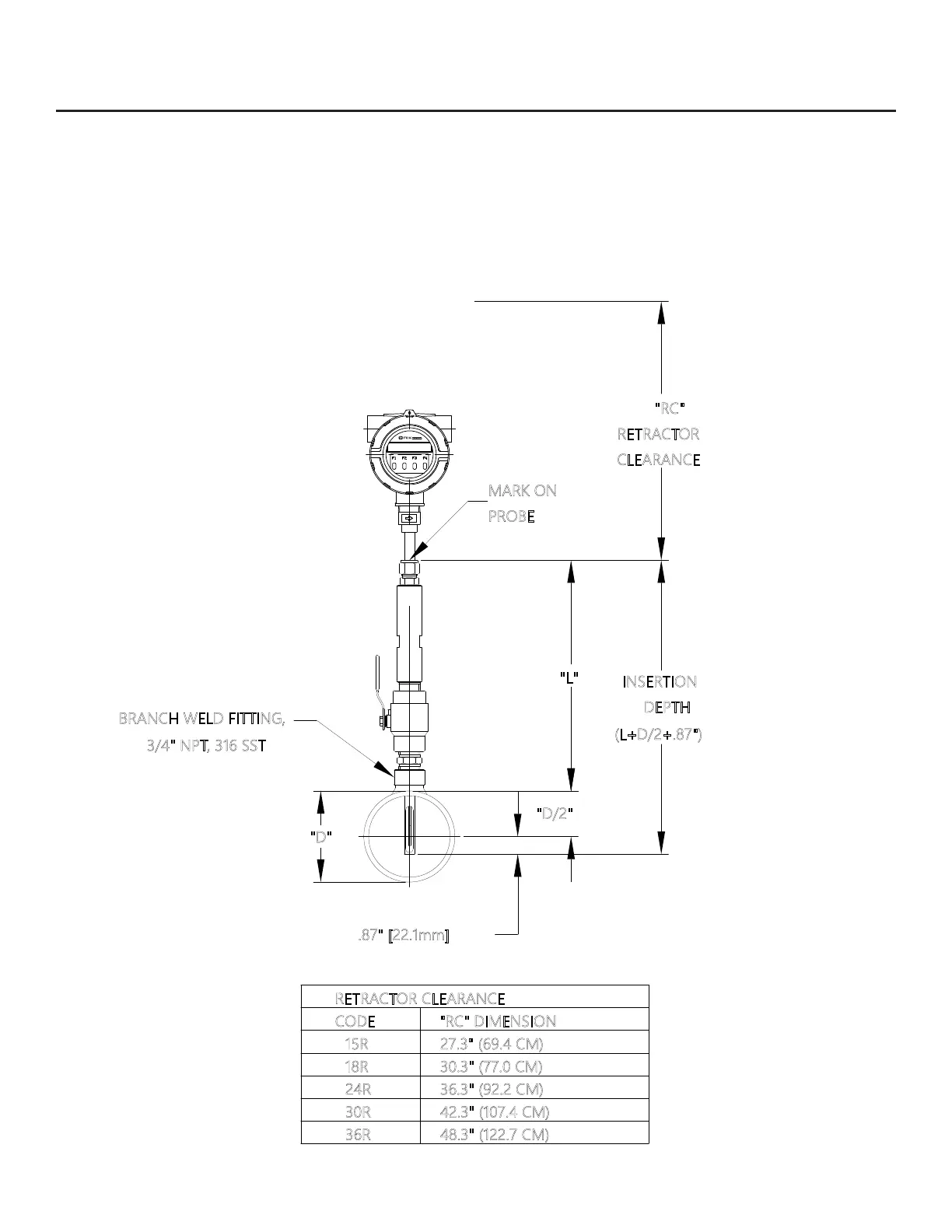

Fig. 2.13: Determining and Marking Insertion Depth
Installation | 31
Model FT3
Installation
