Fox Thermal FT3 - Power Input Requirements: 24 VDC

4-20
FLOW
TS4
24V
OUT
4-20
#2
Red 1
Red2
Yel 3
Wh 4
Wh 5
PULSE
/ALM
TS2
TS1
F1
J2
1
24V, 0.75A
2 3
IN
+1
-2 +1
-2
+3
-4
+5
-6
+7
-8
TS3
REMOTE
SENSOR
Earth Ground
24V Return
+24VDC
Earth Ground
Power Input Requirements: 24VDC
External DC power supply must provide 24VDC ± 10%, at 0.7 Amps minimum.
The enclosure must be properly grounded with a quality earth ground. Sixteen (16) gauge, stranded
wire, is recommended for power and earth ground.
For US and Canada Zones installations, the internal ground terminal on the enclosure must be used.
Use of the external ground terminal is optional.

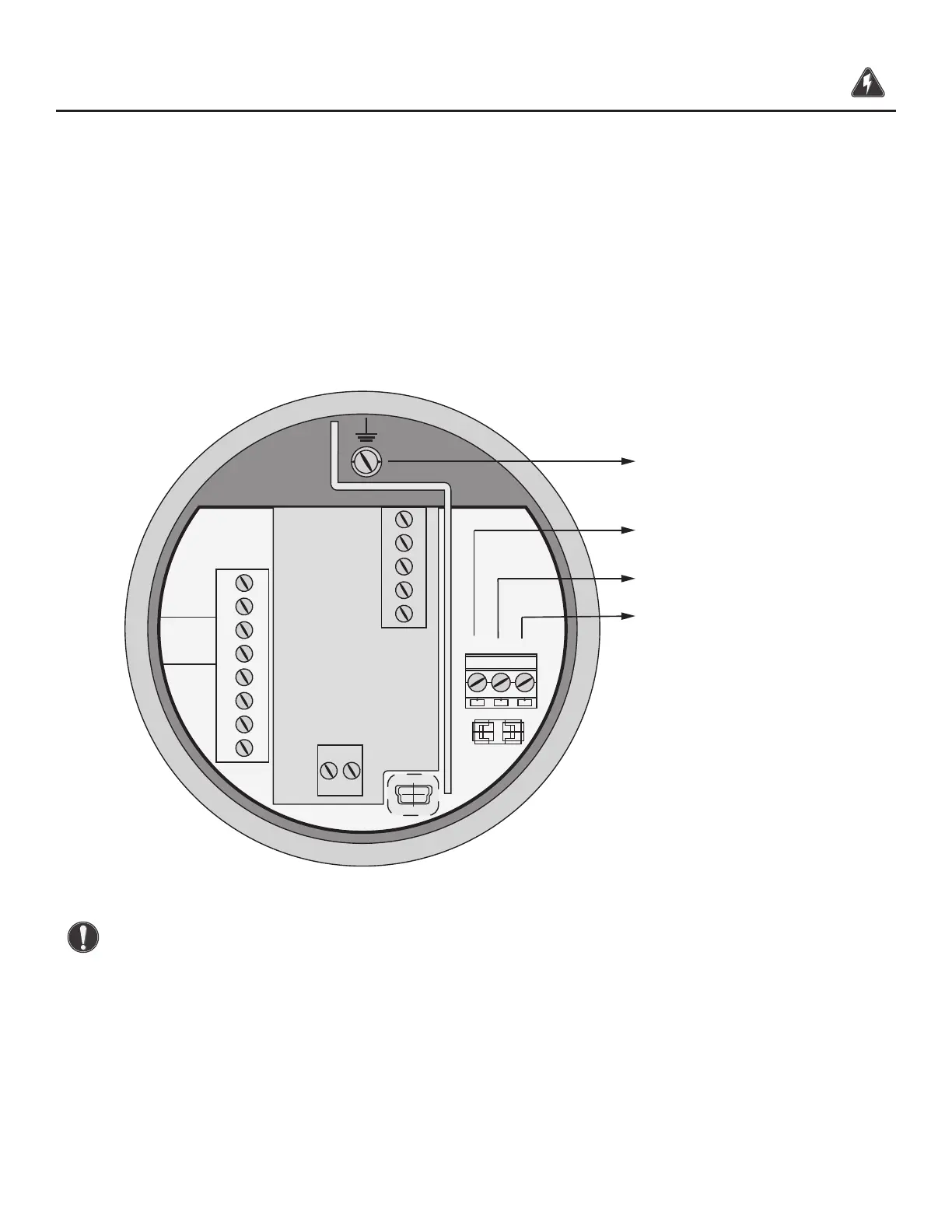

Fig. 3.3: Connections for 24VDC Supply
CAUTION! Supply connection wiring must be rated for at least 90°C.
Wiring | 36
Model FT3
Wiring
