4-20
FLOW
TS4
24V
OUT
4-20
#2
Red 1
Red2
Yel 3
Wh 4
Wh 5
PULSE
TS2
TS1
F1
J2
1
24V, 0.75A
2 3
IN
+1
-2 +1
-2
+3
-4
+5
-6
+7
-8
TS3
REMOTE
SENSOR
Earth Ground
AC (L)
AC (N)
Earth Ground
Power Input Requirements: 100 to 240VAC Supply
If the FT3 has the AC power supply option, the AC power must provide 100 to 240VAC -15% / +10%
(85 to 264VAC) at 0.2 Amps minimum.
The enclosure must be properly grounded with a quality earth ground. Sixteen (16) gauge, stranded
wire, is recommended.
For US and Canada Zones installations, the internal ground terminal on the enclosure must be used.
Use of the external ground terminal is optional.

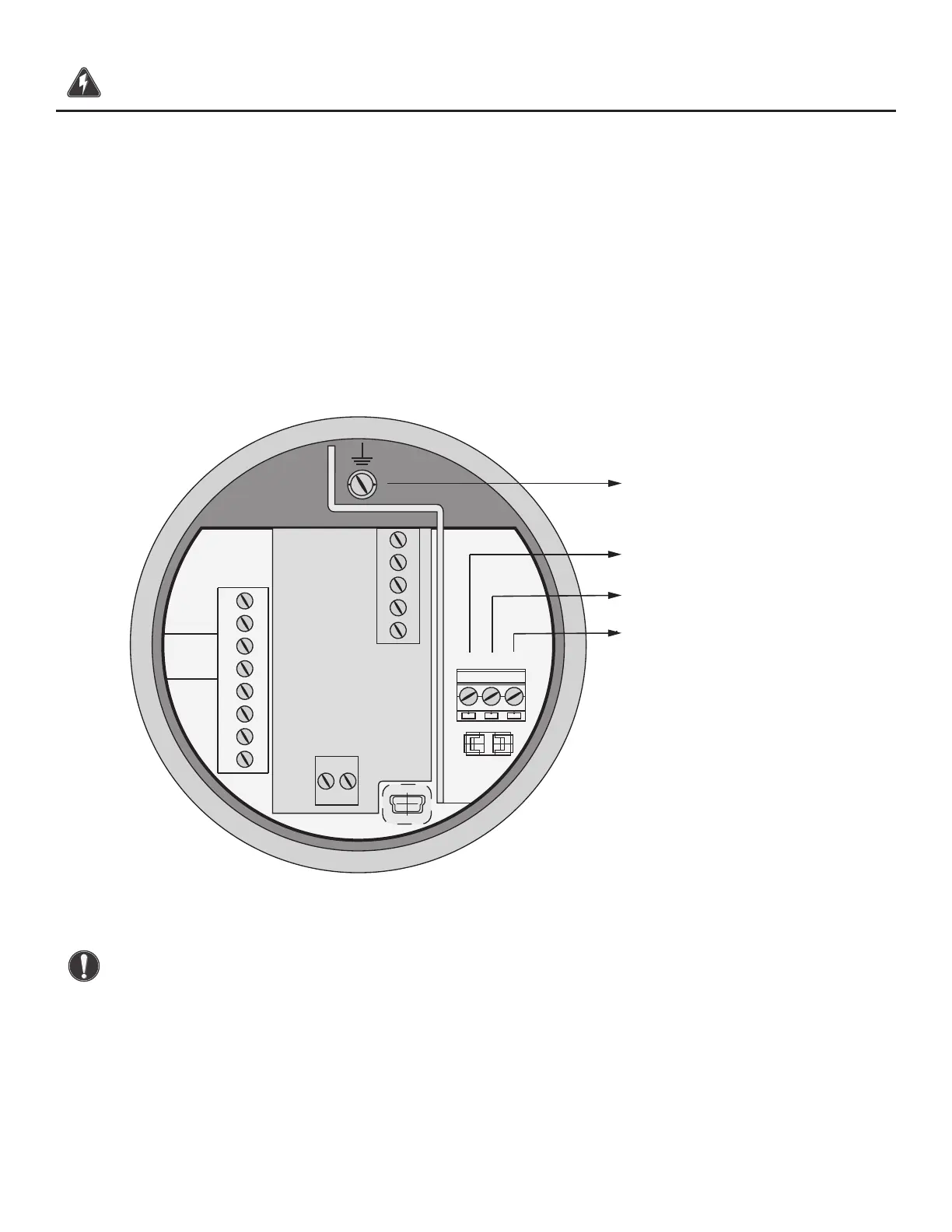

Fig. 3.4: Connections for optional AC Power
CAUTION! Supply connection wiring must be rated for at least 90°C.
Wiring | 37
Model FT3
Wiring
