Friedrich FPHW093B - Dimensions FAHFW09 A3 A, FAHFW12 A3 A; Dimensions FAHFW18 A3 A; Dimensions FAHFW24 A3 A

15 PB
SPECIFICATIONS
Dimensions FAHFW09A3A, FAHFW12A3A

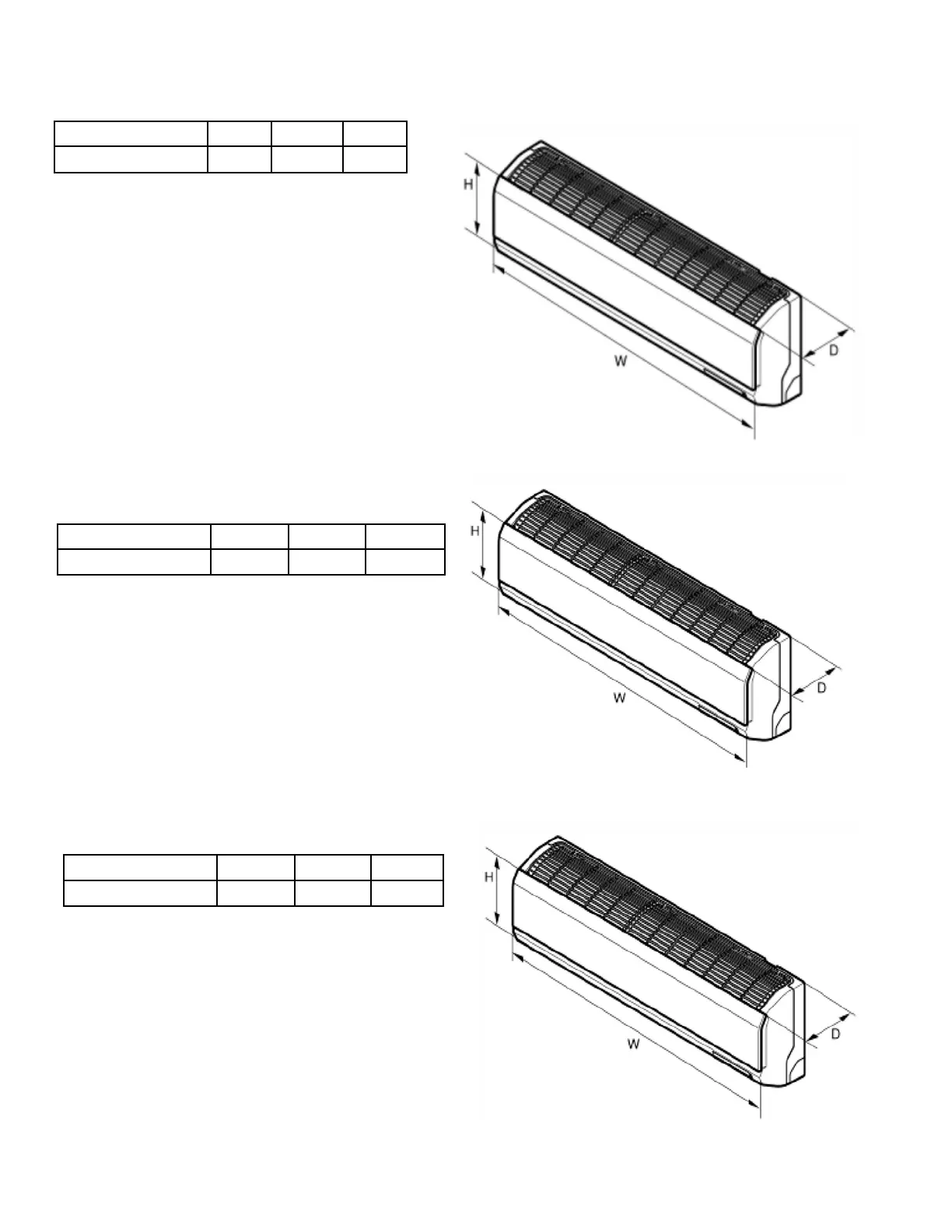

DIMENSIONAL DRAWINGS
INDOOR UNIT / FAHFW09A3A
INDOOR UNIT / FAHFW12A3A
W H D
FAHFW09A3A
33
7
/8"
11 3/16" 8 1/2"
W H D
FAHFW12A3A
33
7
/8"
11 3/16" 8 1/2"
Dimensions FAHFW18A3A,
DIMENSIONAL DRAWINGS
INDOOR UNITS / FAHFW18A3A
W H D
FAHFW12A3A 45 3/16" 13 1/8" 9 15/16"
W H D
FAHFW24A3A 45 3/16" 13 1/8" 9 15/16"
DIMENSIONAL DRAWINGS
INDOOR UNITS / FAHFW24A3A
DIMENSIONAL DRAWINGS
INDOOR UNITS / FAHFW18A3A
W H D
FAHFW12A3A 45 3/16" 13 1/8" 9 15/16"
W H D
FAHFW24A3A 45 3/16" 13 1/8" 9 15/16"
DIMENSIONAL DRAWINGS
INDOOR UNITS / FAHFW24A3A
Dimensions FAHFW24A3A,
Figure 204
Figure 205
Figure 206
