Friedrich FPHW093B - Indoor Unit Main PCB Terminal ID

82 PB
COMPONENTS TESTING

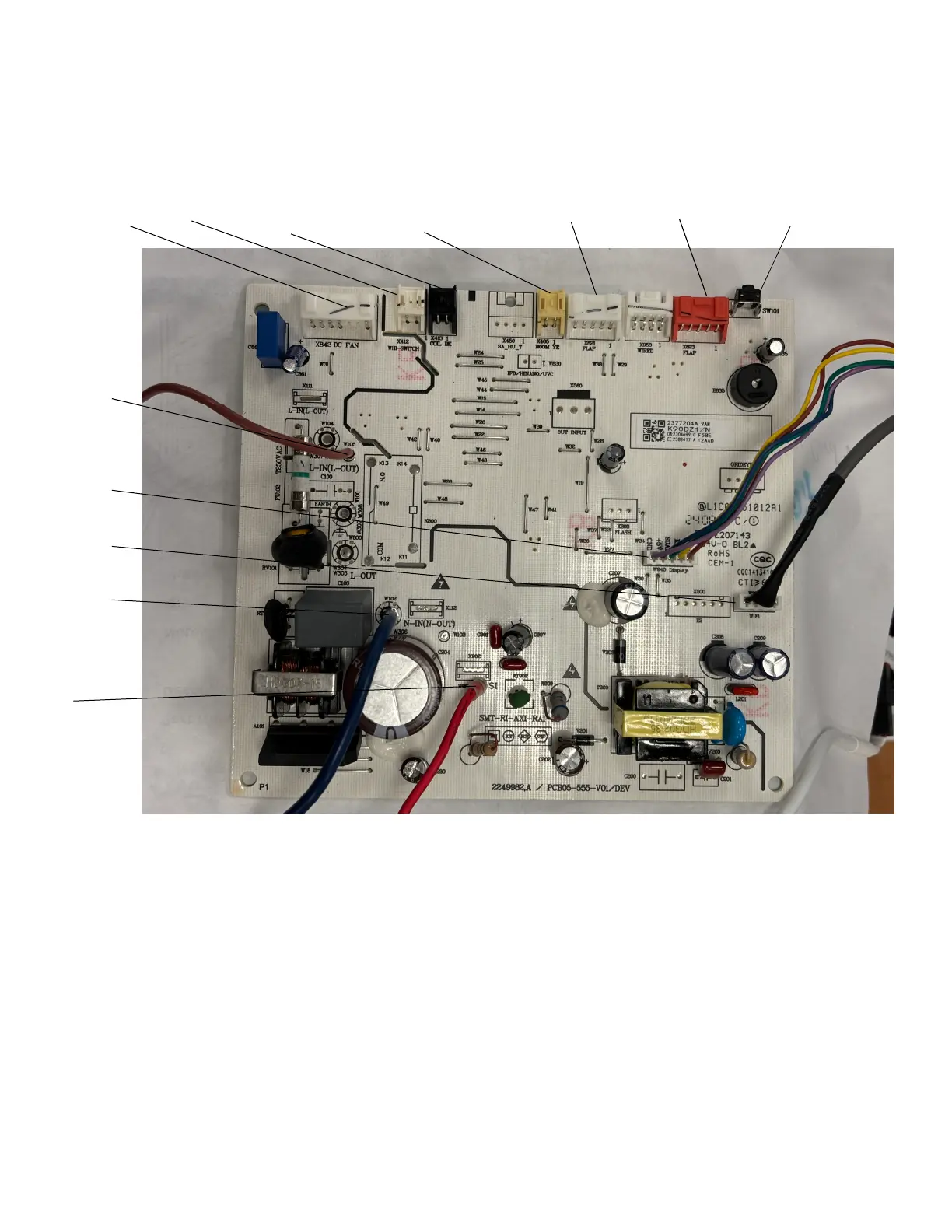

Indoor Unit Main PCB Terminal ID
L2 In/Out
switch input
Indoor Fan
Motor (X842)
Door Safety
Switch (X412)
Evaporator Coil
Temp Sensor
(X413)
Indoor Ambient
Temp Sensor
(X405)
Vertical Louver
(X821)
Horizontal Louver
(X823)
Display
(W940)
WiFi
(W950)
SI
L1/N
In/Out
Auto Start Switch
(SW 101)
